7.11 Operation in 7-point Type
Separate movement command inputs are provided for the target positions for position Nos. 0 to 6, so
simply turn ON the input signal corresponding to the position you wish to move the actuator to, and the
actuator will start moving.

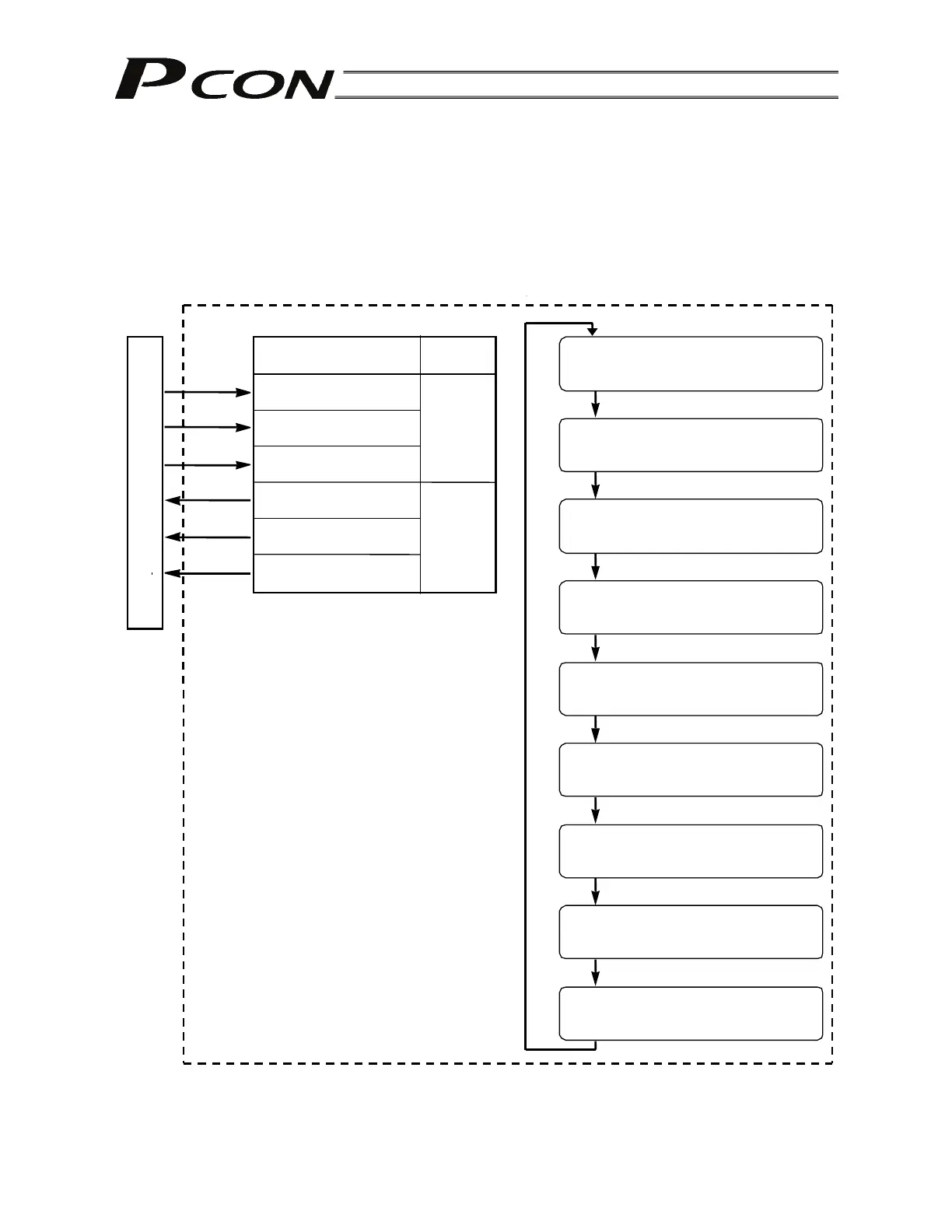

Example of use in operation) Move the actuator to position No. 0 (5 mm), position No. 1 (200 mm) and
position No. 2 (390 mm) in sequence.
Controller
[1] [4]
[4] [7]
[7] [1]
[3] [5]
[6] [8]
[9] [2]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
P
L
C
Signal name
Direct position command 0
Direct position command 1
Direct position command 2
Movement complete 0
Movement complete 1
Movement complete 2
Category
Input
Output
Reference flow
PIO
Direct position command 2 input turns OFF.
Direct position command 0 input turns ON.
Starts moving to position No. 0 (5 mm).
Movement complete 2 output turns
OFF.
Reaches position No. 0 (5 mm).
Movement complete 0 output turns ON.
Direct position command 0 input turns
OFF.
Direct position command 1 input turns ON.
Starts moving to position No. 1 (200
mm).
Movement complete 0 output turns OFF.
Reaches position No. 1 (200 mm).
Movement complete 1 output turns ON.
Direct position command 1 input turns
OFF.
Direct position command 2 input turns ON.
Starts moving to position No. 2 (390
mm).
Movement complete 1 output turns OFF.
Reaches position No. 2 (390 mm).
Movement complete 2 output turns ON.
