126
Zone boundary (1: No.1/2 ZONM/ZONL 2: No.23/24 ZNM2/ZNL2)
These parameters set the zone within which the zone output signal (ZONE1) turns ON when the selected
PIO pattern is “0” (standard type), “4” (7-point type) or “5” (3-point type).
The zone output signal turns ON when the current position is between the negative-side boundary and
positive-side boundary. Set the positive-side boundary in parameter No. 1, and negative-side boundary in
No. 2.
The minimum setting unit is “0.01 [mm].”

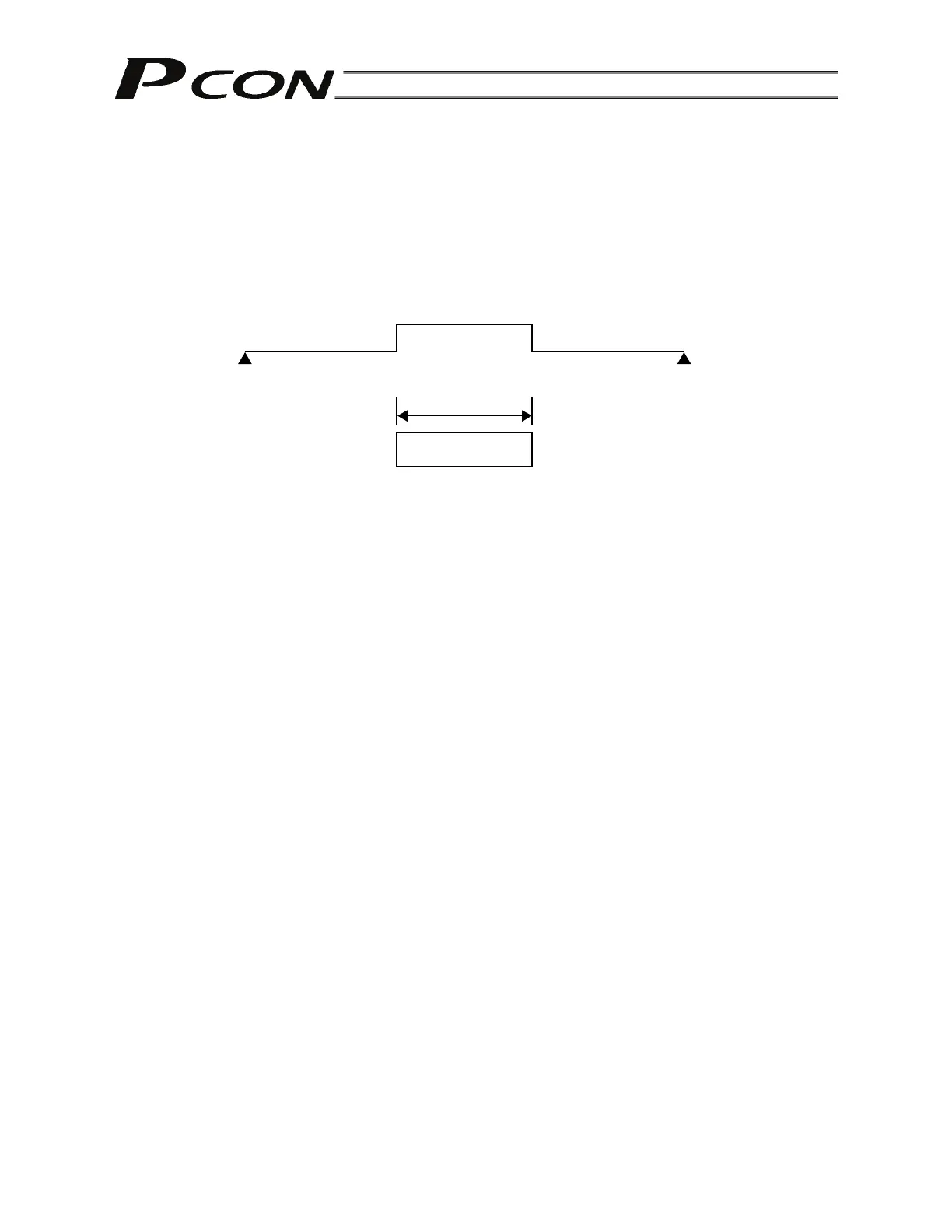

Example) To turn ON the ZONE1 signal when the actuator with a 300-mm stroke enters the section of
100 to 200 mm, set 200.00 in parameter No. 1 (Zone boundary+) and 100.00 in parameter No.
2 (Zone boundary-).
(Note) This controller does not use parameter No. 23 (Zone boundary 2+) and parameter No. 24 (Zone
boundary 2-).
0
(Home)
ZONE1 turns ON
100
200
300 mm
