 Default direction of excited-phase signal detection (No.28 PHSP)
When the servo is turned on for the first time after the power on, excited-phase detection is performed
This parameter defines the direction of this detection.
The parameter need not be changed in normal conditions. In certain situations, such as when the actuator
was contacting a mechanical end or obstacle when the power was turned on and cannot be moved by
hand, change the direction to one that allows the motor to operate smoothly.
To do so, set parameter No. 28 to “0” or “1.” If the detection direction should be the same as the home
return direction, specify the same value currently set in parameter No. 5 (Home return direction).
To set a direction opposite to the home return direction, specify the value different from the one currently
set in parameter No. 5 (Home return direction).

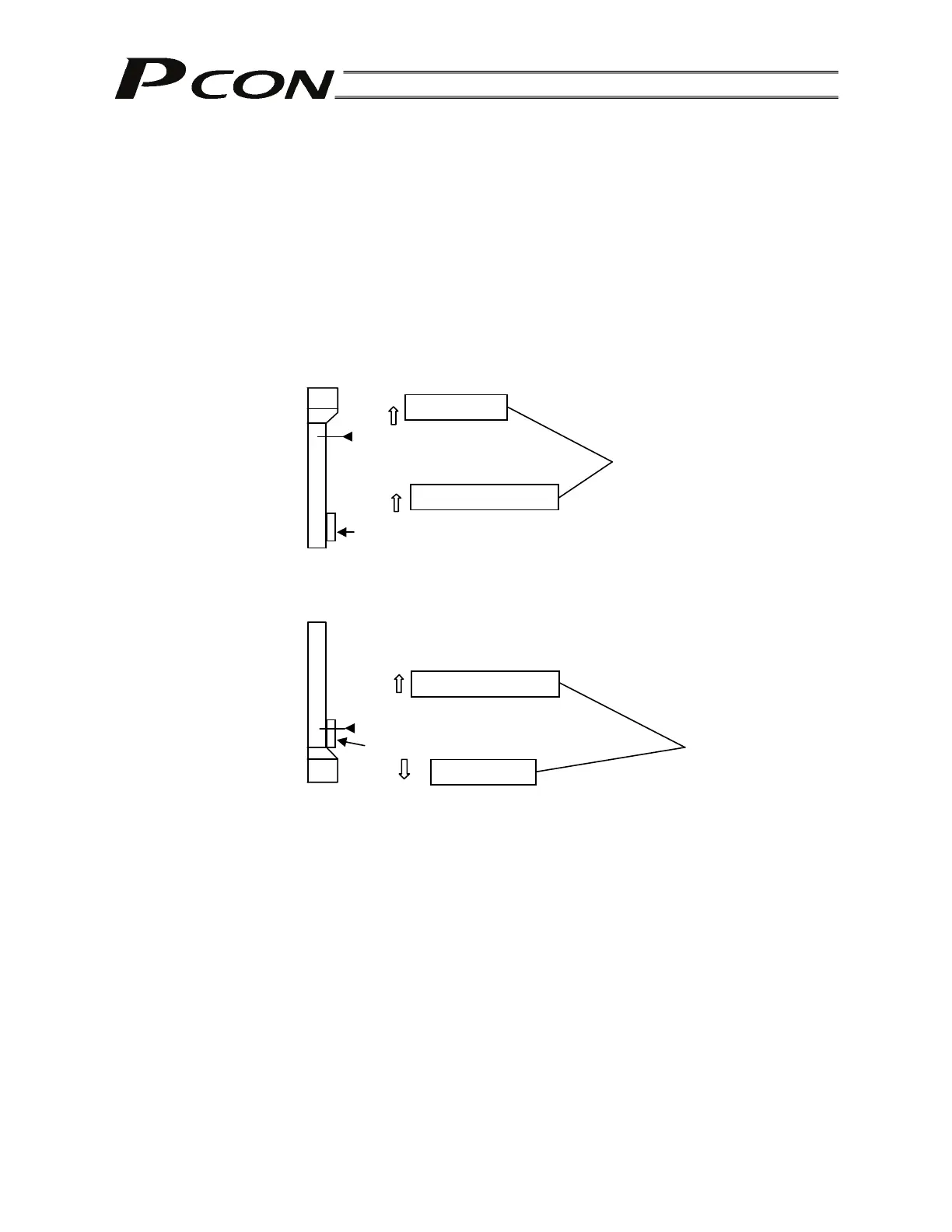

(Example 1) Power was turned on when the slider was contacting the bottom mechanical end in a
configuration where the actuator is installed vertically with the motor at the top.
(Example 2) Power was turned on when the slider was contacting the bottom mechanical end in a
configuration where the actuator is installed vertically with the motor at the bottom.
 Excited-phase signal detection time (No.29 PHSP)
When the servo is turned on for the first time after the power on, excited-phase detection is performed.
This parameter defines the time of this detection.
The parameter need not be changed in normal conditions, because a detection time appropriate for the
standard specification of the actuator has been set at the factory.
Should an excitation detection error or abnormal operation occur when the servo is turned on for the first
time after the power on, one remedial action that can be taken is to change the detection time set by
parameter No. 29.
If you wish to change this parameter, contact IAI beforehand.
 Safety speed (No.35 SAFV)
This parameter defines the feed speed to be applied during manual operation.
The factory setting is “100 [mm/sec].”
To change this speed, set an optimal value in parameter No. 35.
Take note that the maximum speed is limited to “250 [mm/s]” and that you should set a speed not
exceeding this value.
Top
Bottom
Home position
Home return
direction
Direction of excited-
phase signal detection
Set the same value.
The slider is contacting the bottom mechanical end.
Top
Bottom
Home position
Home return
direction
Direction of excited-
phase signal detection
Set different values.
The slider is contacting the bottom mechanical end.
