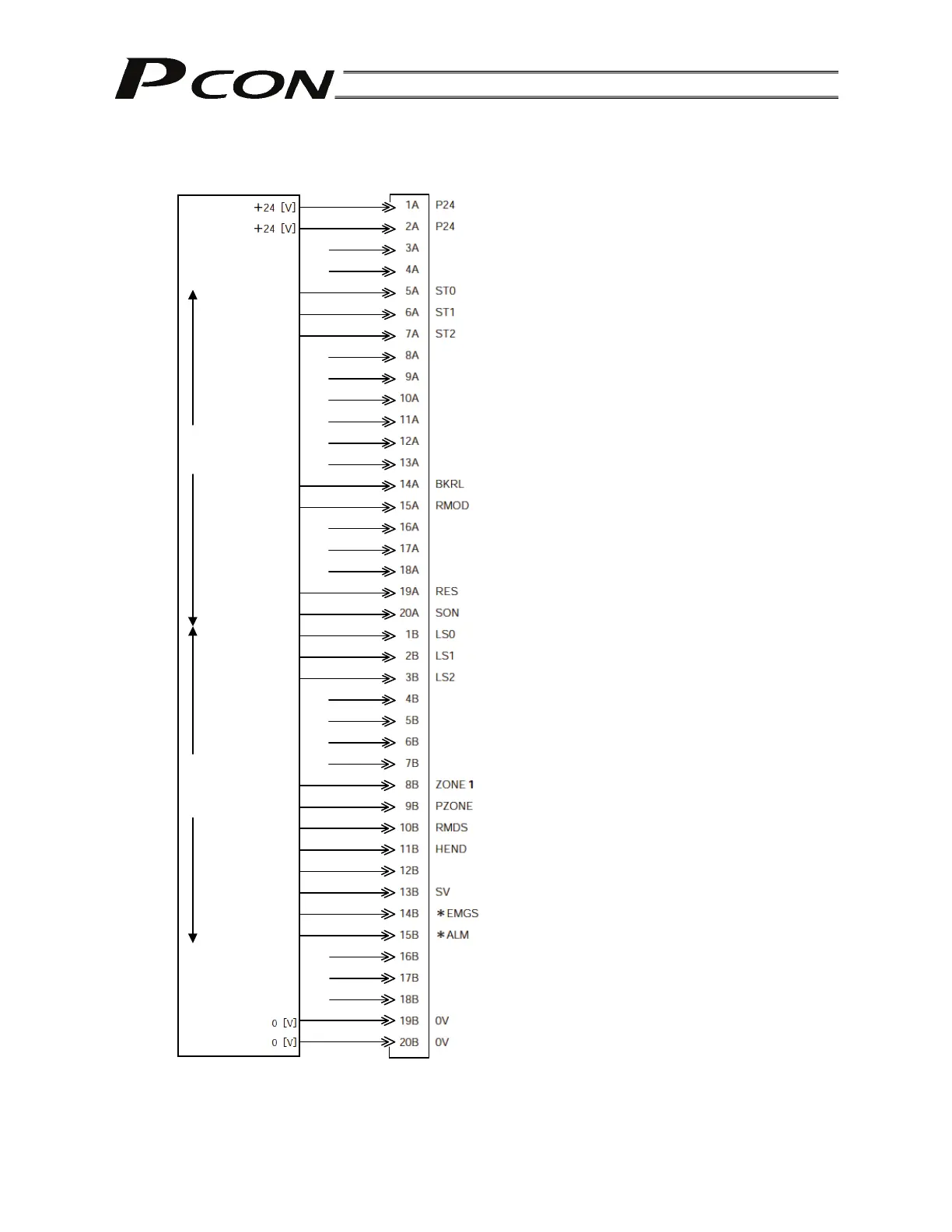

PIO pattern 5 [Solenoid valve mode 2]
PIO
Output side
Rear end move
Front end move
Intermediate point move
Brake release
Operating mode
Alarm reset
Servo ON
Rear end detected
Front end detected
Intermediate point
detected
Zone output
Position zone output
Operating mode status
Home return completion
Ready
Emergency stop
Alarm
Input side
Host system <PLC> end
Brown 1
Red 1
Orange 1
Yellow 1
Green 1
Blue 1
Purple 1
Gray 1
White 1
Black 1
Brown 2
Red 2
Orange 2
Yellow 2
Green 2
Blue 2
Purple 2
Gray 2
White 2
Black 2
Brown 3
Red 3
Orange 3
Yellow 3
Green 3
Blue 3
Purple 3
Gray 3
White 3
Black 3
Brown 4
Red 4
Orange 4
Yellow 4
Green 4
Blue 4
Purple 4
Gray 4
White 4
Black 4
Upper
stage
Lower
stage
Controller end
(signal abbreviation)
(Note) *STP, *ALM and *EMGS are based on the negative logic.
