IAI PCON-C - RA4 C Type; RA6 C Type

64
(3) RA4C type (4) RA6C type
Caution: The precision of push force at standstill is not guaranteed. The above graphs are provided
for reference purposes only. If the push force is too small, malfunction may occur during
push & hold operation due to slide resistance, etc., so exercise caution.
The maximum current-limiting value is shown in the above graphs. The minimum value is
20%.

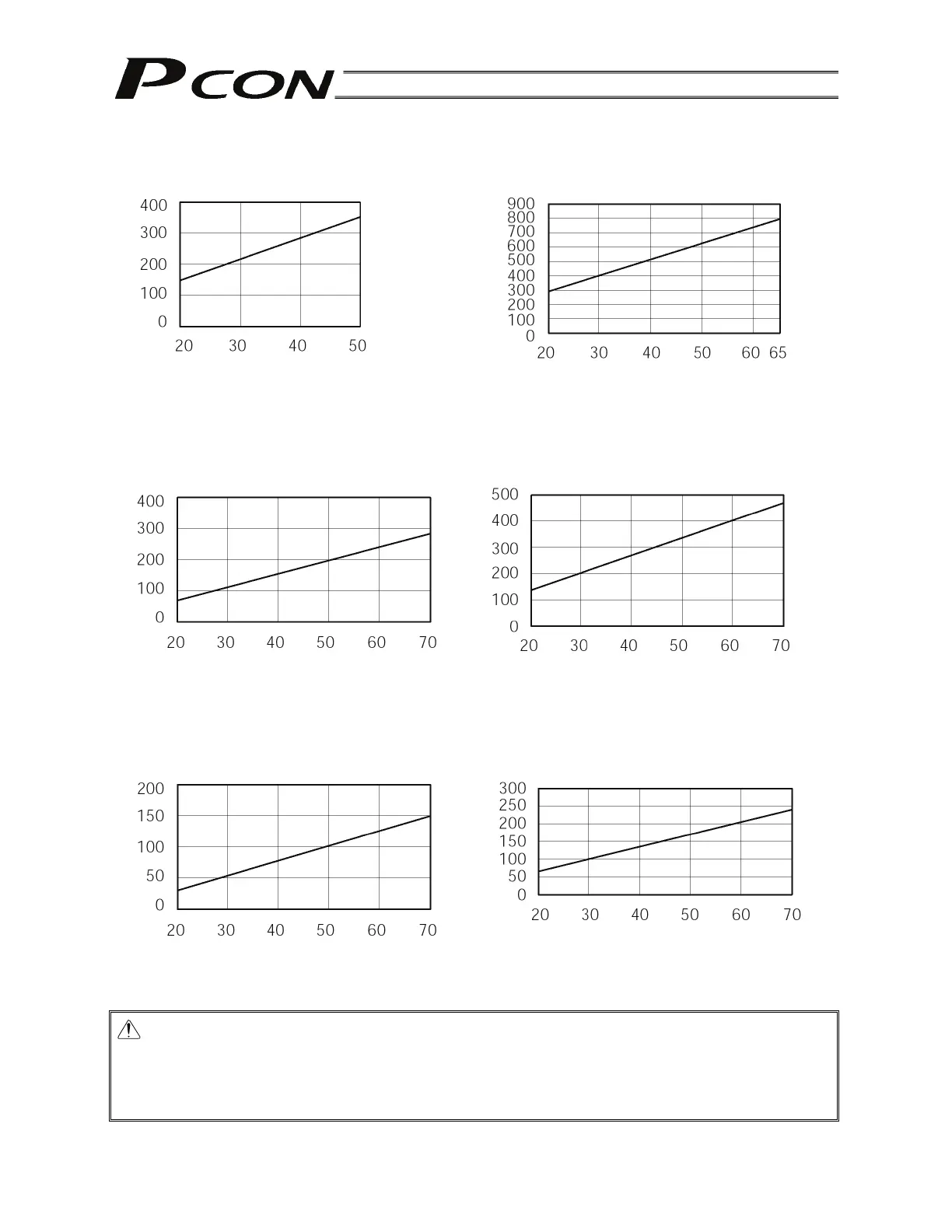

Current-limiting value (%)
Push force (N)
Low-speed type
(Lead: 4 mm)
Low-speed type
(Lead: 2.5 mm)
Push force (N)
Current-limiting value (%)
Current-limiting value (%)
Push force (N)
Medium-speed type
(Lead: 8 mm)
Medium-speed type
(Lead: 5 mm)
Push force (N)
Current-limiting value (%)
Current-limiting value (%)
Push force (N)
High-speed type
(Lead: 16 mm)
High-speed type
(Lead: 10 mm)
Current-limiting value (%)
Push force (N)
