6.3 Notes on the ROBO Gripper
(1) Finger operation
[1] Definition of position
The specified stroke of the 2-finger type indicates the sum of travel distances of both fingers. In
other words, the travel distance of one finger is one half the specified stroke.
A position you specify defines the distance traveled by one finger from the home position in the
closing direction.
Accordingly, the maximum command value is 5 mm for the GRS type and 7 mm for the GRM type.
[2] Definition of speed and acceleration
The command value applies to each finger.
The relative speed and acceleration of the 2-finger type are twice the command values.
[3] Operation mode in gripper applications
When the actuator is used to grip the load, be sure to select the “push & hold mode.”
(Note) In the “positioning mode,” a servo error may occur while the load is gripped.

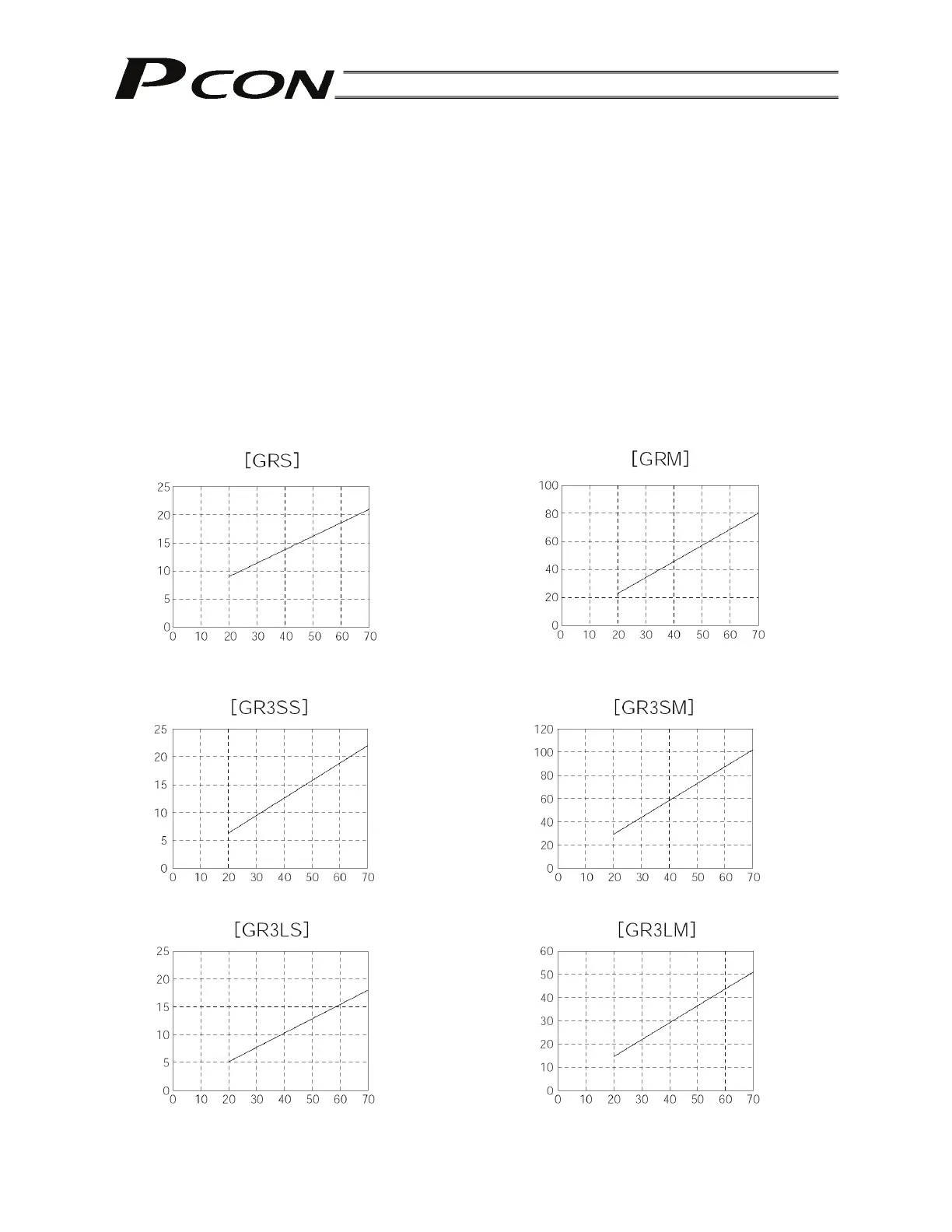

[Diagrams of gripping force and current-limiting value]
Current-limiting value (ratio in %) Current-limiting value (ratio in %)
Gripping force (N)
Gripping force (N)
Current-limiting value (ratio in %) Current-limiting value (ratio in %)
Gripping force P (N)
Gripping force P (N)
Current-limiting value (ratio in %) Current-limiting value (ratio in %)
Gripping force P (N)
Gripping force P (N)
