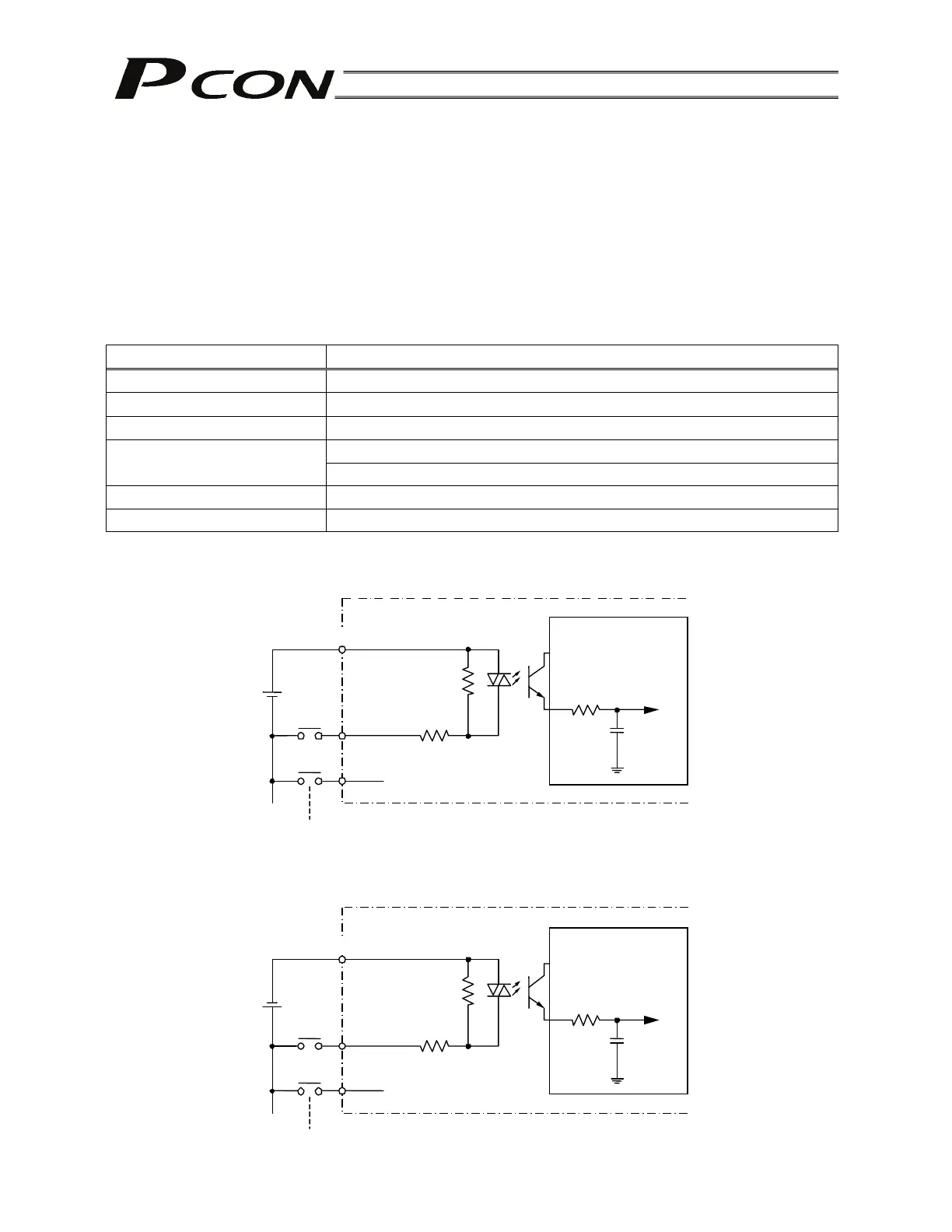

5. I/O Signal Control and Signal Functions
5.1 Interface Circuit
The standard interface specification of the controller is NPN, but the PNP specification is also available as
an option.
To prevent confusion during wiring, the NPN and PNP specifications use the same power line
configuration. Accordingly, there is no need to reverse the power signal assignments for a PNP controller.
5.1.1 External Input Specifications
Item Specification
Number of input points 16 points
Input voltage
24 VDC  10%
Input current 5 mA/point
ON voltage: Min. 18 V (3.5 mA)
Operating voltage
OFF voltage: Max. 6 V (1 mA)
Leak current 1 mA or less/point
Insulation method Photocoupler
Internal circuit configuration
[NPN specification]
[PNP specification]
Controller
Controller
External power supply
Each input
External power supply
Each input
Internal circuit
Internal circuit
P24V
N
