173
Appendix

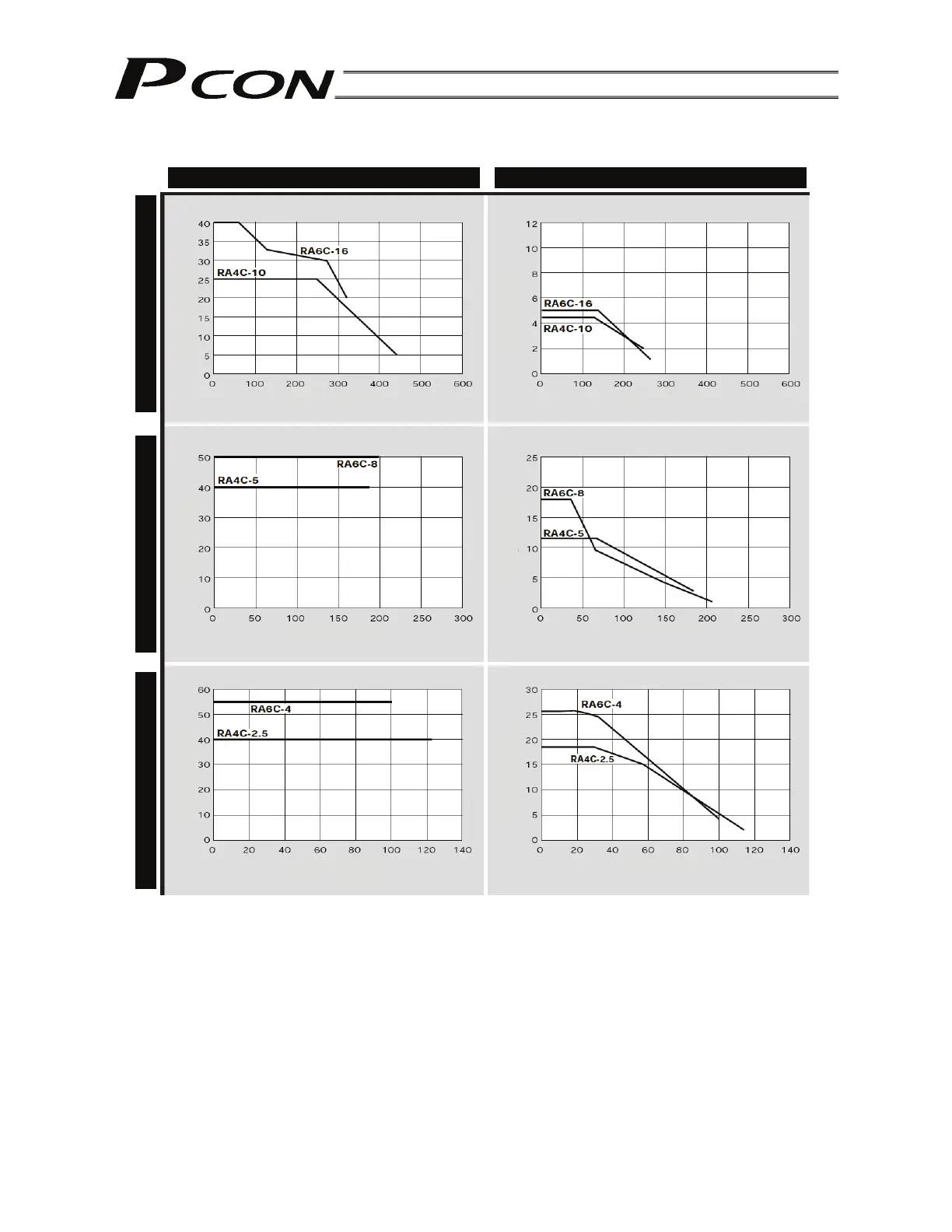

 Correlation diagram of speed and load capacity for the dustproof/splash-proof type
(Note) In the above graphs, the number after the type code indicates the lead.
(Note 1) The figures for horizontal installation assume use of an external guide.
(Note 2) Use of the actuator at the maximum load capacity corresponding to the applicable speed may cause
vibration/overshooting. Select an appropriate model that provides an allowance of approx. 70%.
Horizontal installation (Note 1) Vertical installation (Note 2)
High-speed type Medium-speed type Low-speed type
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
