CAUTION
Changes to Zone Function
Applicable application versions: V0016 and later
Among the zone signal settings, those that result in “Zone setting+ < Zone setting-” are now effective.
V0015 and earlier: “Zone setting+ Zone setting-” A zone signal is not output.
V0016 and later: “Zone setting+ = Zone setting-” This is the only condition in which a zone signal is not
output.
Accordingly, you can now output a zone signal even when a rotary actuator is operated over the 0
position in the index mode.

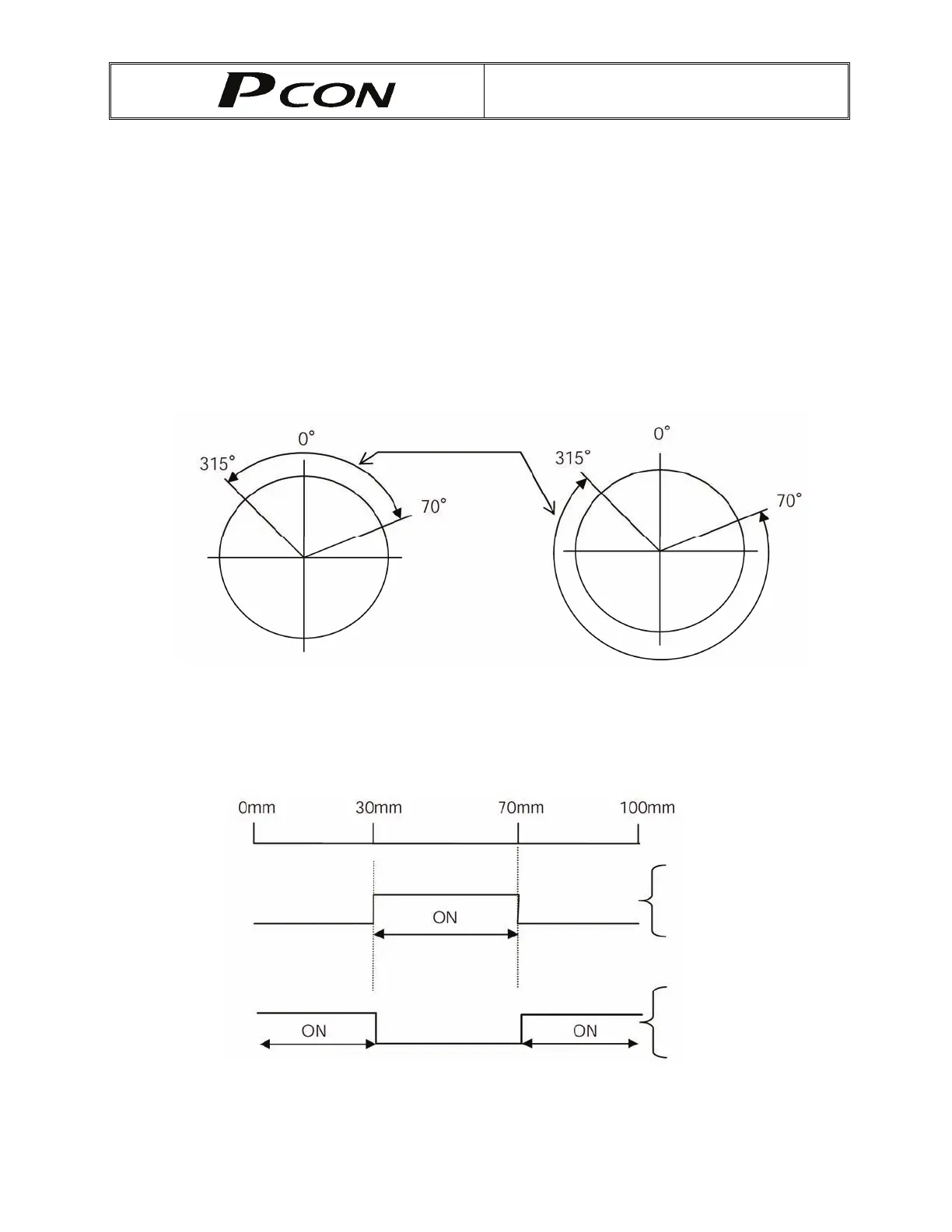

An example is given below.
[Rotary actuator in index mode]
Set value Set value
Zone setting+: 70 Zone setting+: 315
Zone setting-: 315 Zone setting-: 70
[Linear axis]
Current position
Zone signal output
Zone signal output
Zone signal ON range
Set value
Zone setting+: 70 mm
Zone setting-: 30 mm
Set value
Zone setting+: 30 mm
Zone setting-: 70 mm
