IBM 4820 - Infrared Touch (Powered)

Touch (powered)
A EIA-232 touch (host)
B 12vdc power(host)
C EIA-232 touch/power (4820)

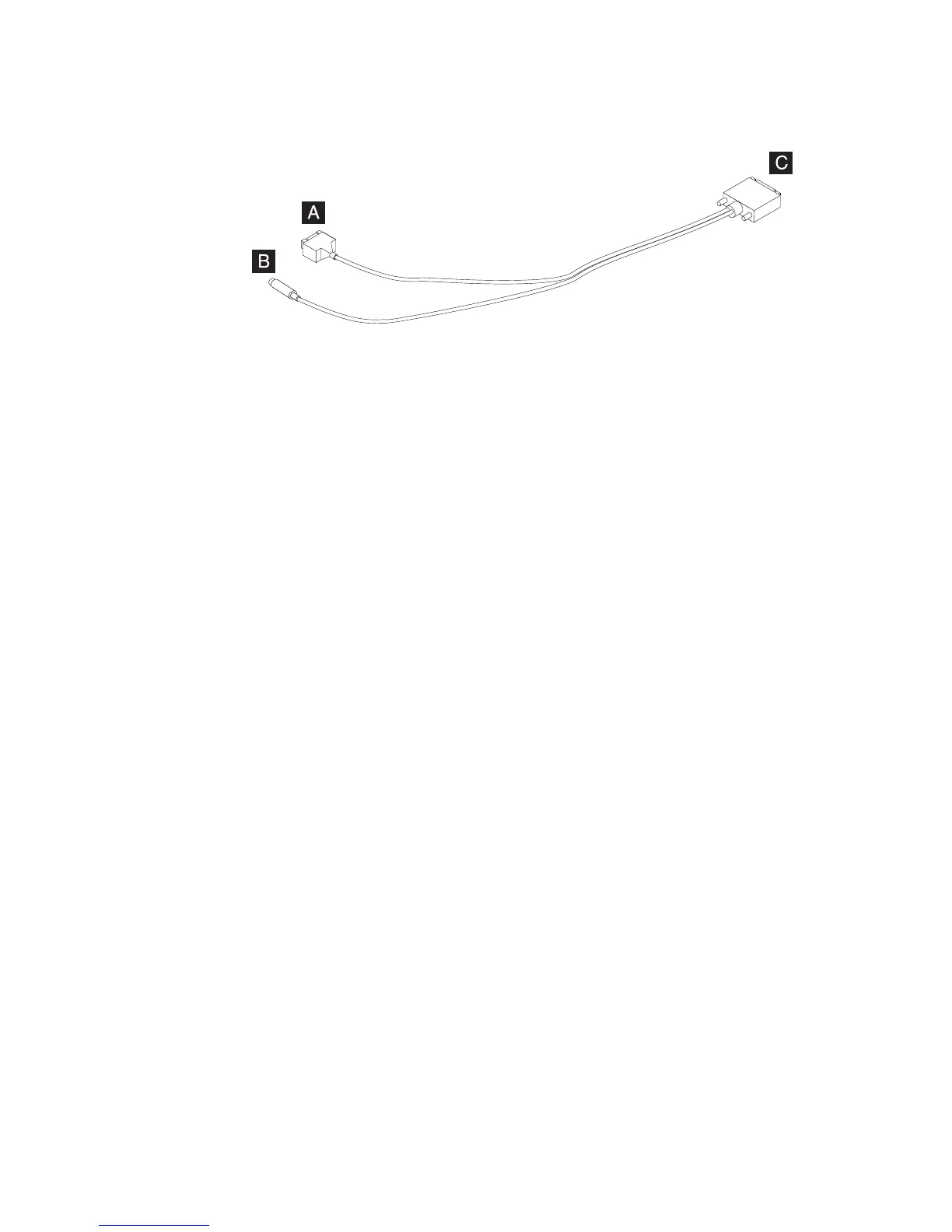

Figure 10. Infrared touch (powered)
Installing the IBM 4820
