Mounting the 4820 SurePoint Solution to the integrated pedestal
Figure 28 shows the parts of the integrated pedestal.
Follow these steps to attach the 4820 to the integrated pedestal:
1. Ensure that you have routed the cables.
2. Secure the pedestal to the system unit:
a. Align the holes of the integrated base plate with the holes in the unit.
b. Tighten the thumb screws securely.
Note:
See “Integrated touch pedestal” on page 36.
3. Mount the 4820 onto the pedestal.
a. Place the display on the pedestal mounting bracket. Make sure that the
metal tabs on the pedestal slide into the appropriate slots on the back of the
4820 display.
b. Secure the 4820 to the pedestal by using four screws.
c. Attach the power and video cables to the 4820 display.
Note:
Ensure that you have attached the cables to the appropriate ports in the
back of the system unit.
Mounting bracket cover
Cable cover
Mounting bracket
Trough cover
Mounting bracket cover
Cable cover
Mounting bracket
Trough cover
Trough
Integrated base plate
Mounting bracket cover/
audio kit
Thumb screws

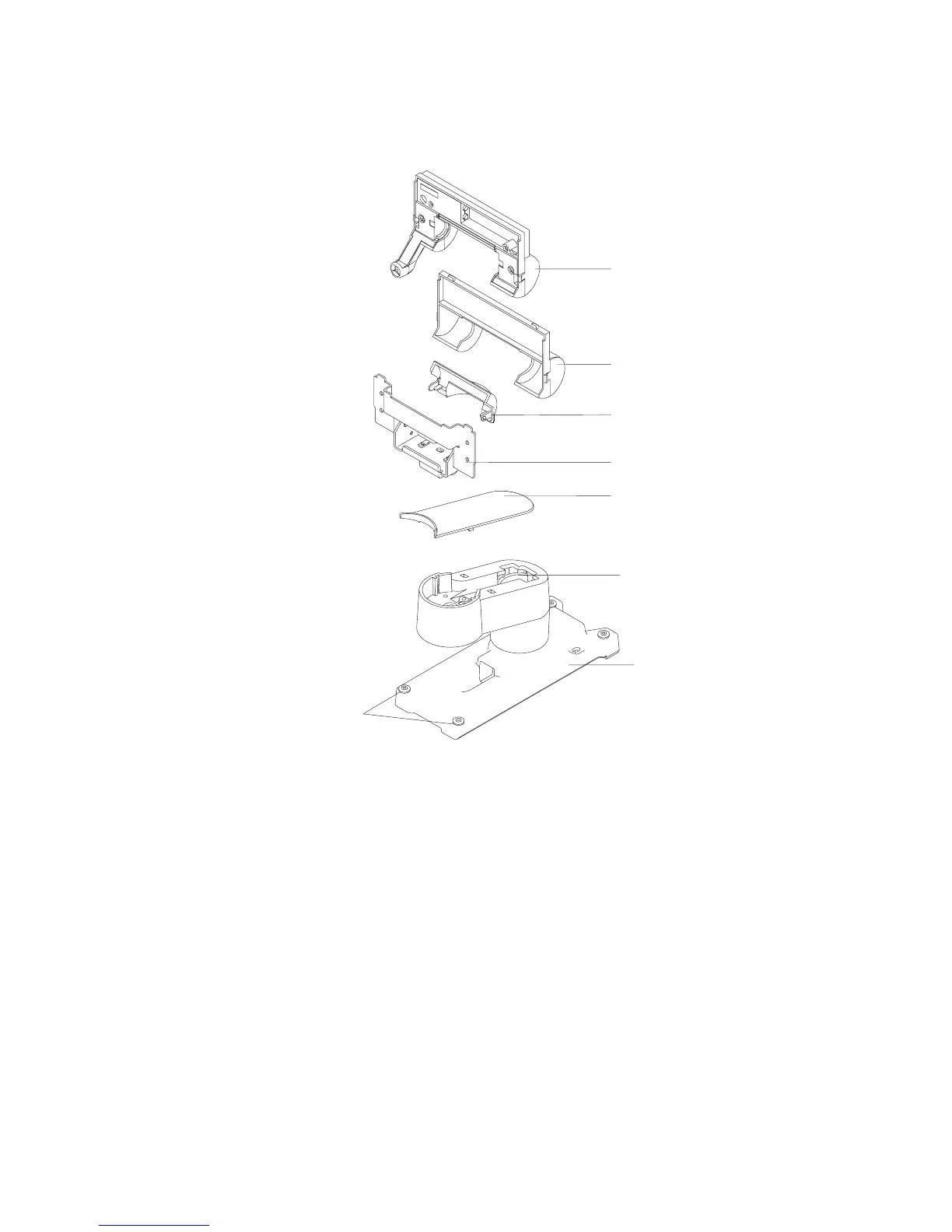

Figure 28. Integrated pedestal parts
Integrated pedestal instructions
Update November 2005
Chapter 2. Installing the IBM 4820 29
