Perform the following steps to attach the 4820 to the integrated pedestal.
1. Ensure that you have routed the cables.
2. Secure the pedestal to the system unit.
a. Align the holes of the integrated base plate with the holes in the unit.
b. Tighten the thumb screws securely.
Note:
See “Integrated touch pedestal” on page 36.
3. Mount the 4820 onto the pedestal.
a. Route and attach the power and video cables to the 4820 display (as shown
in Figure 33).

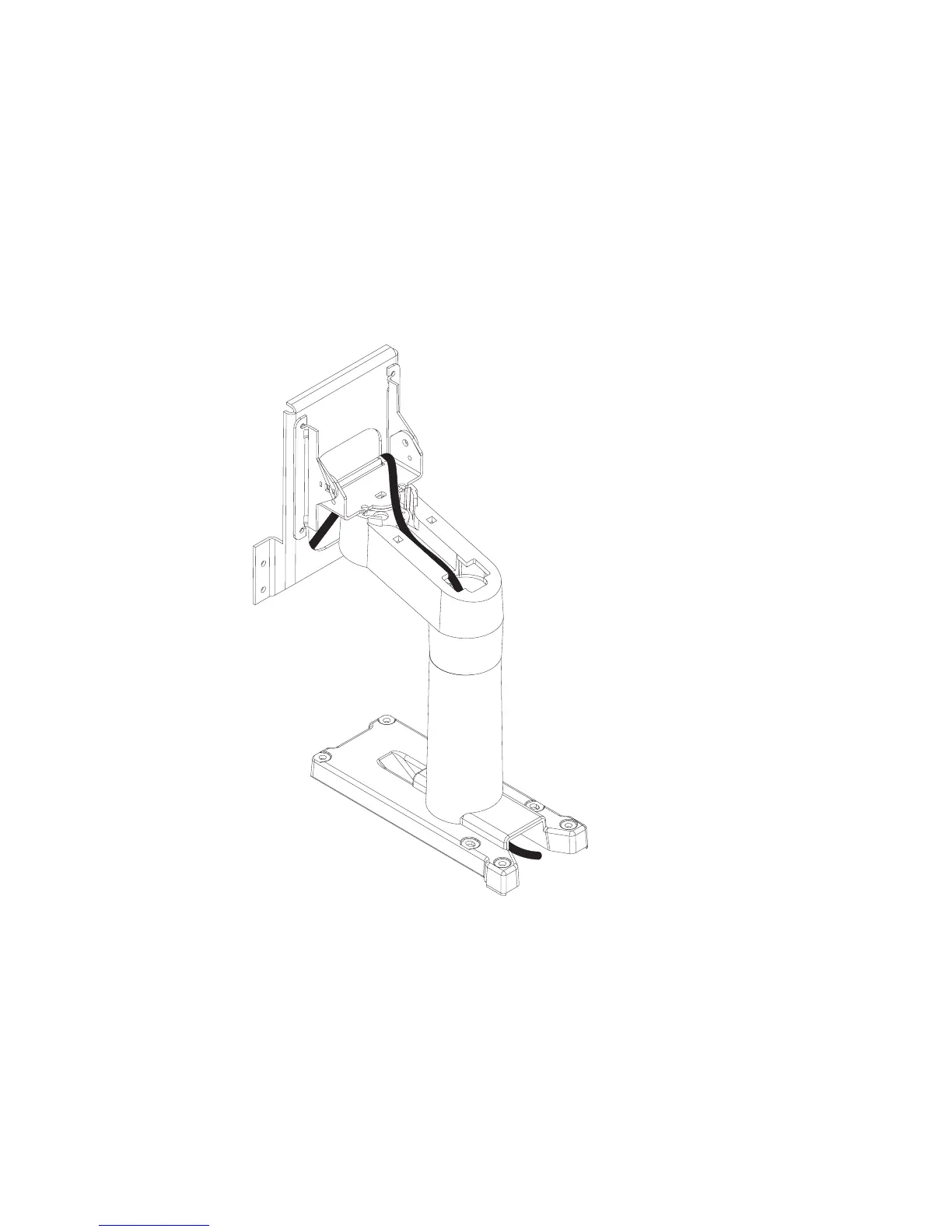

Figure 33. Routing the power cable
Integrated pedestal instructions for 5xx models
Update November 2005
34 4820 Planning, Installation and Service Guide
|
|
|
|
|
|
|
|
|
||
