SurePOS 720, 740, or 780 directly on system unit: Follow these steps when
installing the integrated touch pedestal onto a SurePOS 720, 740, or 780 without an
integration tray:
1. Remove the rubber plugs in the top cover of the system unit (if not already
removed).
a. See the SurePOS 720, 740, and 780 Hardware Service Guide to remove
the top cover.
b. From the inside of the top cover, push the rubber plugs out of the plastic.
c. Reinstall the top cover.
2.
Install the arm assembly in the box filler panel.
3. Route the cables as described for your 4820 model.
4. Place the arm assembly on the system unit as shown in Figure 40. Insert and
tighten the four thumb screws as shown.
Note:
The left or right placement of the arm assembly depends upon your
configuration.
5. Install your options. See “Installing options” on page 43.
6. Attach the 4820 to the pedestal.

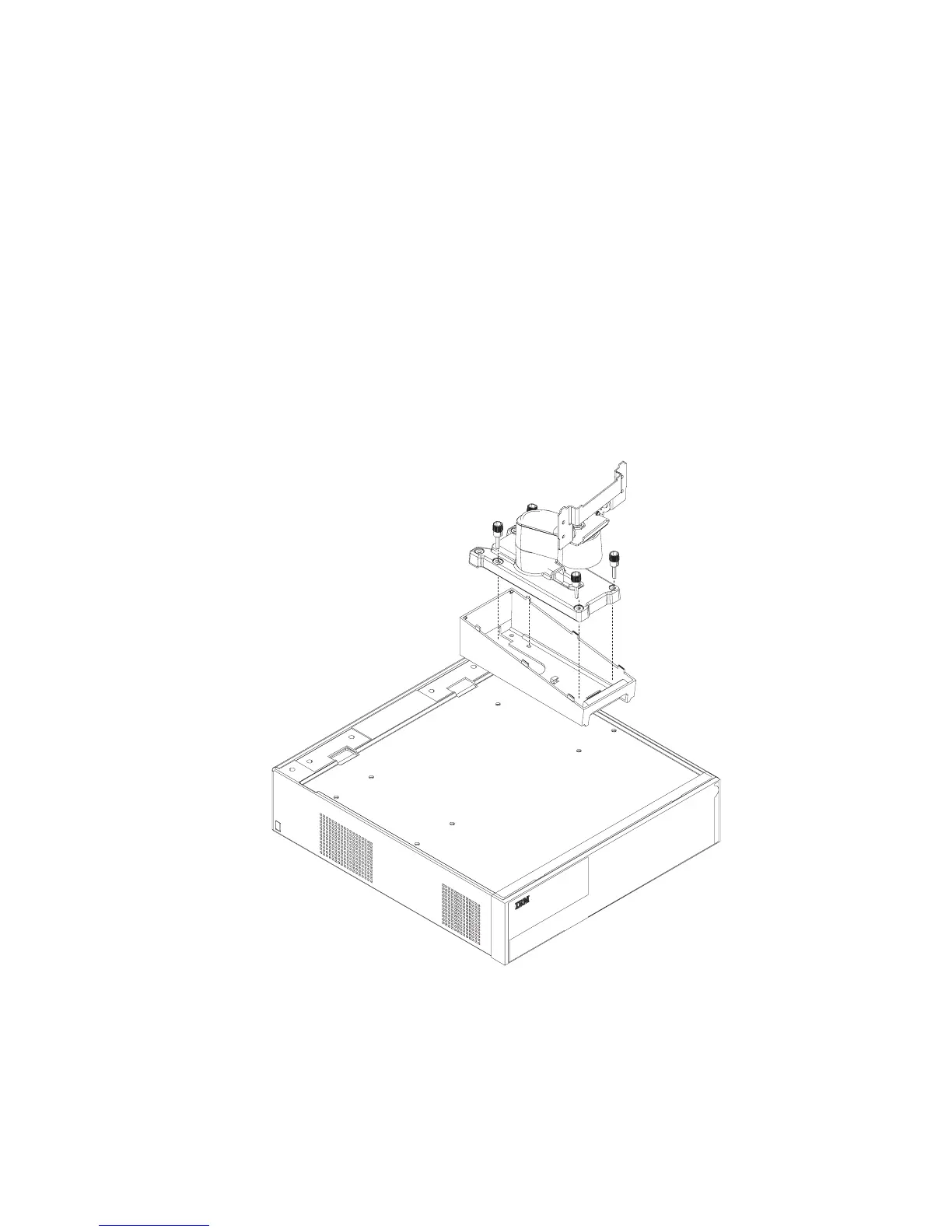

Figure 40. Securing the arm assembly to the SurePOS 720, 740, 780
Integrated touch pedestal instructions
Update November 2005
Chapter 2. Installing the IBM 4820 41
