Mounting the 4820 SurePoint Solution to the distributed pedestal
Review the parts list shown in Figure 23 and then follow the steps to attach the
4820 display to the distributed pedestal.
1. Ensure that the pedestal is secure.
2. Mount the 4820 onto the pedestal:
a. Place the 4820 display on the distributed pedestal. Make sure that the metal
tabs on the mounting bracket slide into the appropriate slots on the back of
the 4820 display.
b. Secure the 4820 to the mounting bracket using four screws.
3. Attach the power cable and video cable to the 4820 display.
Note:
Ensure that you have connected the cables to the system unit.

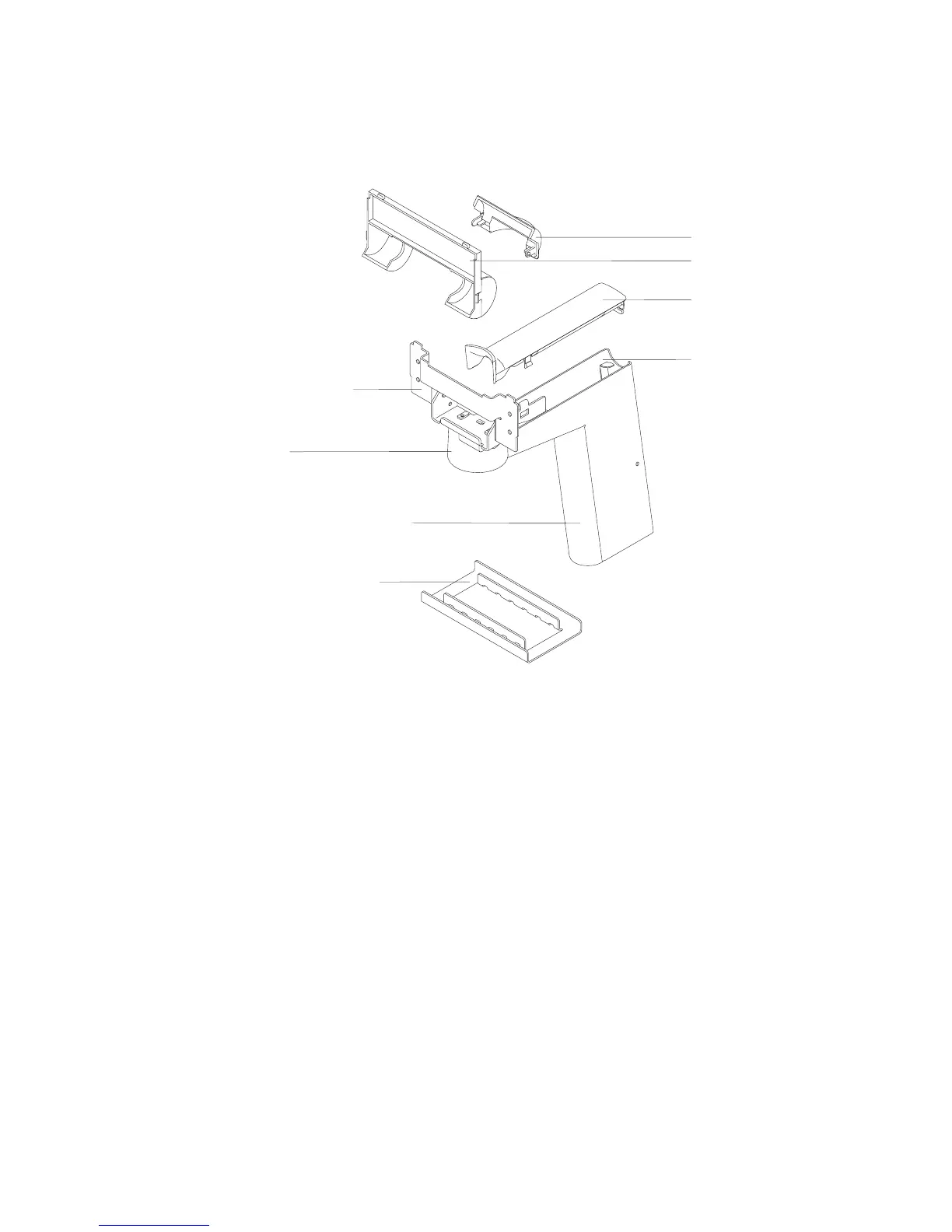

Mounting bracket
Cable cover
Mounting bracket cover
Pedestal mounting bracket
Collar
Trough cover
Trough
Metal support bracket
Figure 23. Distributed pedestal parts (shown with short pedestal)
Distributed pedestal instructions
Update November 2005
24 4820 Planning, Installation and Service Guide
|
|
|
|
|
|
|
|
|
