2. Place the 4820 display on the free-standing pedestal. Make sure that the metal
tabs on the mounting bracket slide into the appropriate slots on the back of the
4820 display.
3. Secure the 4820 to the mounting bracket by using four screws.
4. Connect and route the cables to the 4820:
a. Place the cables in the cable trough.
b. Connect to cables to the appropriate ports on the 4820.
Note:
Ensure that you have attached the cables to the appropriate ports in the
back of the system unit.
5.
Install the covers.
a. Attach the cable cover (1) to the mounting bracket (as shown in
Figure 26), snapping the tabs on the sides of the cover into the small holes
on the sides of the mounting bracket.
b. Attach the mounting bracket cover (2) to the back of the display. Slide the
tabs on the cover into the appropriate slots in the back of the display and
snap into place.
6. Power On the system unit. See “Power usage” on page 9.
7. Auto adjust your screen for maximum viewing. See “Adjusting the image” on
page 53.
2
1
Mounting bracket cover
Cable cover

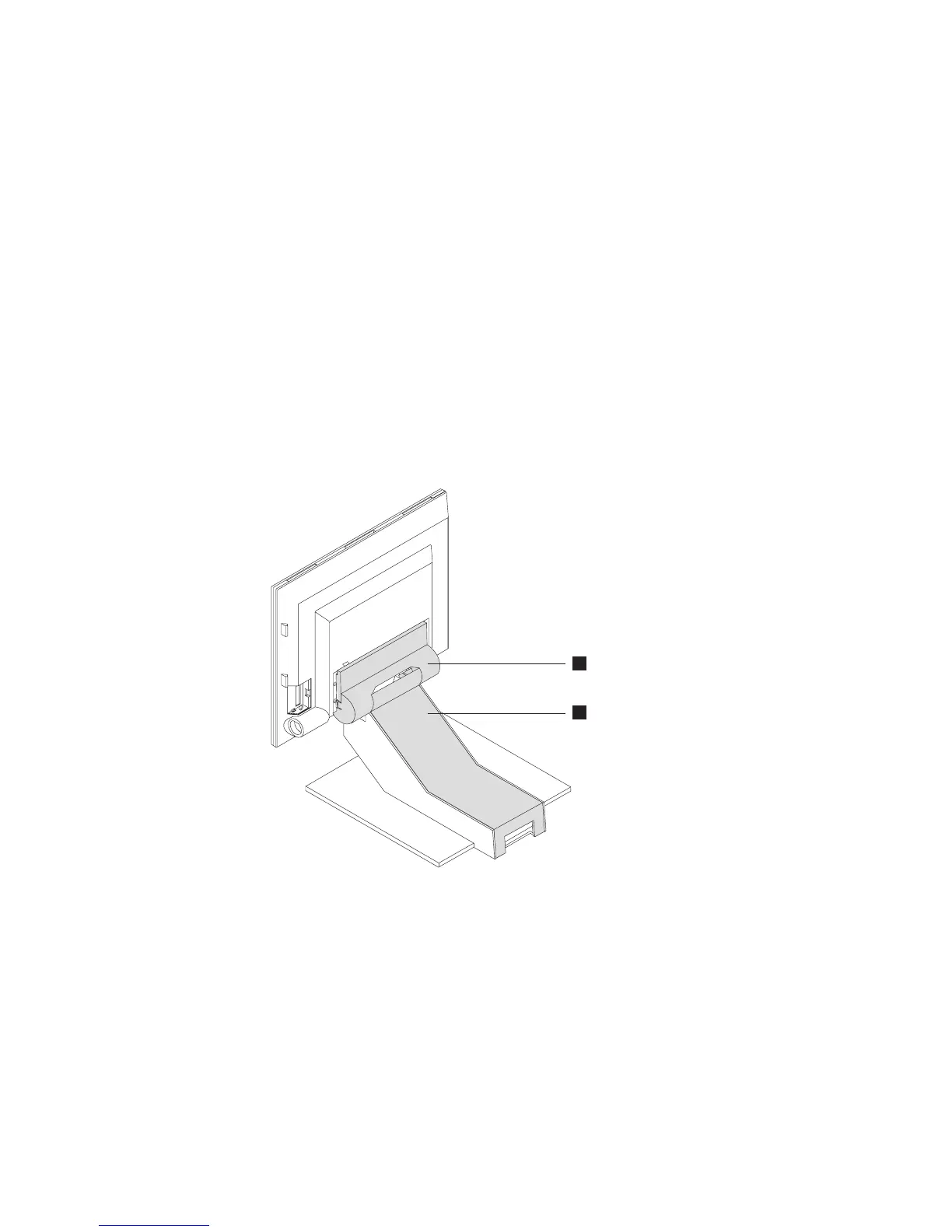

Figure 26. Placement of cable covers
Free-standing pedestal instructions
Update November 2005
Chapter 2. Installing the IBM 4820 27
