SurePOS 720, 740, or 780 with integration tray: Follow these steps when
installing the integrated touch pedestal onto a SurePOS 720, 740, or 780 with an
integration tray:
1. Remove the rubber plugs in the top cover of the system unit (if not already
removed).
a. Refer to the SurePOS 720, 740, and 780 Hardware Service Guide to
remove the integration tray and top cover.
b. From the inside of the top cover, push the rubber plugs out of the plastic.
c. Reinstall the top cover and the integration tray.
2.
Route the cables as described for your 4820 model.
3. Place the arm assembly on the slant tray as shown in Figure 38. Insert and
tighten the four thumb screws as shown.
Note:
The left or right placement of the arm assembly depends upon your
configuration.
4. Attach the 4820 to the pedestal.

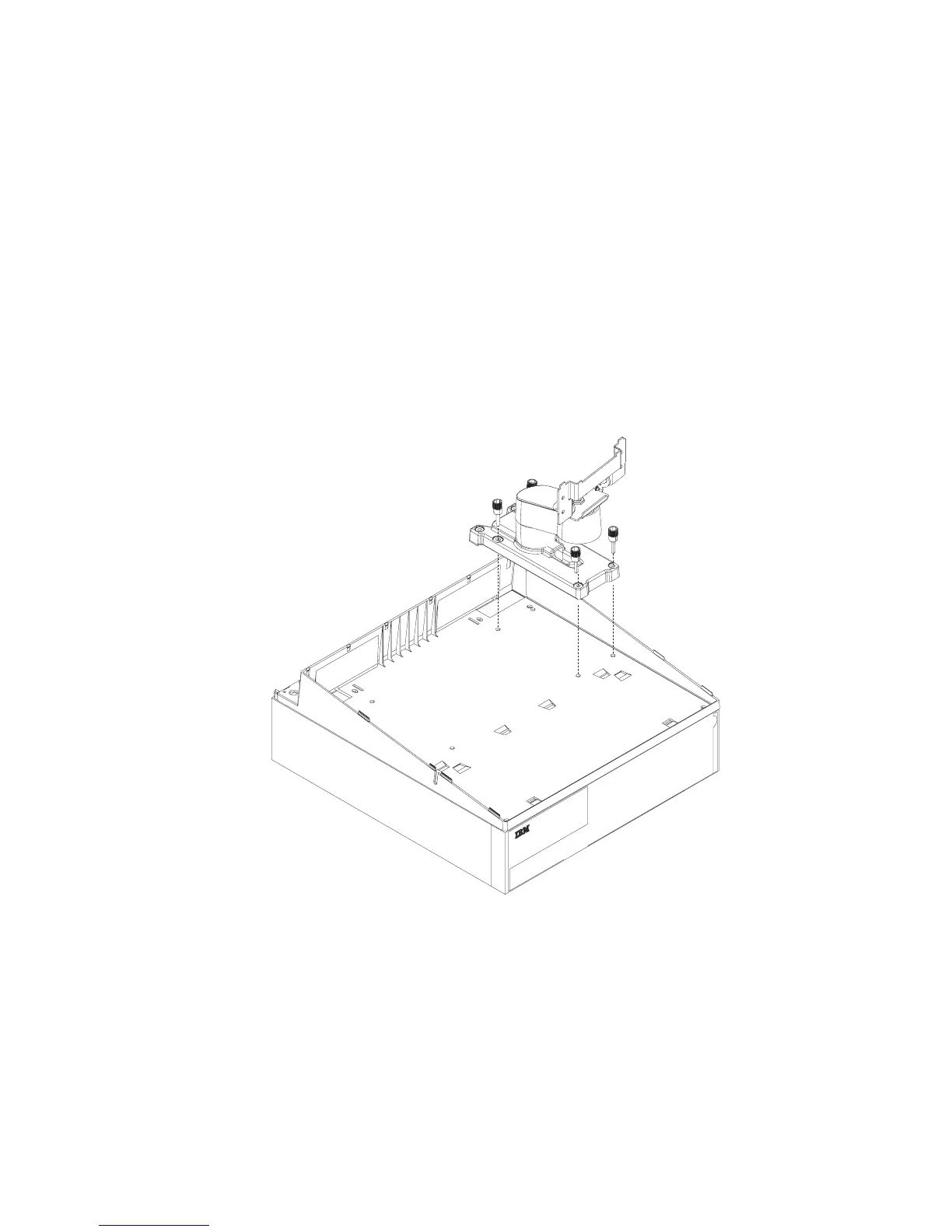

Figure 38. Securing the arm assembly to SurePOS 720, 740, 780
Integrated touch pedestal instructions
Update November 2005
Chapter 2. Installing the IBM 4820 39
|
|
|
|
|
|
|
|
|
