4. Install the mounting covers.
Note:
Install the optional audio kit at this time. See “Attaching the audio kit” on
page 49.
a. Attach the cable cover (1 in Figure 24) to the mounting bracket, snapping
the tabs on the sides of the cover into the small holes on the sides of the
bracket.
b. Attach the mounting bracket cover (2 in Figure 24) to the back of the
display. Slide the tabs on the cover into the appropriate slots in the back of
the display and snap into place.
c. Position the trough cover (3 in Figure 24) over the trough of the distributed
pedestal. Press on the trough cover until it snaps into place.
5. Plug the power brick into an outlet.
6. Power on the system unit. See “Power usage” on page 9.
7. Auto adjust your screen for maximum viewing. (See “Adjusting the image” on
page 53.)
2
1
3
Mounting bracket cover
Cable cover
Trough cover

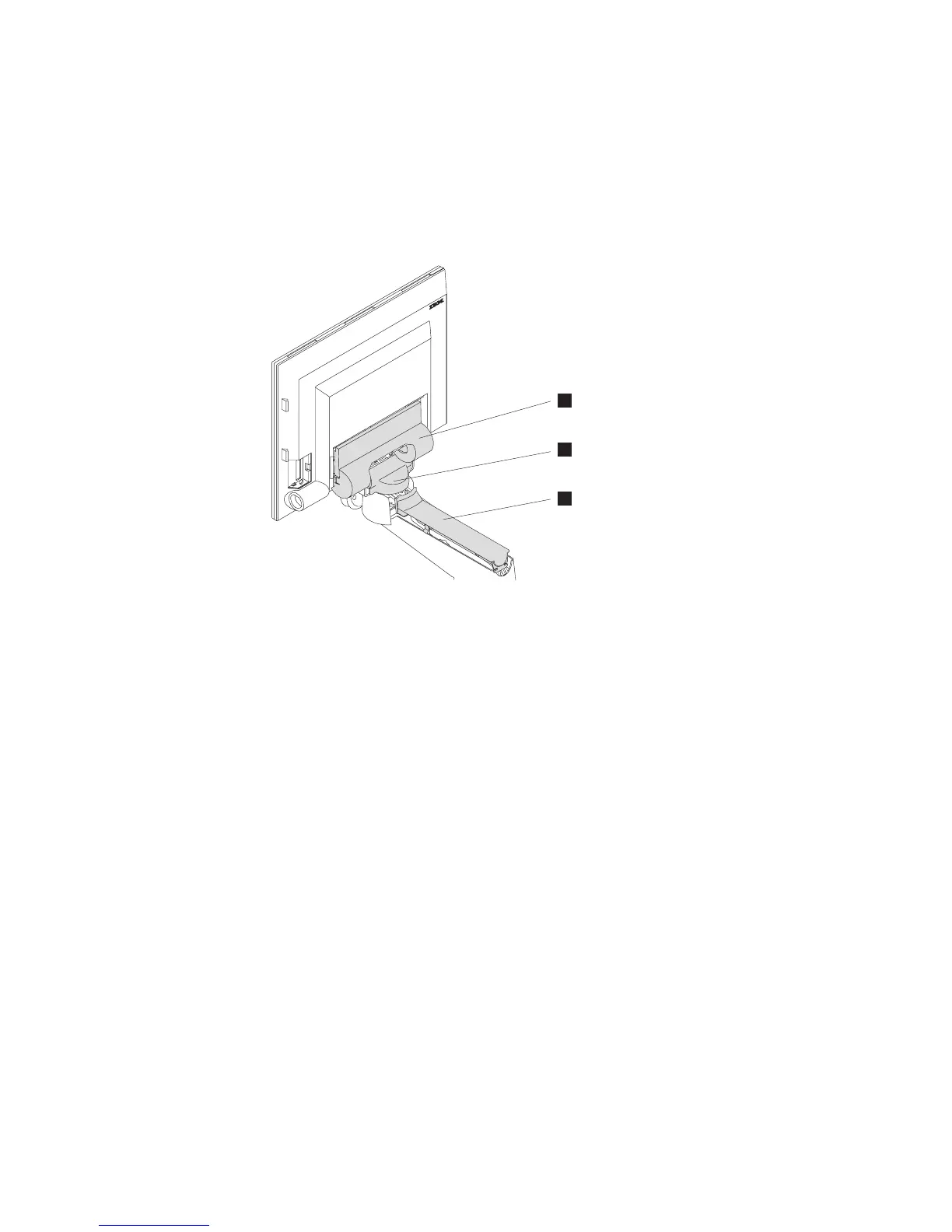

Figure 24. Distributed pedestal covers
Distributed pedestal instructions
Update November 2005
Chapter 2. Installing the IBM 4820 25
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
