Integrated pedestal for 5xx models
See “Tailoring your installation” on page 11. These instructions provide steps for
cable routing and mounting the 4820 SurePoint Solution to the integrated pedestal.
Routing the cables for the integrated pedestal
1. Attach the video cables and touch cable to the appropriate port on the system
unit.
2. Route the video cables and touch cable for the 4820 display through the
opening of the system unit.
3. Separately route these cables up through the base of the integrated pedestal as
shown in Figure 31.
Note:
You may need to rotate the pedestal arm for the video cable connector to fit
through the opening.

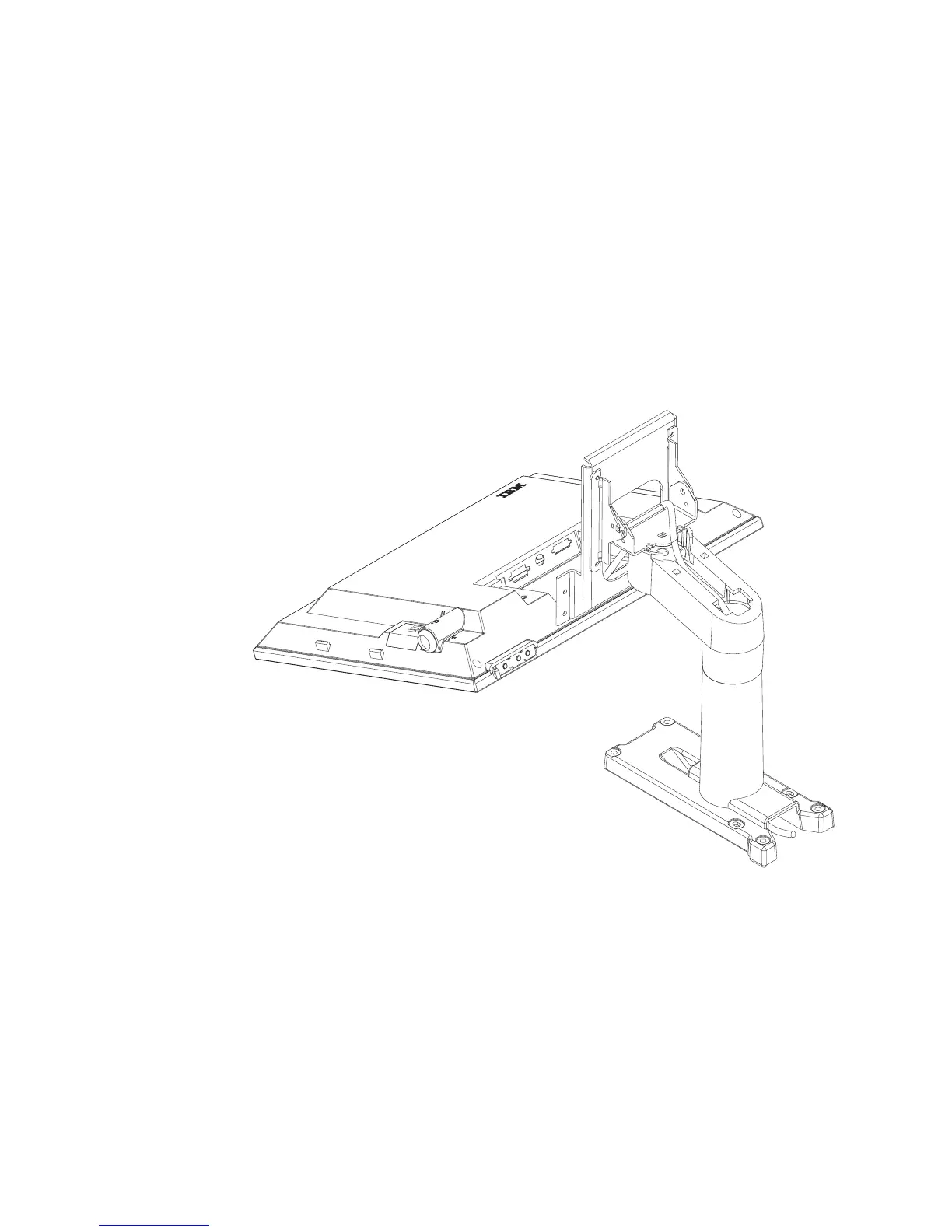

Figure 31. Routing the cables
Integrated pedestal instructions for 5xx models
Update November 2005
32 4820 Planning, Installation and Service Guide
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
