Installing options
This section describes how to install all available options and the routing order.
Some options are not available for your 4820 model. You must determine whether
your model accepts the described option. For model information and options, see
Table 1 on page 1.
Depending on your selected options, IBM recommends that you follow this order
when installing them:
1. Manager’s keylock
Note:
This feature must be factory-installed for models 2xx and 5xx.
2. Keypad, or MSR – attaches either the MSR or the keypad with MSR to the
4820 SurePoint Solution
3. MSR
4. Pointing device
5. Audio kit
Note:
Install the audio kit when you install the covers.
Installing the manager’s keylock
The empty lock cylinder (see Figure 4 on page 7) of the 4820 SurePoint Solution
contains a slot that matches the lock’s insert. Your objective is to adjust this slot so
that the lock will fit snugly into the cylinder. Follow these steps:
1. To install the manager’s keylock, look into the empty lock cylinder to determine
the orientation of the slot.

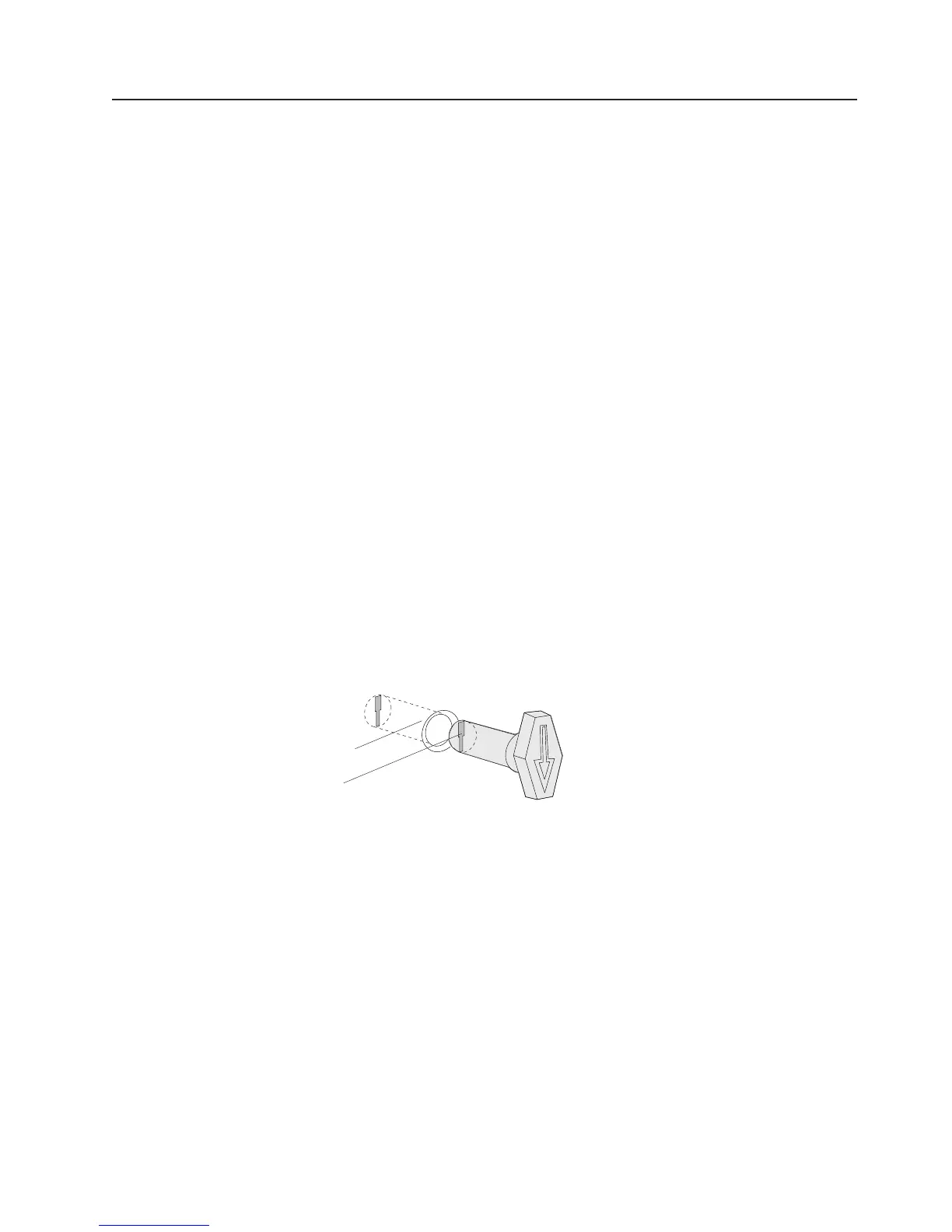

2. Insert the aligner into the empty lock cylinder so that the aligner’s slot
orientation matches the cylinder’s slot orientation (see Figure 42).
3. Turn the aligner so that the arrow on the aligner is pointing downward, as
shown in Figure 42.
4. Remove the aligner.
5. Remove the keys that accompany the lock insert.
6. Place the brass installation and removal key fully into the lock insert.
Lock cylinder
Aligner slot
Figure 42. Aligner placement
Installing options
Update November 2005
Chapter 2. Installing the IBM 4820 43
|
