Installing the pedestal
This section describes how to install the distributed, integrated, integrated touch and
free-standing pedestal. Cable routing steps are included.
Distributed pedestal
Follow these instructions for installing the 4820 SurePoint Solution to the distributed
pedestal:
Attaching the distributed pedestal to the counter
The distributed pedestal is available in short (238.2 mm/9.38 inches) and tall (350.6
mm/13.80 inches) versions. Both pedestals bolt to your counter; therefore,
installation is the same. Figure 19 shows the mounting order for the tall pedestal.
Pedestal
Mounting surface
Metal support bracket
M6 screws

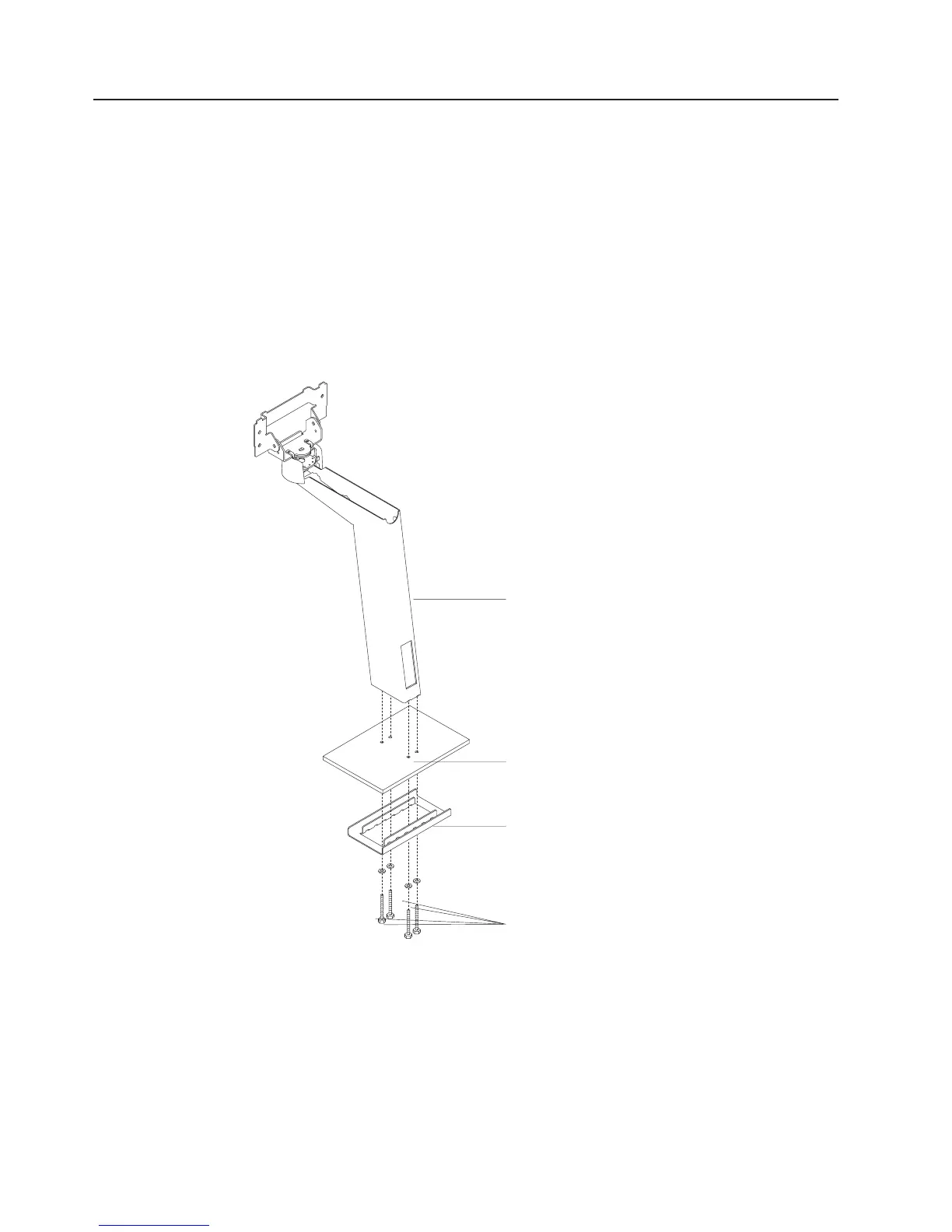

Figure 19. Mounting the distributed pedestal
Installing the IBM 4820
Update November 2005
20 4820 Planning, Installation and Service Guide
