Chapter 7 Section I: Replacement Procedures

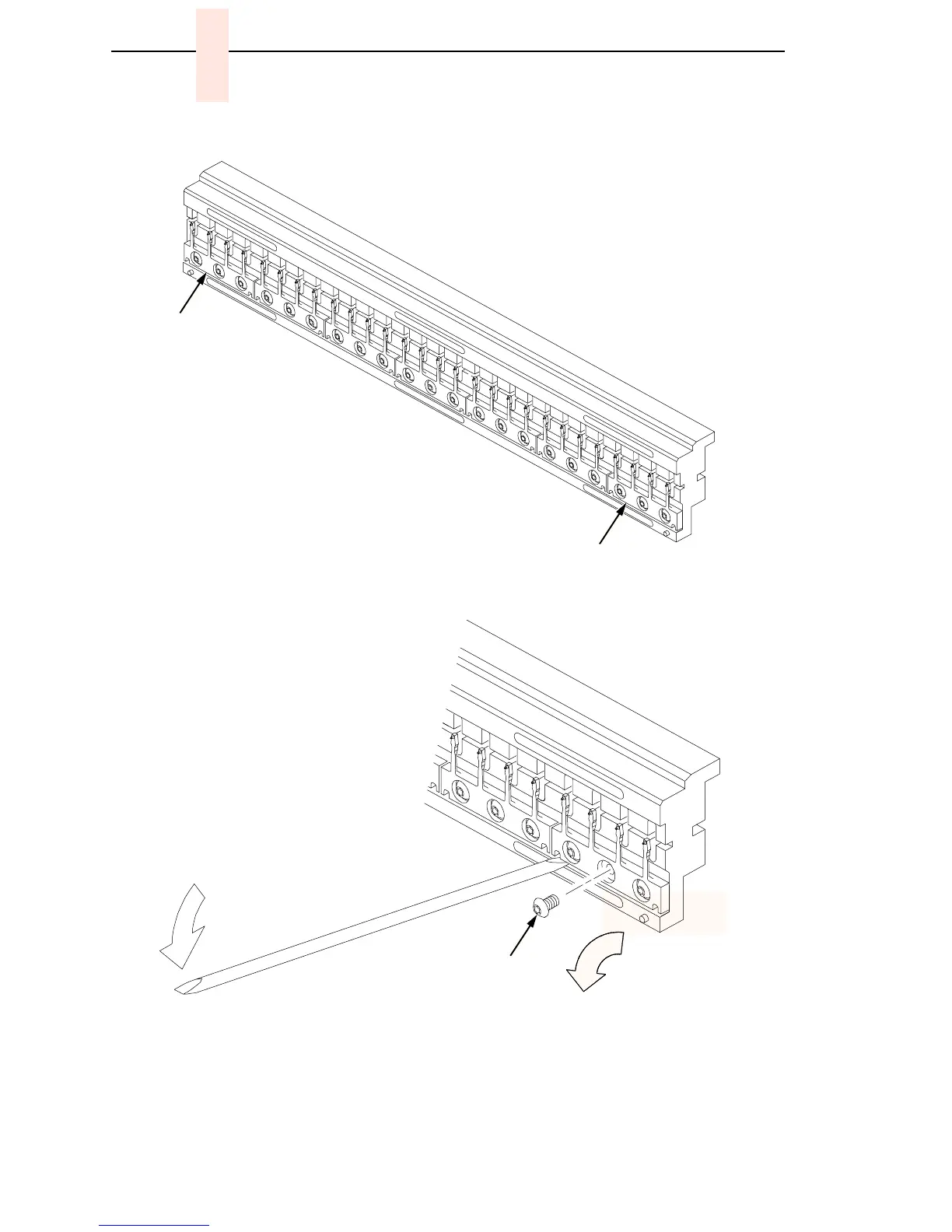

Figure 33. Hammer Spring Assembly, Removal
Hammer Spring
Assembly 7
Hammer Spring
Assembly 1
NOTE: The hammer spring assemblies shown here
are for 6400-004/-04P/-005/-05P printers. The
number of hammer springs and mounting screws
varies among printer models, but removal and
installation are the same.
Discard old screws.
