Appendix J Stacker Operation
Stacker Control Panel
To gain access to the stacker control panel, open the rear door of the cabinet.
The control panel has two indicator lamps and four keys. (See Figure 60.)
Legend:
1) ON/OFF Indicator Lamp
2) On Line Indicator Lamp
3) On Line Key
4) Form Feed Key
5) Stacker Elevator Up Key
6) Stacker Elevator Down Key

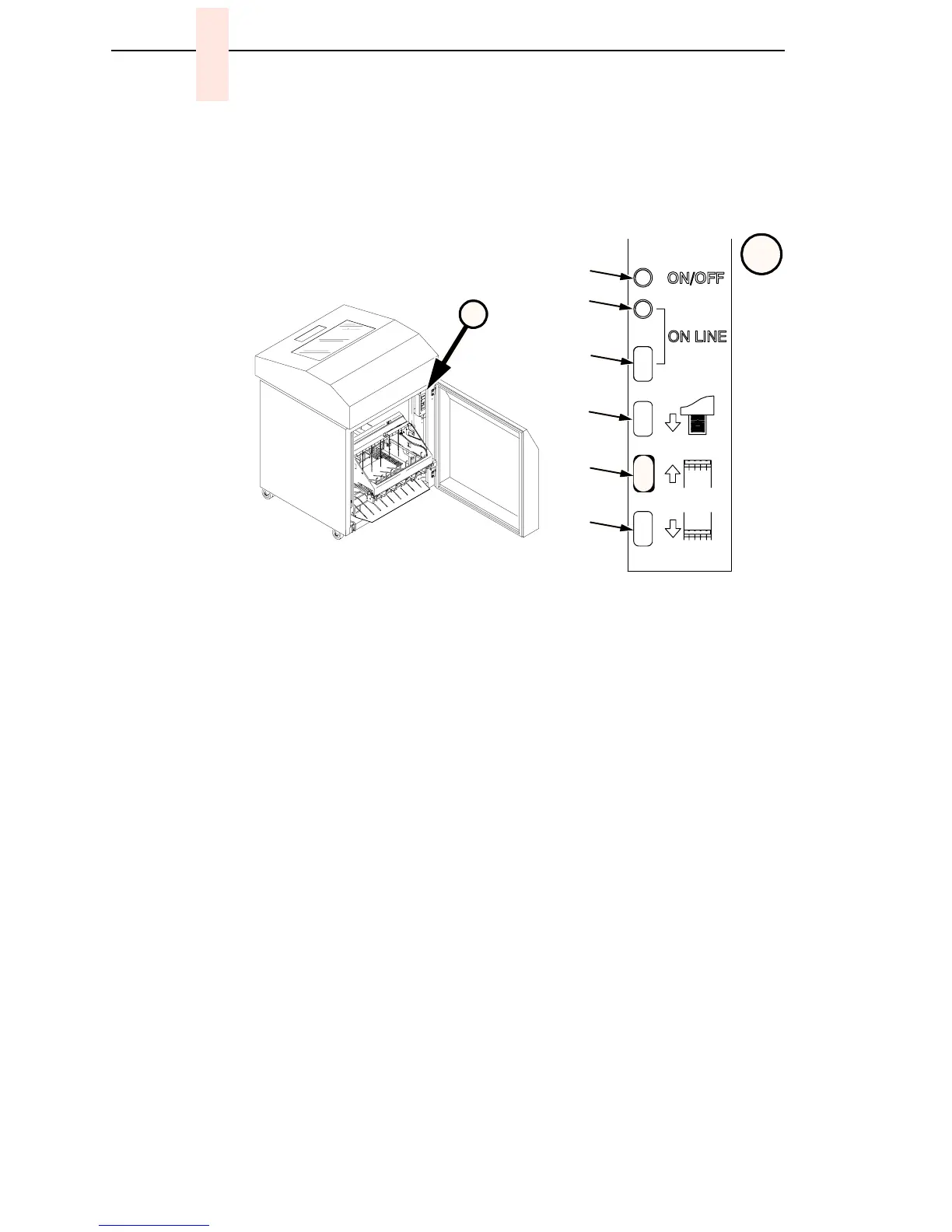

Figure 60. Power Stacker Control Panel
• ON/OFF Indicator Lamp—Lit when printer power is on. Unlit when
printer power is off.
• ON LINE Indicator Lamp—Lit when printer is online to host computer
(READY). Unlit when printer is offline (NOT READY).
• ON LINE Key—Toggles the printer between the READY and NOT
READY operational states.
• FORM FEED Key—Moves paper one form length as defined by the
currently active form length. This key is active only when the printer is in
the NOT READY state.
• ELEVATOR UP Key—Moves the elevator to its highest position. This key
is active only when the printer is in the NOT READY state.
• ELEVATOR DOWN Key—Moves the elevator to its lowest position. This
key is active only when the printer is in the NOT READY state.
$
$
