Replacing The Constant Force Spring
1. Remove the stacker assembly from the printer. (See page 375.)
ATTENTION
In the next step, do not over-tighten the tie wraps or string. Tighten the
tie wraps or string just enough to hold the elevator up.
2. Raise the elevator assembly to its highest position and secure it to the
vertical rails using tie wraps or string. (See Figure 81.)

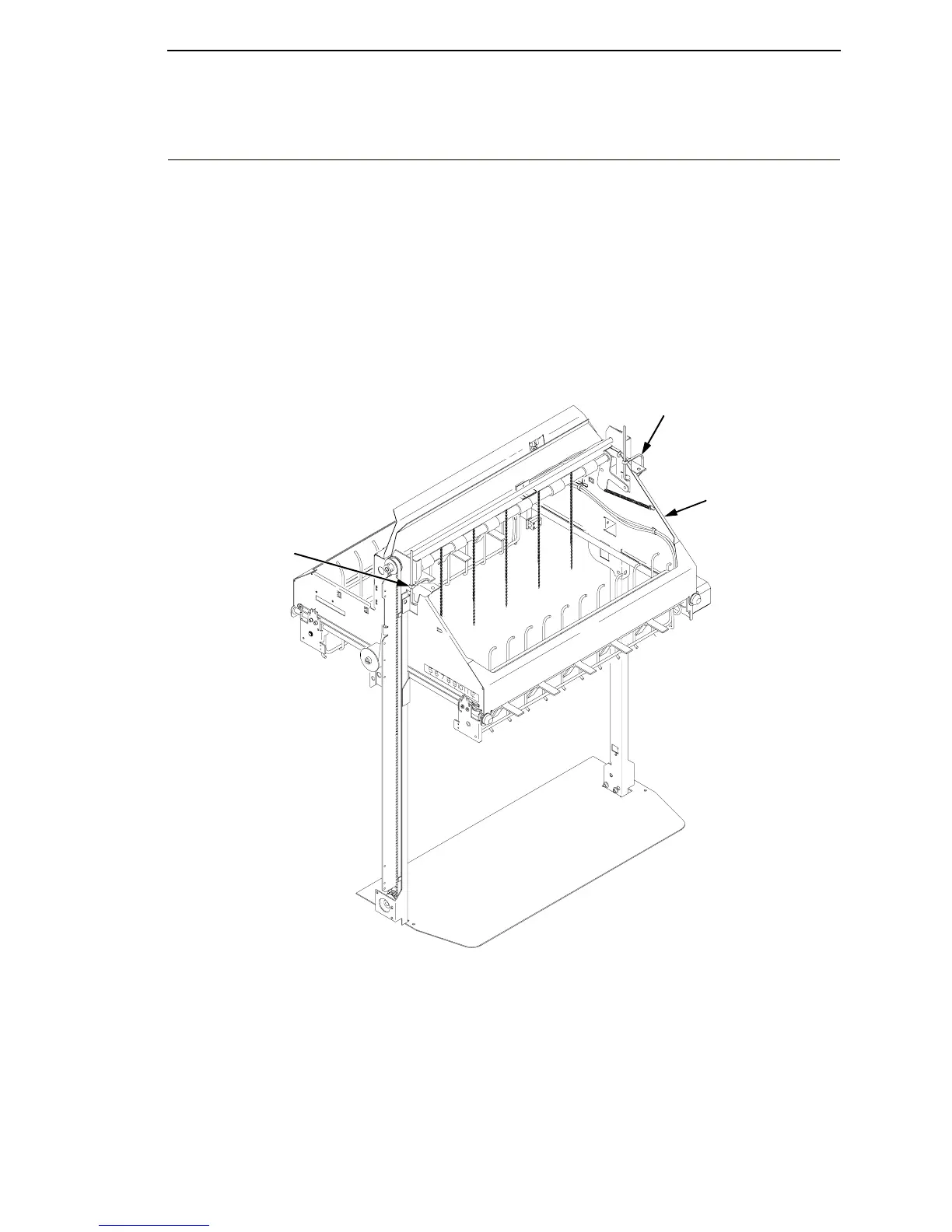

Legend:
1. Tie Wrap
2. Elevator Assembly
Figure 81. Securing the Elevator Assembly
1
2
1
To Next Page
