Page #300 background imageLoading...
Page #300 background image
300
Appendix A Circuit Board And Cable Pinouts

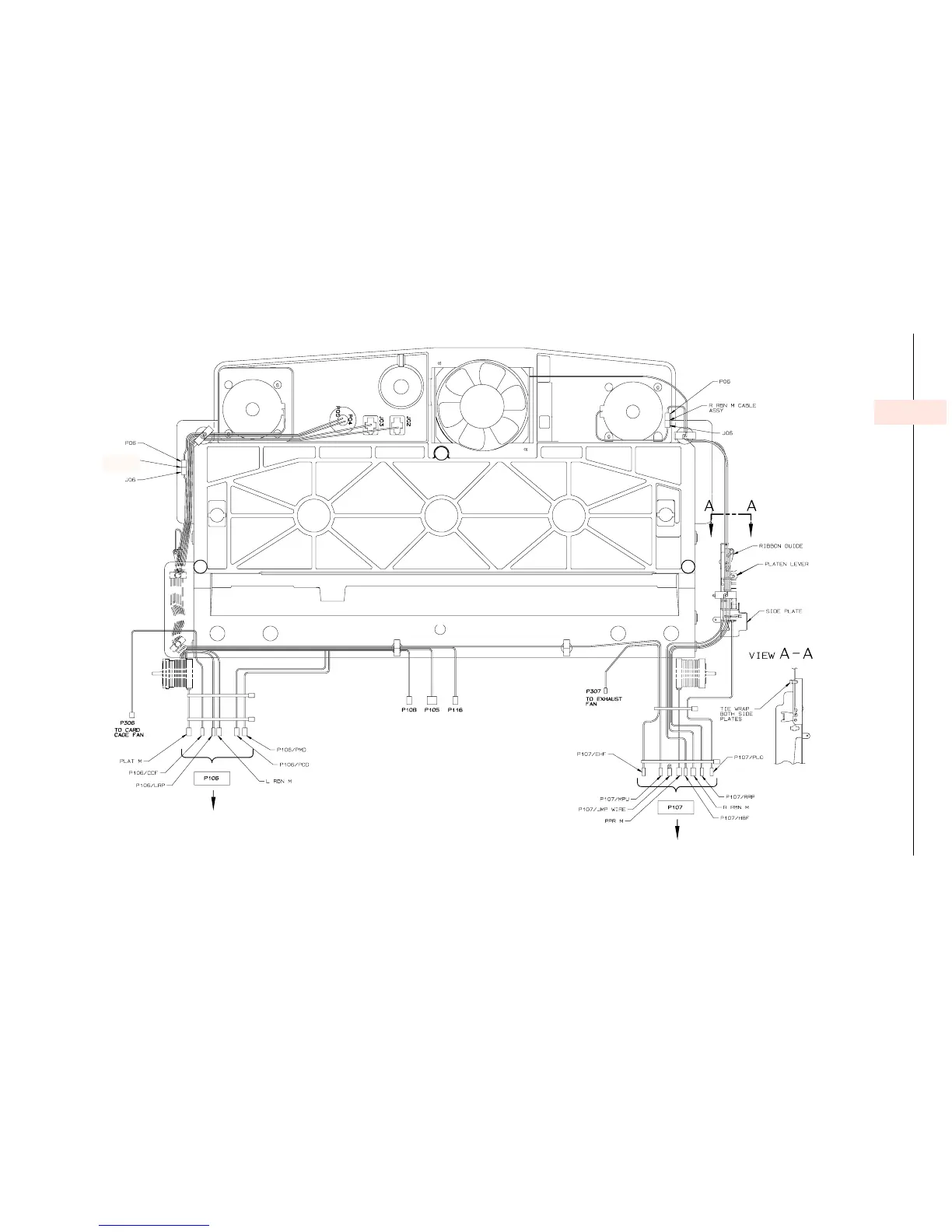

Cable Routing, Mechanism Base, Cabinet Model
To J107 on CMX board
To J106 on CMX board
Front of Printer
Left Side of Printer
Right Side of Printer
NOTE: This view shows the underside of the
mechanism base.
L RBN M
CABLE ASSY
