IBM 6400

369
Legend:
1) Pinch Rollers
2) Paper Throat
3) Stacker Control Panel
4) Elevator Assembly
5) Motor Bracket
6) Wire Paper Tent
7) Paddle Shaft
8) Alignment Rod (2)
9) Bearing Bracket
10) Paper Length Indicator

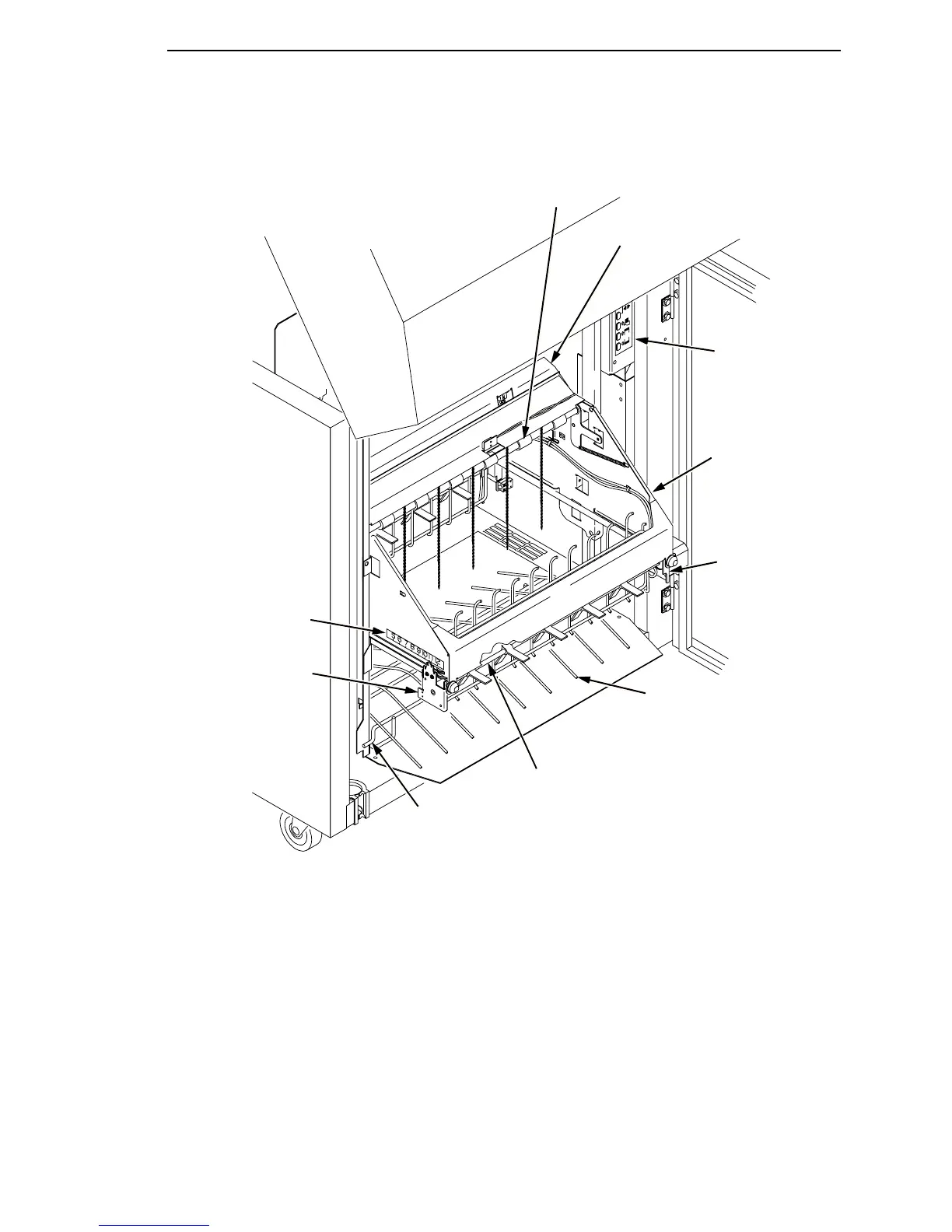

Figure 59. Power Stacker Component Locations
1
2
3
5
6
7
8
9
10
4
