8. Remove the timing belt by working it around the vertical rail and constant
force spring. (See Figure 88.)
Legend:
1. Timing Belt

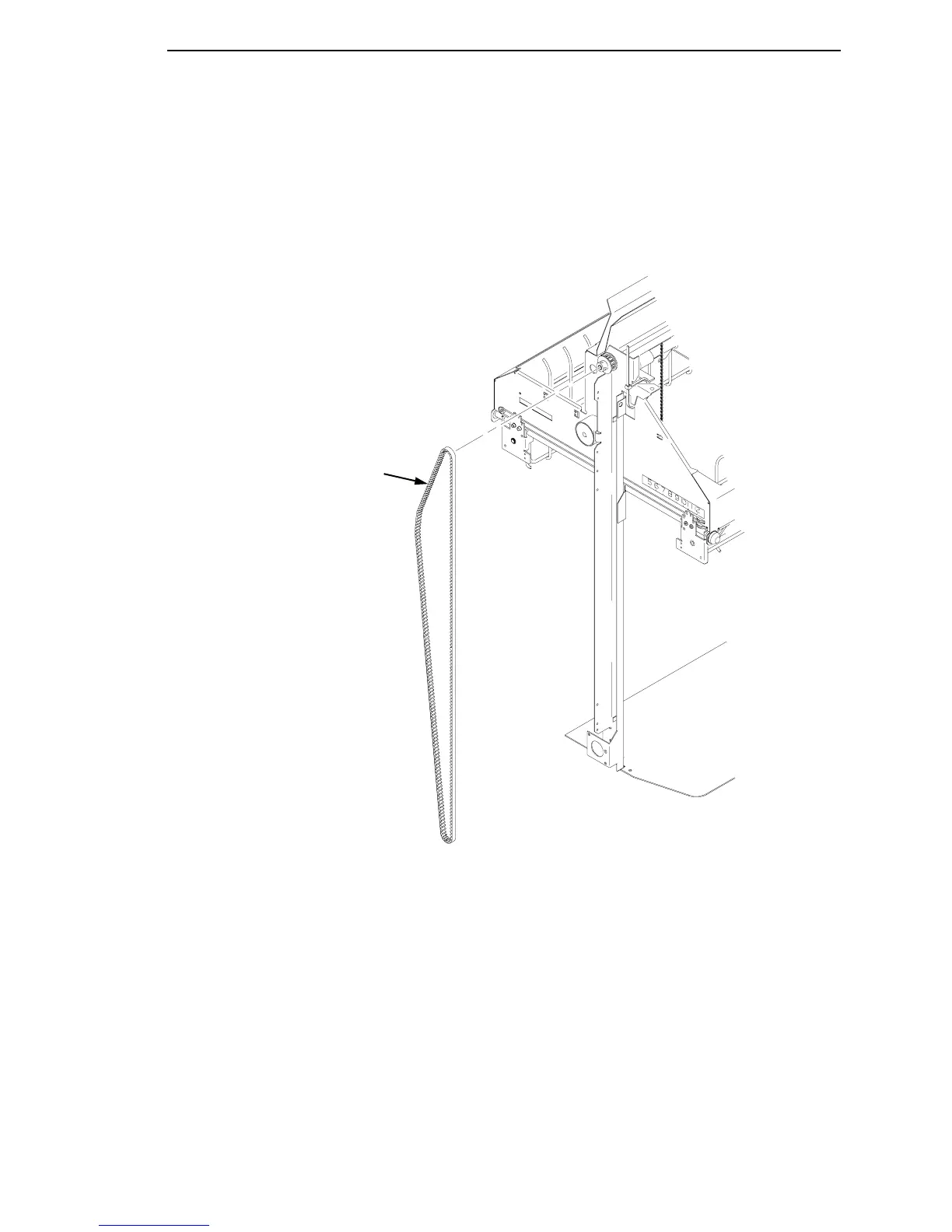

Figure 88. Removing the Timing Belt
9. To install a timing belt, reverse the steps of this procedure.
NOTE: Left timing
belt is shown. Right is
the same.
1
