IBM 6C1 - System Board Locations

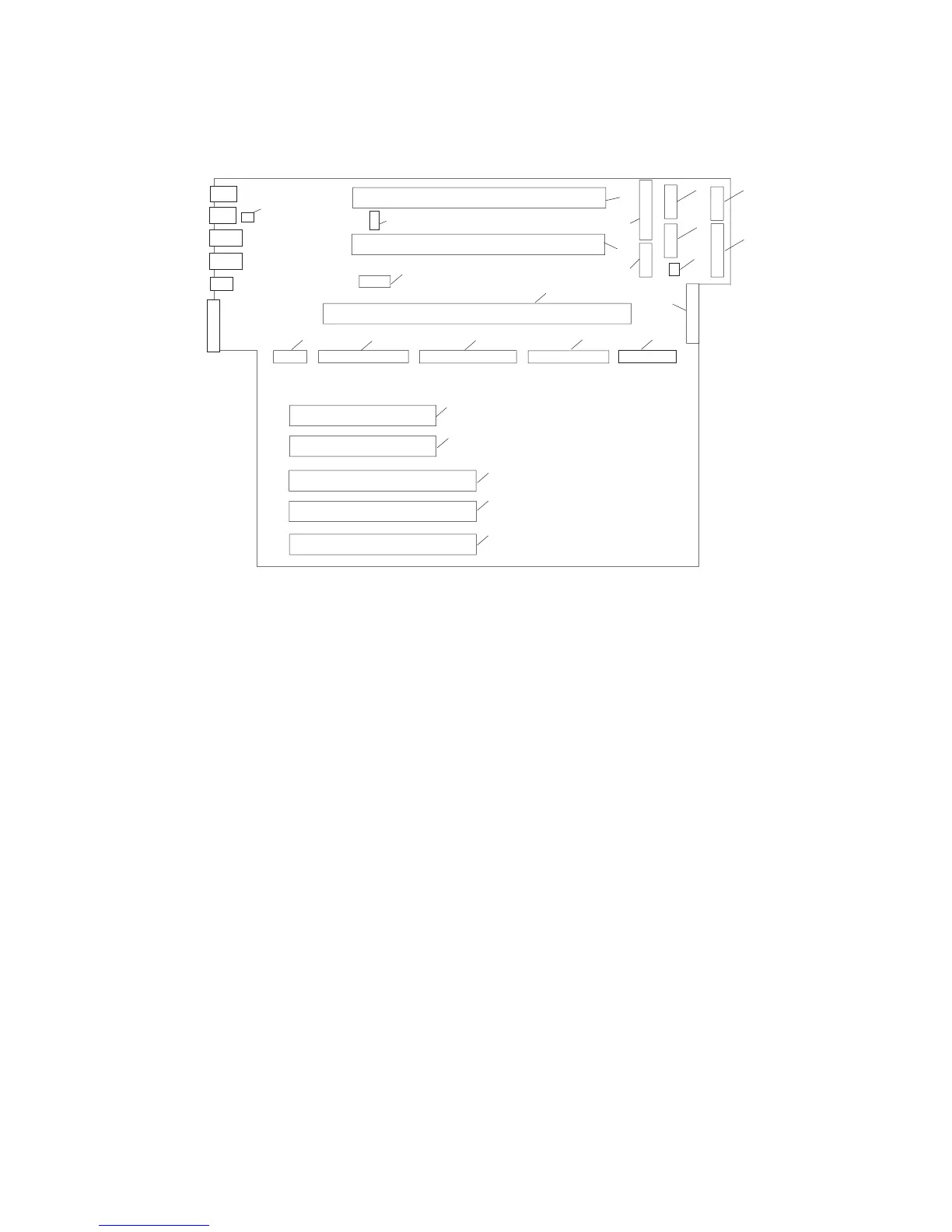

System Board Locations
2
3
6
4
5
8
9
10
11
12
13
14
17
15
18
16
19
20
21
22
23
24
7
1
1 Rear serial port (#1) connector 2 Rear power and attention LED connector
3 Processor power connector 4 Processor #2 card connector
5 Processor #1 card connector 6 Power connector
7 Power connector 8 Power connector
9 Power connector 10 Light path card connector
11 Processor fans 12 Blowers
13 Diskette connector 14 Memory card connector
15 Front serial port connector 16 Operator panel connector
17 CD-ROM IDE connector 18 Internal SCSI connector
19 - 20 32-bit PCI connectors
(33MHz, 5V)
21 64-bit PCI connector
(33MHz, 5V)
22 - 23 64-bit PCI connector
(50MHz, 3.3V)
24 Battery connector
8 Service Guide
