IBM 6C1 - SCSI Ids and Bay Locations

To Next Page

To Previous Page

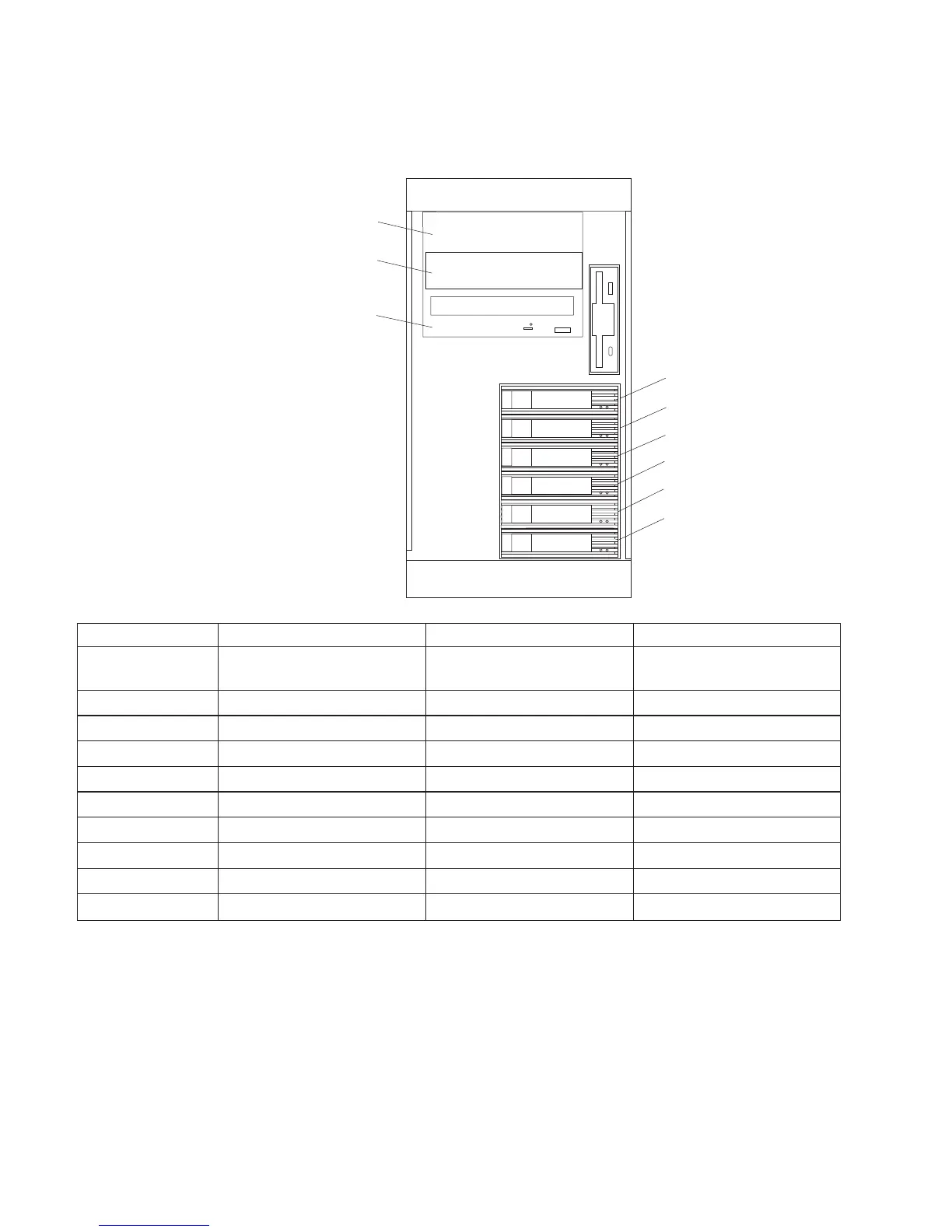

SCSI IDs and Bay Locations

Index Bay Location Drive Name SCSI ID

1 D01 Disk Drive (behind operator

panel

SCSI ID 0

2 D02 Media SCSI ID 1

3 D03 IDE CD-ROM IDE (Non-SCSI)

3 D03 SCSI Device SCSI ID 2

4 D10 Disk Drive SCSI ID 10

5 D11 Disk Drive SCSI ID 11

6 D12 Disk Drive SCSI ID 12

7 D13 Disk Drive SCSI ID 13

8 D14 Disk Drive SCSI ID 14

9 D15 Disk Drive SCSI ID 15

Note: The SCSI bus IDs are the recommended values and indicate how the IDs are

set when the system is shipped from the factory. Field installations might not

comply with these recommendations.

12 Service Guide
