Model 6C1
Removal

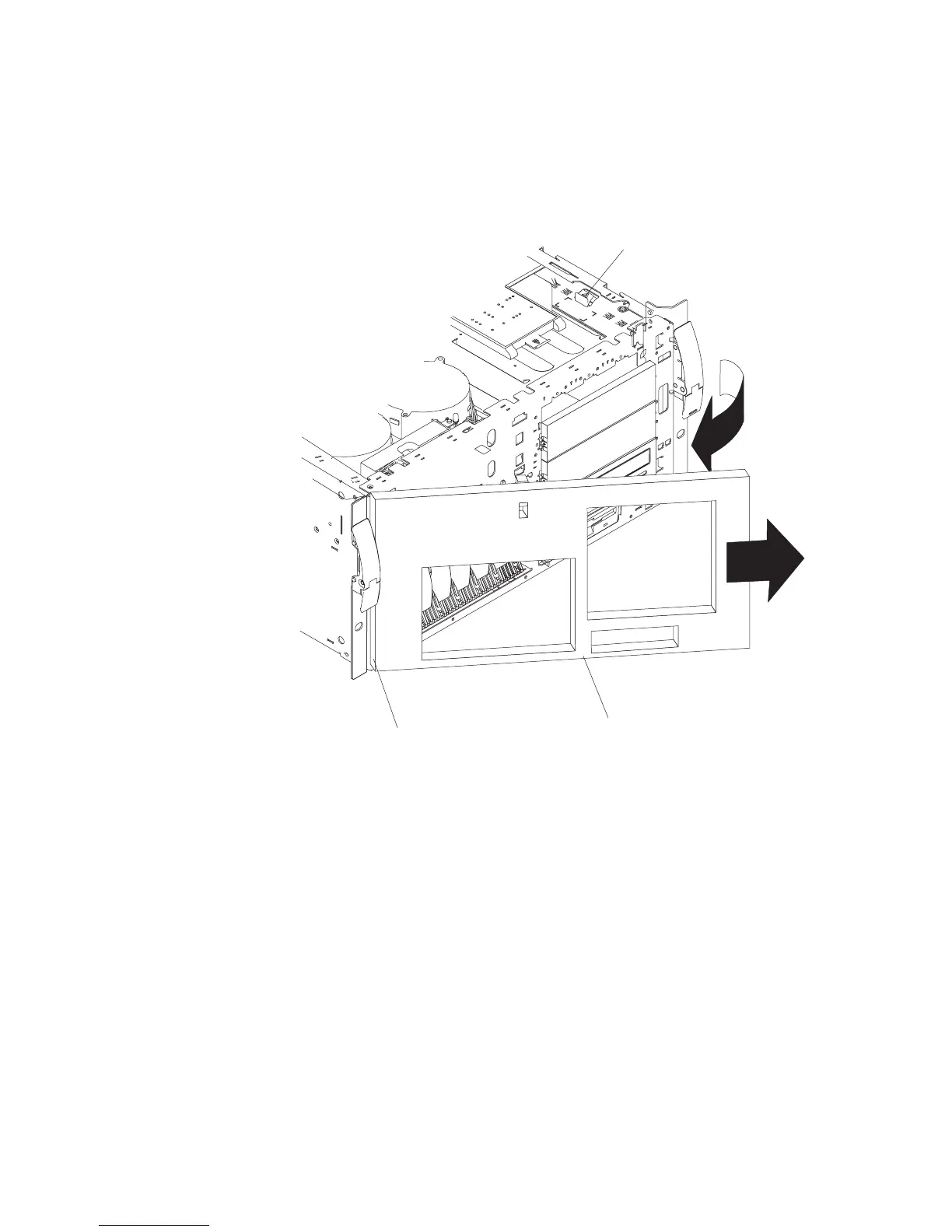

Refer to the following illustrations while you perform the steps in this procedure.
1
2
3
1 Bezel-release lever
2 Bezel
3 Side with bezel tabs and slots
To remove the bezel:
1. Remove the service access cover as described in “Covers” on page 258.
2. Move the blue bezel-release lever (1), following the curve of the lever opening.
3. Lift the bezel tabs out of the slots (3), and pull the bezel (2) away from the system
front. Store the bezel in a safe place.
Replacement
Replace in reverse order.
Chapter 9. Removal and Replacement Procedures 263
