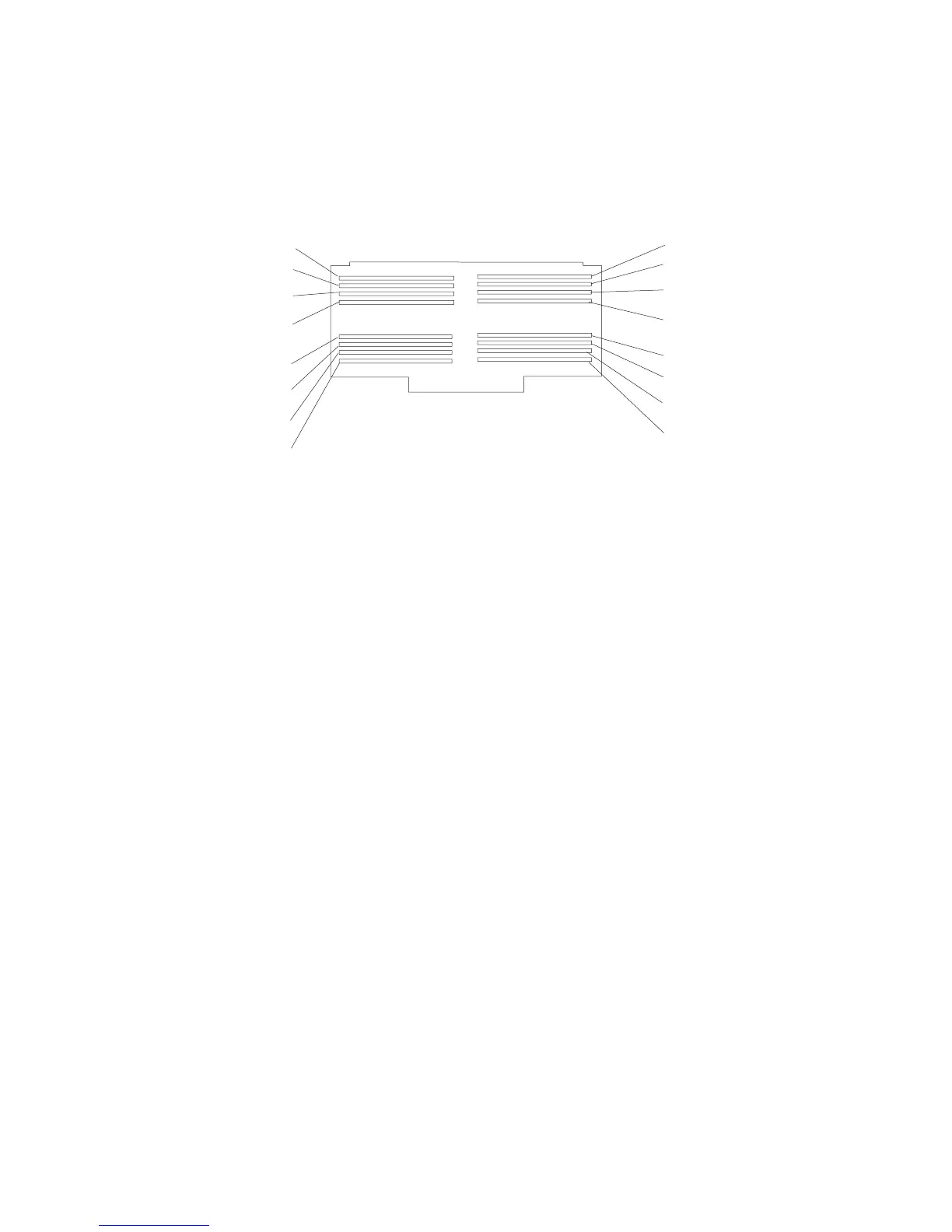

Memory DIMMs Location

Note: Memory DIMMs must be installed and removed in pairs and in the correct slots.

(Slots J1 and J2, J3 and J4, J5 and J6, and so on.)

Slot J1

Slot J3

Slot J4

Slot J2

Slot J5

Slot J6

Slot J9

Slot J10

Slot J11

Slot J12

Slot J13

Slot J14

Slot J15

Slot J16

Slot J7

Slot J8

Slot J1 Location P1-M1.1 Slot J2 Location P1-M1.2

Slot J3 Location P1-M1.3 Slot J4 Location P1-M1.4

Slot J5 Location P1-M1.5 Slot J6 Location P1-M1.6

Slot J7 Location P1-M1.7 Slot J8 Location P1-M1.8

Slot J9 Location P1-M1.9 Slot J10 Location P1-M1.10

Slot J11 Location P1-M1.11 Slot J12 Location P1-M1.12

Slot J13 Location P1-M1.13 Slot J14 Location P1-M1.14

Slot J15 Location P1-M1.15 Slot J16 Location P1-M1.16
