IBM 6C1 - Page 329

377 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

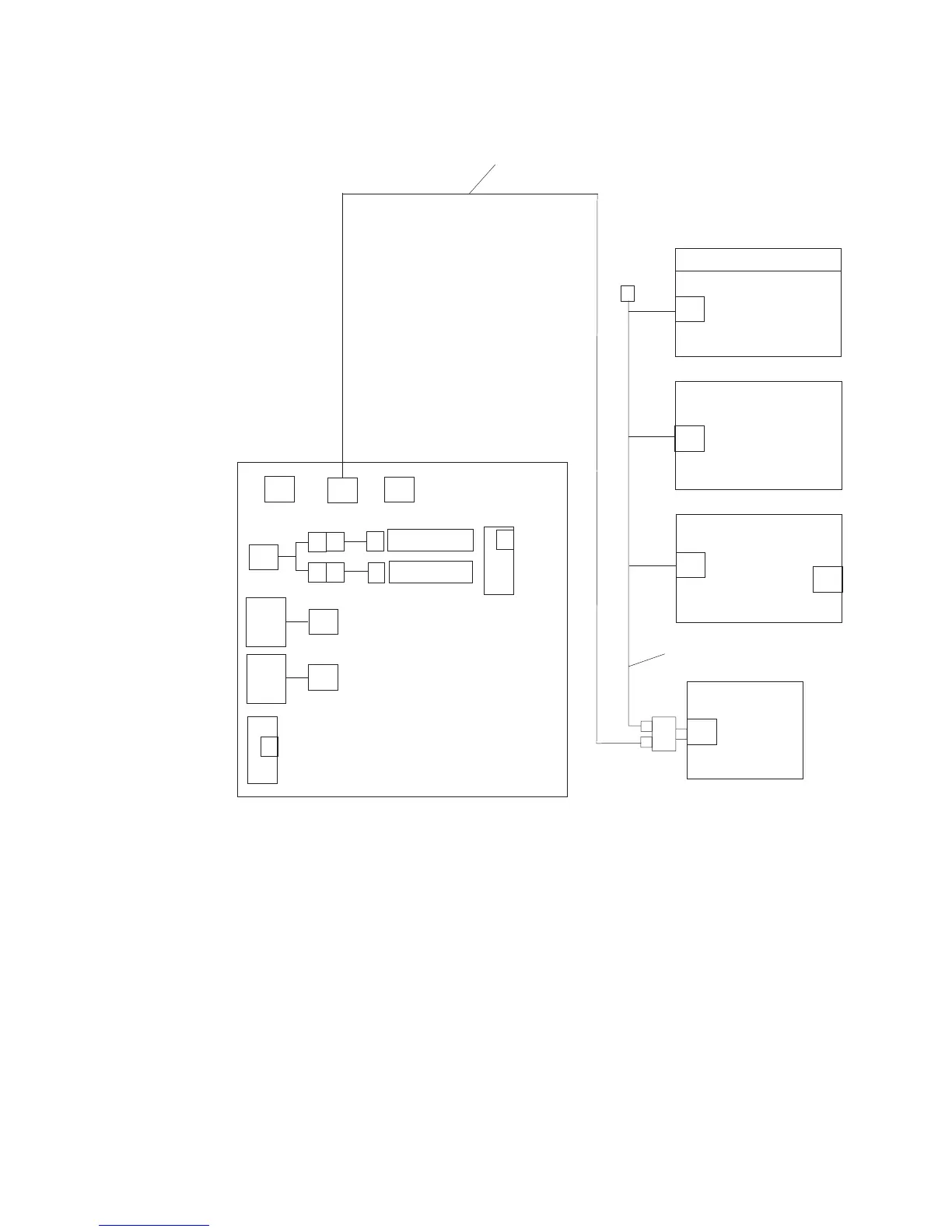

Fan

Fan

System Board

Processor Slot

Processor Slot

DASD

or

or

or

DASD

TAPE

DVD RAM

DVD RAM (SCSI)

Operator Panel

CD-ROM (IDE)

SCSI

SCSI

SCSI

SCSI

IDE

T

SCSI

Backplane

Rear

Serial

Port #1

Rear

LEDs

1 SCSI Cable 21P6923

2 SCSI Cable 53P0457

1

2

Chapter 10. Parts Information 311
