NeoGCP i7 PLUS+
- 15 -
Number [1], Number [2] Vdc ± 5.1.
- Number [1] and [2] ports supply power to 8~32 [Vdc].
- When power is supplied, there is a possibility of an inrush current depending on impedance of power
supply.
- To prevent damage from inrush current, overcurrent protection device such as a fuse or breaker is
recommended to be connected in series with power cable.

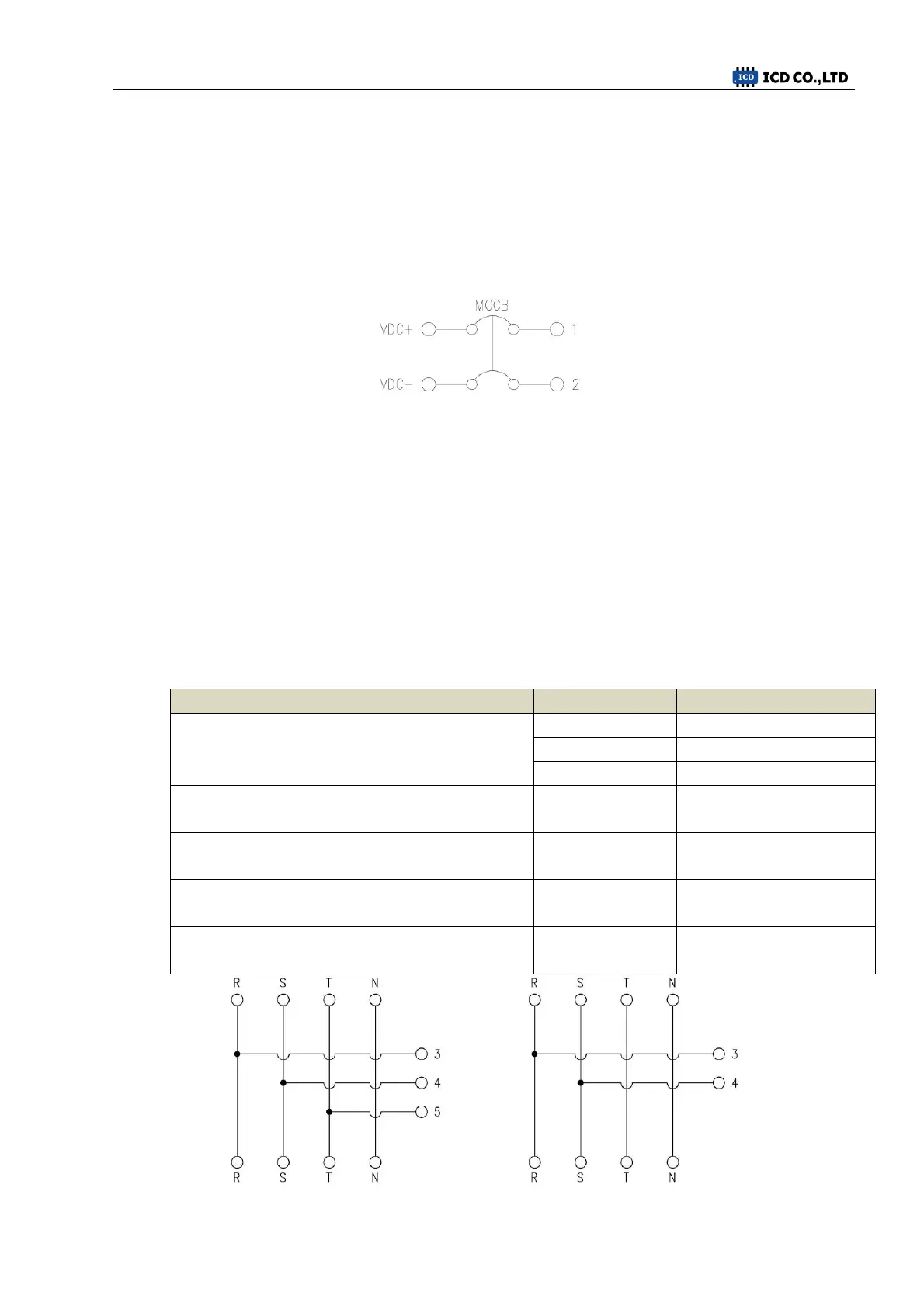

< Power supply overcurrent protection example >
Number [3] ~ Number [5] MAIN R, S, T 5.2.
- Detect Mains voltage by Numbers [3] ~ [5] ports.
- Detect Mains voltage in [AUTO] mode and gen-set starts or stops after set delay time.
- Use [MENU]→[CONTROL]→[MAINS SENSING] only when set as [MAIN R-S-T] or [R-S Voltage], not to
be used when set as [UVR SIGNAL].
- [UVR SIGNAL] can be used as corresponding contact after changing setup of contact to
[UVR SIGNAL] in [MENU]→[DI-CONFIG].
Menus that are influenced
Set value
Description
[CONTROL] → [MAINS SENSING]
[MAIN R-S-T]
Numbers [3], [4], [5]
[MAIN R-S]
Numbers [3], [4]
[UVR SIGNAL]
User Set DI Port
[CONTROL] → [MAINS SENSING] → [AUTO-
START DELAY]
0 ~ 7200 [s]
[AUTO] Run Delay Time
[CONTROL] → [MAINS SENSING] → [AUTO-
START VOLTAGE]
0 ~ 6600 [Vac]
[AUTO] Run Voltage
[CONTROL] → [MAINS SENSING] → [AUTO-
STOP DELAY]
0 ~ 7200 [s]
[AUTO] Stop Delay Time
[CONTROL] → [MAINS SENSING] → [AUTO-
STOP VOLTAGE]
0 ~ 6600 [Vac]
[AUTO] Stop Voltage
< Mains voltage detection wiring example >
