C_GOVERNOR 10.3.
- Used as governor output contact.
Menus that are influenced
Setup
Description
[SYSTEM] → [RPM] → [GOVERNOR TYPE]
FUEL, STOP
Refer to picture
shown below

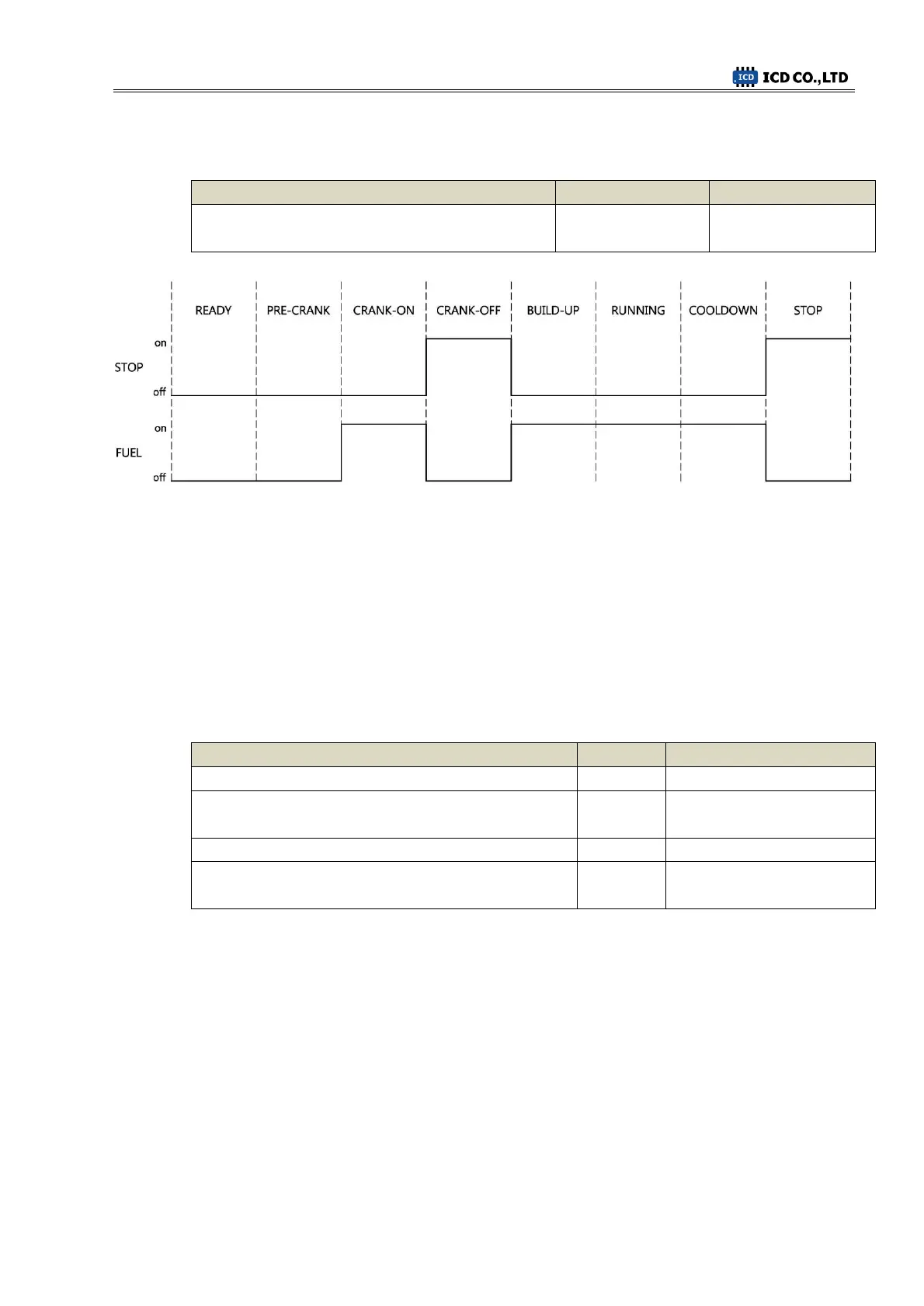

< [C_GOVERNOR] output according to operation status >
C_BREAKER CLOSE 10.4.
- Used as Breaker Close output contact in [RUN] when status is not BREAKER TRIP ALARM.
- If [BREAKER TYPE] is ACB in [MANUAL] mode, press [CLOSE] to activate.
- If [BREAKER TYPE] is ACB in [AUTO] or [FIRE], Breaker Close contact will output after set delay time.
- Will output according to setup of [SCHEDULED-RUN ACB CONTROL] in [SCHEDULED-RUN].
Menus that are influenced
Setup
Description
[CONTROL] → [BREAKER TYPE]
ACB
Breaker Close output
[CONTROL] → [ACB CLOSE DELAY TIME]
0~60[s]
Close contact output after set
time
[CONTROL] → [SCHEDULED-RUN]
Use
Setup scheduled-run
[CONTROL] → [SCHEDULED-RUN] →
[SCHEDULED-RUN ACB CONTROL]
Manual,
Auto
Setup control method of
scheduled-run ACB
C_BREAKER OPEN 10.5.
- Used as breaker open output contact in [RUN], [COOLDOWN], [STOP]. (Holding time for 2[s])
- Press [OPEN] to activate in [MANUAL] mode.
- Breaker Open contact will output automatically in [AUTO] or [FIRE].
- Output can be setup in [AUTO] or [MANUAL] mode according to [SCHEDULED-RUN ACB CONTROL] in
[SCHEDULED-RUN] status.
- If Breaker type is MCCB, Breaker Open contact will output only in Breaker Trip Alarm.
