NeoGCP i7 PLUS+
- 45 -
- Setup of OVR, UVR, OCR, OCGR, OFR, UFR, OSR, USR, fail to start, fail to stop, fail to build-up, coolant
temp high, coolant temp low, oil press high, oil press low, oil temp high, oil temp low, user temp high,
user temp low, fuel level high, fuel level low, battery voltage high, battery voltage low.
Alarm Contacts1~10 10.17.
- Used as Alarm contact of User Fault.
- Output will stop when User Fault is released.
C_AIR HEATER 10.18.
- Used as output contact when using Air-heater in [BUILD-UP].
- When using EP20, use of relevant contact is only available in EP20.
- After setup of Air Heater in [CONTROL], setup relevant output contact in [DO-CONFIG].
- If oil temp is lower than [OIL TEMP SWITCH] input status or set [A/H OPERATED TEMP], relevant
contact will output in [BUILD-UP] status.
- Once it is output, holding time will be as set [A/H OPERATED TIME].
- Output will occur only once during Running of Gen-set and then will output again when Gen-set re-
starts.
Menus that are influenced
Setup
Description
[CONTROL] → [EXT-MODULE]
EP20
When using EP20
[DO-CONFIG] → From [DO 09 SET]
Relevant
contact
Only applicable in EP20
[CONTROL] → [A/H INPUT TYPE ]
Use/ Not
use
Not use, switch, sensor,
switch+sensor
[CONTROL] → [A/H OPERATED TEMP]
Run temp
Digital output in temp below set
temp
[CONTROL] → [A/H OPERATED TIME]
Run time
Output holding time

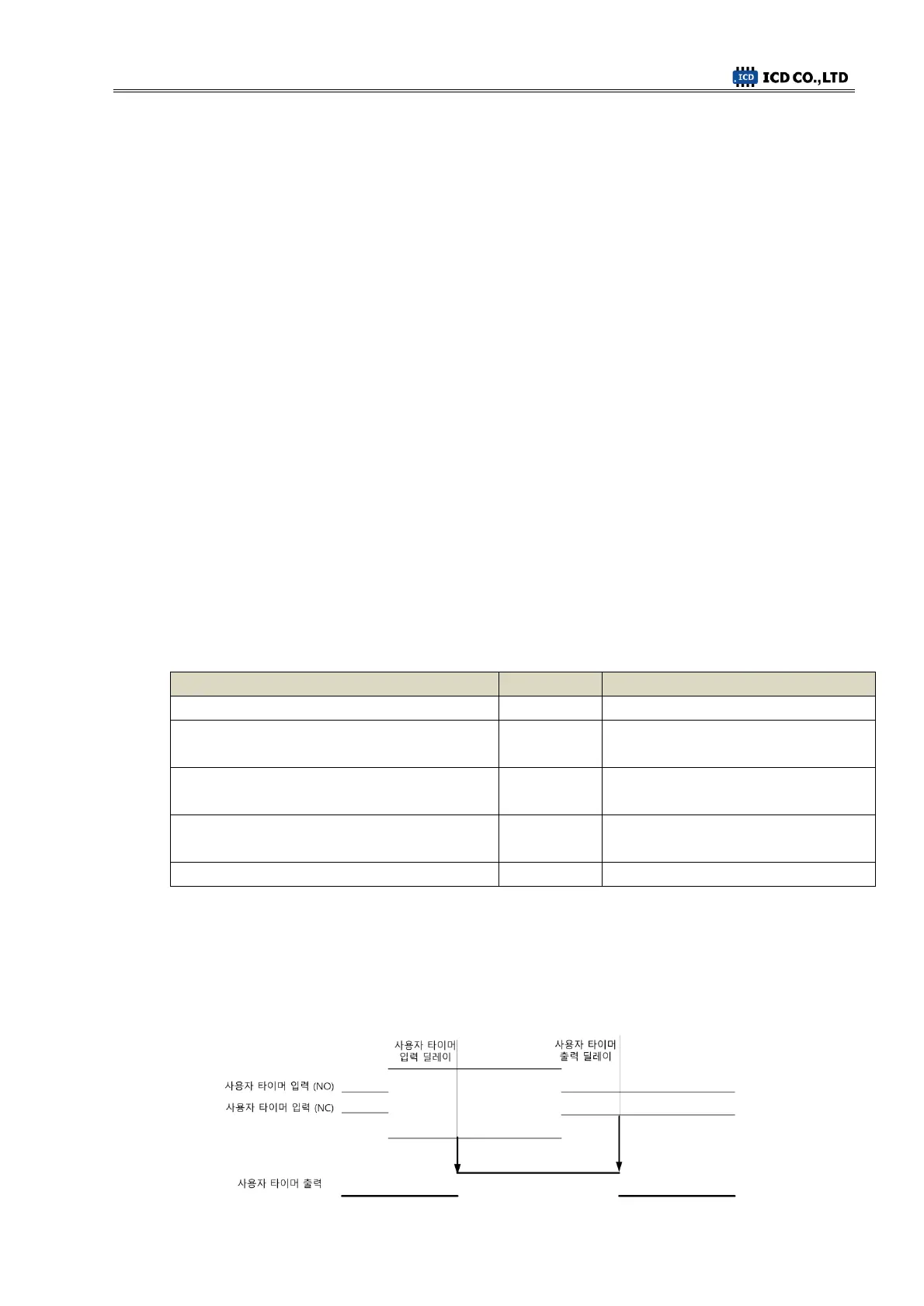

C_USER TIMER 10.19.
- Used as output contact when using Air-heater in [BUILD-UP].
- It turns ON after as much as the ON delay time set by the User timer ON signal has elapsed.
