- When using EP20, additional contact input setup possible as shown below.
Menus that are influenced
Setup
Description
[SYSTEM] → [EXT-MODULE]
EP20-1
When using EP20-1
[DO-CONFIG] → From [DO 09 SET]
Relevant
contact
C_AIR HEATER
※ Only applicable in EP20
C_PRE-CRANK 10.1.
- Used as output contact when pre-heating is needed in [PRE-CRANK] status.
- If Gen-set start signal is input in [READY], [C_CRANK] will output after [PRE-CRANK TIME] then status
will switch to [CRANK-ON].
Menus that are influenced
Setup
Description
[CONTROL] → [PRE-CRANK TIME]
0 ~ 60[ s]
[C_PRE-CRANK] will output during set
time

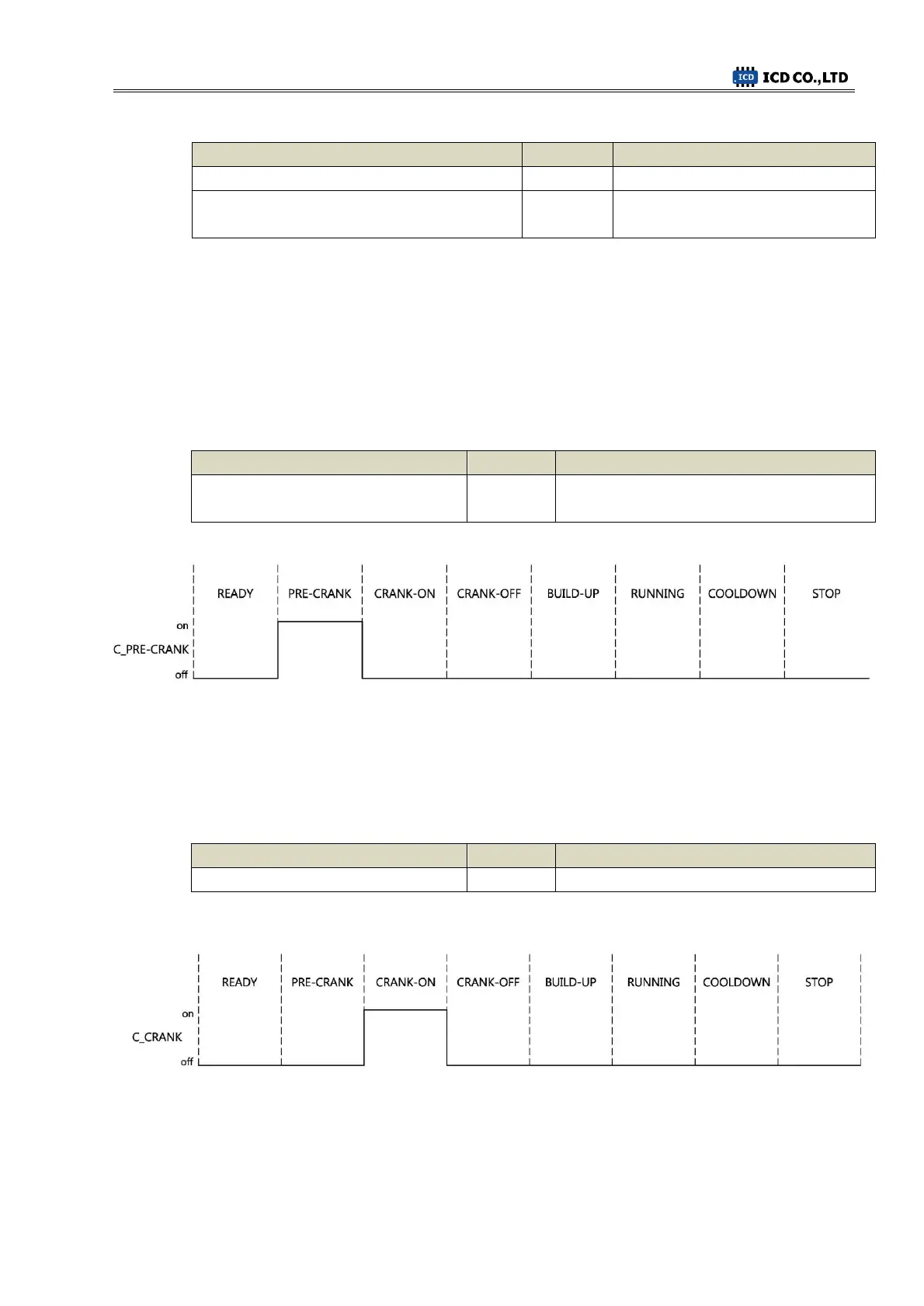

< [C_PRE-CRANK] output according to operation mode >
C_CRANK 10.2.
- Used as start motor output contact in [CRANK-ON] status.
Menus that are influenced
Setup
Description
[CONTROL] → [CRANK-ON TIME]
1 ~ 9[s]
[C_CRANK] will output during set time
< [C_CRANK] output according to operation mode >
