S_MAINS ON 10.10.
- Used as Mains On output.
S_MAINS OFF 10.11.
- Used as Mains off output.
S_GEN START 10.12.
- Used as Gen-set start output.

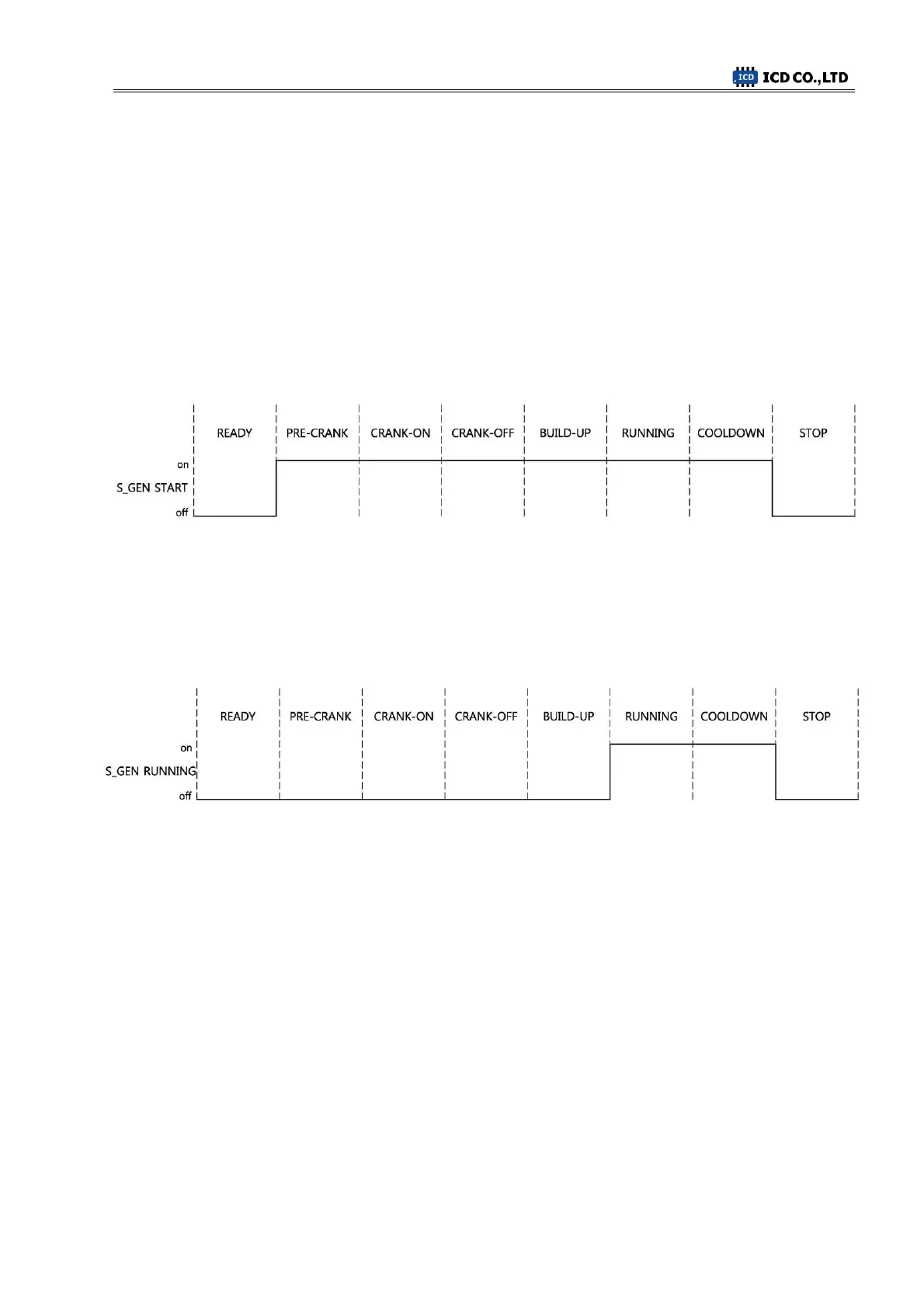

< [S_GEN START] output according to status of Gen-set >
S_GEN RUNNING 10.13.
- Used as Gen-set running output.
< [S_GEN RUNNING] output according to Gen-set status >
S_BLOCK MODE, S_MANUAL MODE, S_AUTO MODE, S_FIRE-RUN 10.14.
- Used as output contact of each mode.
S_ALL ALARM, S_WARNING, S_HEAVY FAULT, S_TRIP FAULT, S_STOP FAULT,
10.15.
S_SHUTDOWN FAULT
- Used as output contact of each Alarm status.
- Output will stop when Alarm is released.
Alarm Status 10.16.
- Used as output contact of each Alarm status.
- Output will stop when Alarm is released.
