ICD NeoGCP i7 PLUS+ - C_Alarm Buzzer; C_Alarm Reset; C_Idle Speed; C_Rated Speed

REV. N
NeoGCP i7 PLUS+
- 43 -
Menus that are influenced
Setup
Description
[CONTROL] → [SCHEDULED-RUN]
Use
Setup scheduled-run
[CONTROL] → [SCHEDULED-RUN]→
[SCHEDULED-RUN ACB CONTROL]
MANUAL,
AUTO
Setup scheduled-run ACB
control method
[CONTROL] → [BREAKER TYPE]
MCCB
Use MCCB
C_ALARM BUZZER 10.6.
- Used as Alarm Buzzer output contact when Warning, Trip, Shut down occurs.
- When Alarm occurs, contact will output during [ALARM HORN TIME], and when it is set as 0, Alarm
Reset is only possible manually.
Menus that are influenced
Setup
Description
[SYSTEM] → [BUTTON BEEP] → [ALARM HORN
TIME]
0 ~ 600 [s]
Contact output during
set time
C_ALARM RESET 10.7.
- Used as alarm reset contact.
- Signal will output during input of [ALARM RESET] or during activation of [RESET] button.
C_IDLE SPEED 10.8.
- Used as IDLE speed output contact
- If [IDLE RUN] is input, contact output will continue regardless of Run status.
- If [IDLE RUN] is not input, contact will output during set [IDLE TIME].
Menus that are influenced
Setup
Description
[DI-CONFIG] → [IDLE RUN]
Use
Contact output during [IDLE RUN] input
[CONTROL] → [IDLE TIME]
0 ~ 60[s]
Contact output during set time
C_RATED SPEED 10.9.
- Used as rated speed output contact.
- If [IDLE TIME] is not 0 in [BUILD-UP] status, [C_IDLE SPEED] will output, and if [IDLE TIME] is 0,
[C_RATED SPEED] will output.

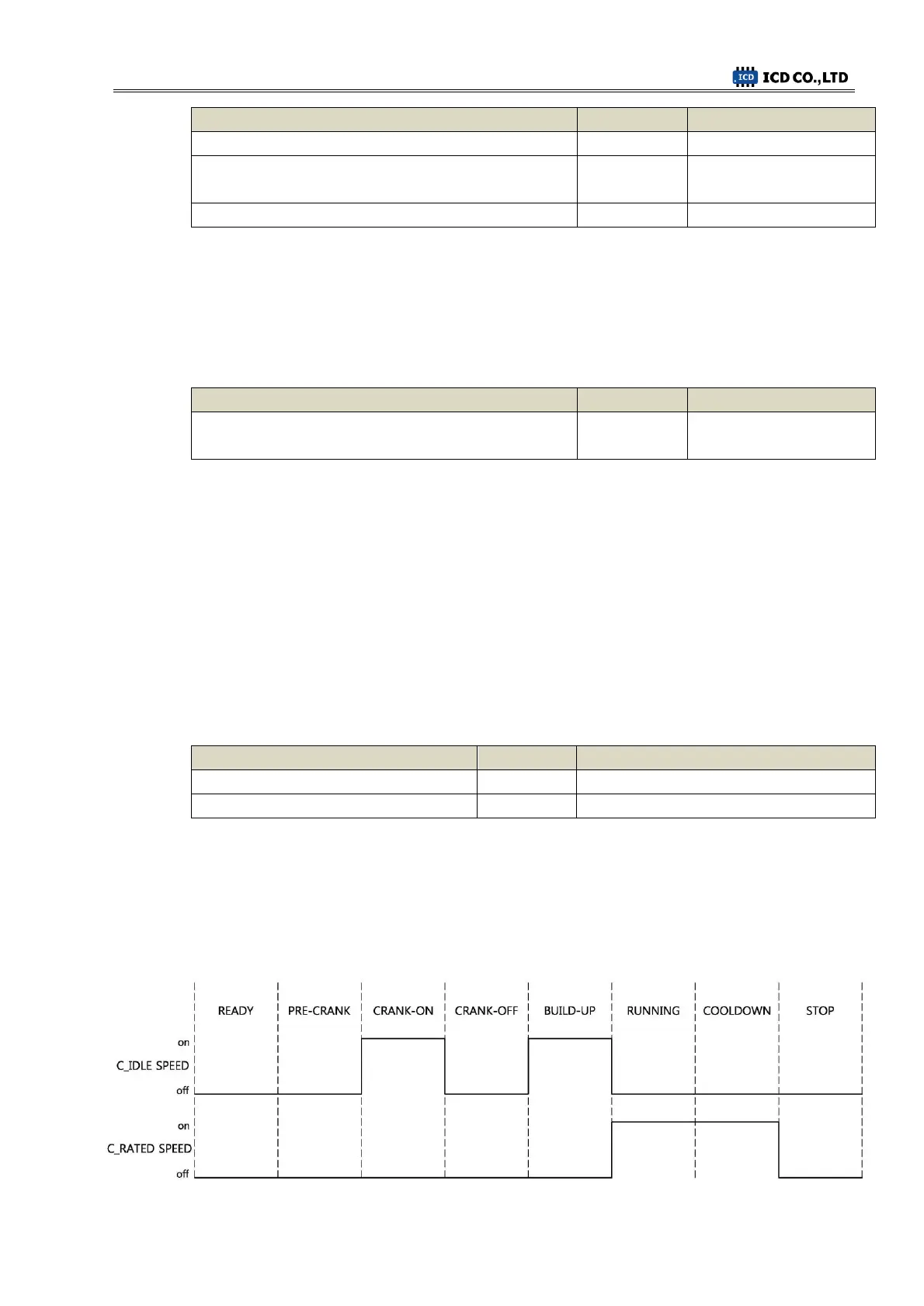

< [C_IDLE SPEED], [C_RATED SPEED] output according to Gen-set status >
