4-14
Using the Tools Page
Rev AA
Touch the General button on the Printhead Diagnostics page access to the
general diagnostic parameters.
The printhead general diagnostics page allows you access the following
parameters:
• Printer Mode: Indicates if the
printer is configured as intermittent or
continuous motion
•
Printer Hand: Indicates what handing the printer is configured as
• Print Signal Logic: Indicates whether the
print signal is Positive or
Negative Edge Triggering.
•
Print Test Image: Triggers the printing of a test image.
Encoder Profiling
Encoder profiling is designed for continuous motion applications where
there may be doubt over suitability of the application for the VJ6210
printer due to excessive linear speed or acceleration problems.
Encoder profiling allows the VJ6210 printer to capture the behavior of the
packaging film from the encoder and plot the information onto a useful
CLARiTY screen which also shows an 'on-line oscilloscope' of the machine
inputs and outputs at the same time.

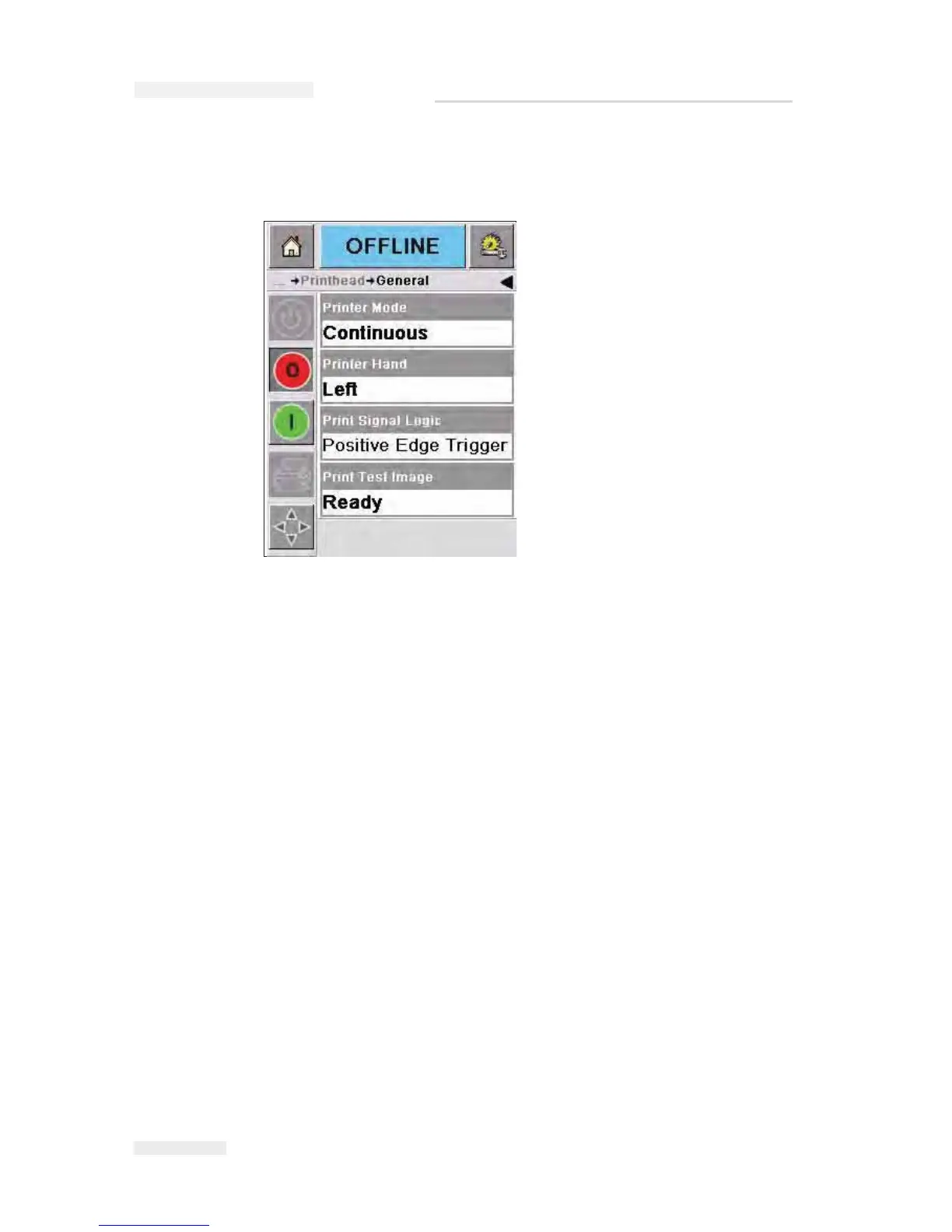

Figure 4-14: Printhead General Diagnostics Page
ICE Pegasus Service Manual
