REPEATER AND DUPLEX OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Repeater operation
When using a repeater, the transmit frequency is shifted
from the receive frequency by the offset frequency.
(p. 110)
This is called duplex operation. It is convenient to program
repeater information into memory channels.
(p. 74)
q Set the receive frequency (repeater output frequency).
w Set the shift direction of the transmit frequency.
(–DUP or
+DUP; see p. 31 for details.)
• When the auto repeater function is in use (U.S.A. version only),
this selection and step e are not necessary. (p. 32)
e Push and hold [TONE](7) for 1
sec. to activate the subaudible
tone encoder, according to re-
peater requirements.
• “TONE” appears.
Refer to p. 121 for tone frequency
settings.
r Push and hold [PTT] to transmit.
• The displayed frequency automati-
cally changes to the transmit frequency (repeater input fre-
quency).
• If “OFF” appears, check the offset frequency or shift direction.
(p. 30)
t Release [PTT] to receive.
y Push and hold [SQL] to check whether the other station’s
transmit signal can be directly received or not.
U.S.A. version:
Auto repeater function uses standard values of the re-
peater tone frequency and offset frequency.

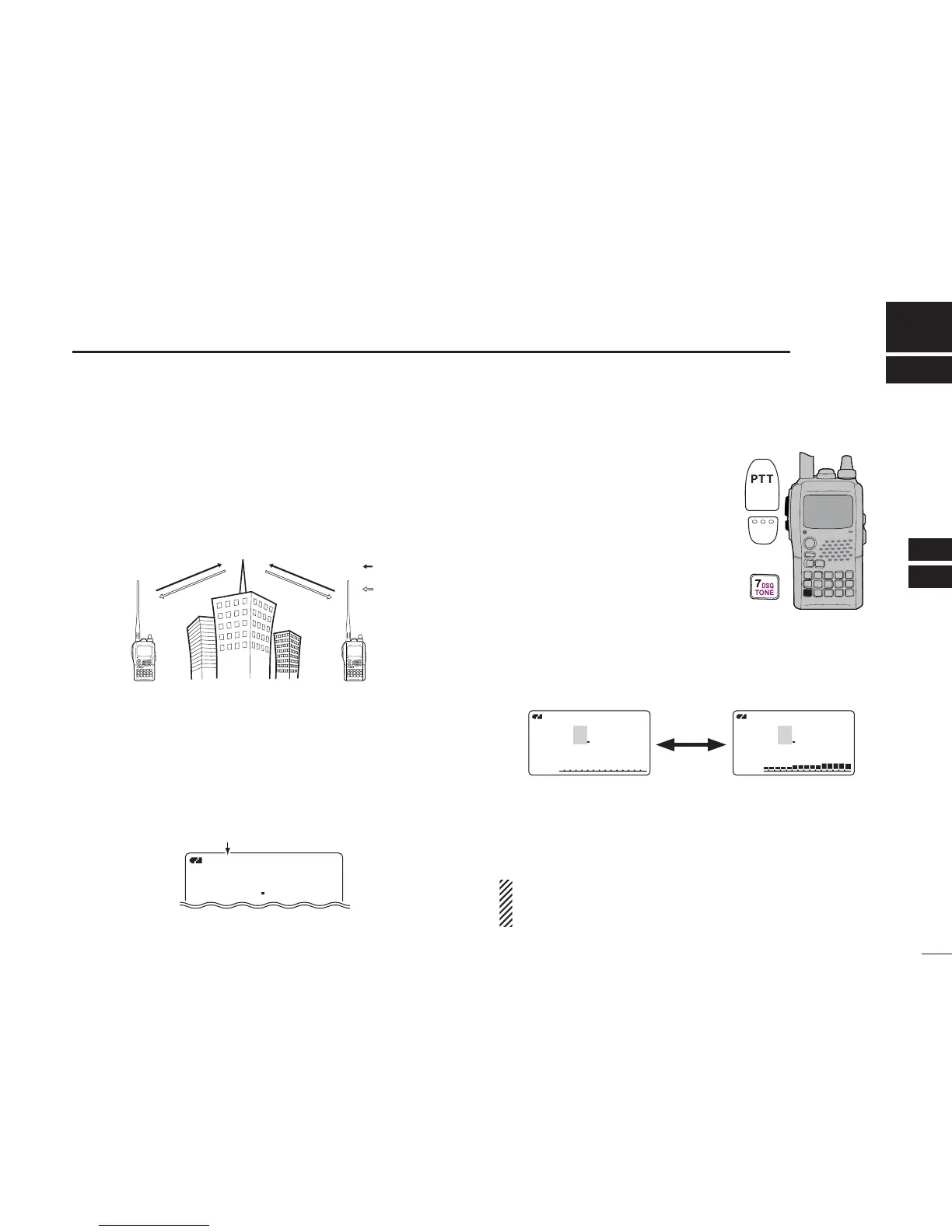

Station A
Station B
Repeater
145.300 MHz
144.700 MHz
144.700 MHz
145.300 MHz
Uplink
Downlink
(transmitting freq.)
(receiving freq.)
A
To Next Page
