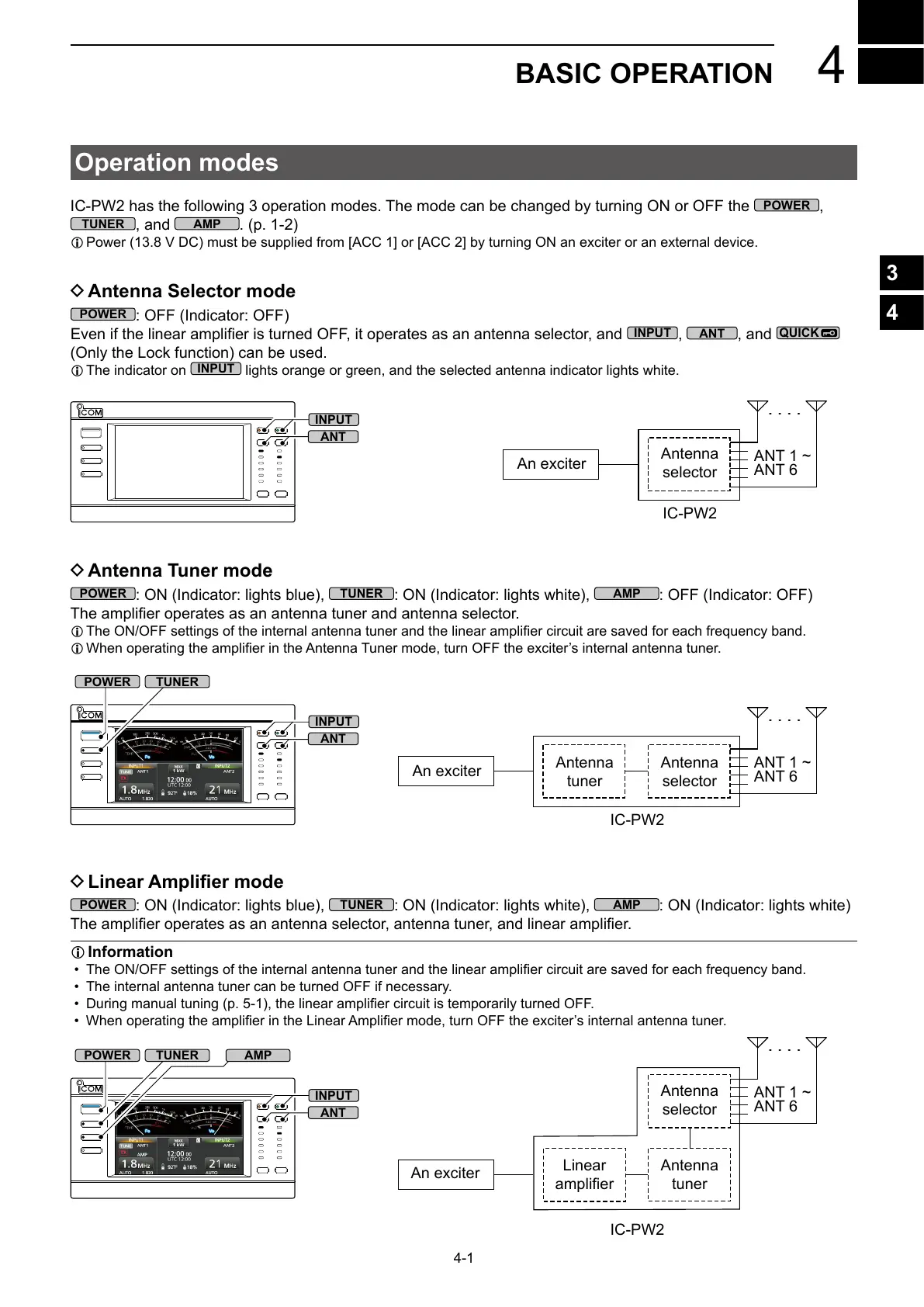

BASIC OPERATION
Operation modes
IC-PW2 has the following 3 operation modes. The mode can be changed by turning ON or OFF the
POWER
,
TUNER
, and
AMP
. (p. 1-2)
L Power (13.8 V DC) must be supplied from [ACC 1] or [ACC 2] by turning ON an exciter or an external device.
D Antenna Selector mode
POWER
: OFF (Indicator: OFF)

INPUT
,
ANT
, and
QUICK
(Only the Lock function) can be used.
L The indicator on
INPUT
lights orange or green, and the selected antenna indicator lights white.
D Antenna Tuner mode
POWER
: ON (Indicator: lights blue),
TUNER
: ON (Indicator: lights white),
AMP
: OFF (Indicator: OFF)

L 
L 
D Linear Amplier mode
POWER
: ON (Indicator: lights blue),
TUNER
: ON (Indicator: lights white),
AMP
: ON (Indicator: lights white)

L Information
• 
• The internal antenna tuner can be turned OFF if necessary.
• 
• 
IC-PW2
ANT 1 ~
ANT 6
An exciter
Antenna
selector
IC-PW2
ANT 1 ~
ANT 6
An exciter
Antenna
selector
Antenna
tuner
IC-PW2
ANT 1 ~
ANT 6
An exciter
Antenna
selector
Antenna
tuner
Linear

INPUT
ANT
POWER
TUNER
INPUT
ANT
POWER
TUNER
AMP
INPUT
ANT
