BASIC OPERATION
4
4
4-3

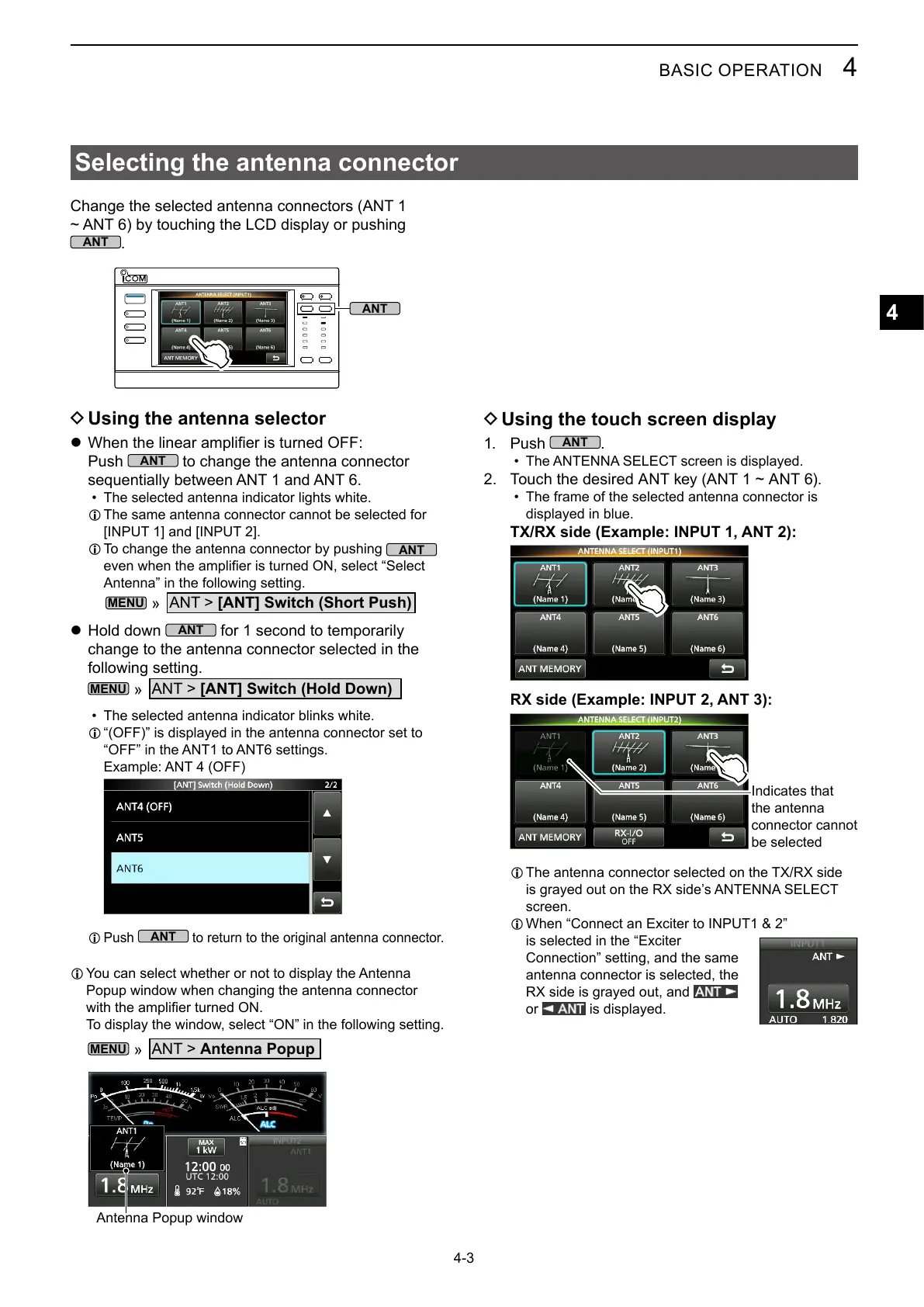

Selecting the antenna connector
D Using the touch screen display
1. Push
.
• The ANTENNA SELECT screen is displayed.
2. Touch the desired ANT key (ANT 1 ~ ANT 6).
• The frame of the selected antenna connector is
displayed in blue.
TX/RX side (Example: INPUT 1, ANT 2):
RX side (Example: INPUT 2, ANT 3):
Indicates that
the antenna
connector cannot
be selected
L The antenna connector selected on the TX/RX side
screen.
L When “Connect an Exciter to INPUT1 & 2”
is selected in the “Exciter
Connection” setting, and the same
antenna connector is selected, the
RX side is grayed out, and
or
is displayed.
Change the selected antenna connectors (ANT 1
~ ANT 6) by touching the LCD display or pushing
.
D Using the antenna selector
z
Push
to change the antenna connector
• The selected antenna indicator lights white.
L The same antenna connector cannot be selected for
[INPUT 1] and [INPUT 2].
L To change the antenna connector by pushing
Antenna” in the following setting.
»
ANT > [ANT] Switch (Short Push)
z Hold down
for 1 second to temporarily
change to the antenna connector selected in the
following setting.
»
ANT > [ANT] Switch (Hold Down)
• The selected antenna indicator blinks white.
L “(OFF)” is displayed in the antenna connector set to
“OFF” in the ANT1 to ANT6 settings.
Example: ANT 4 (OFF)
L Push
to return to the original antenna connector.
L You can select whether or not to display the Antenna
Popup window when changing the antenna connector
To display the window, select “ON” in the following setting.
»
ANT > Antenna Popup
Antenna Popup window
To Next Page
