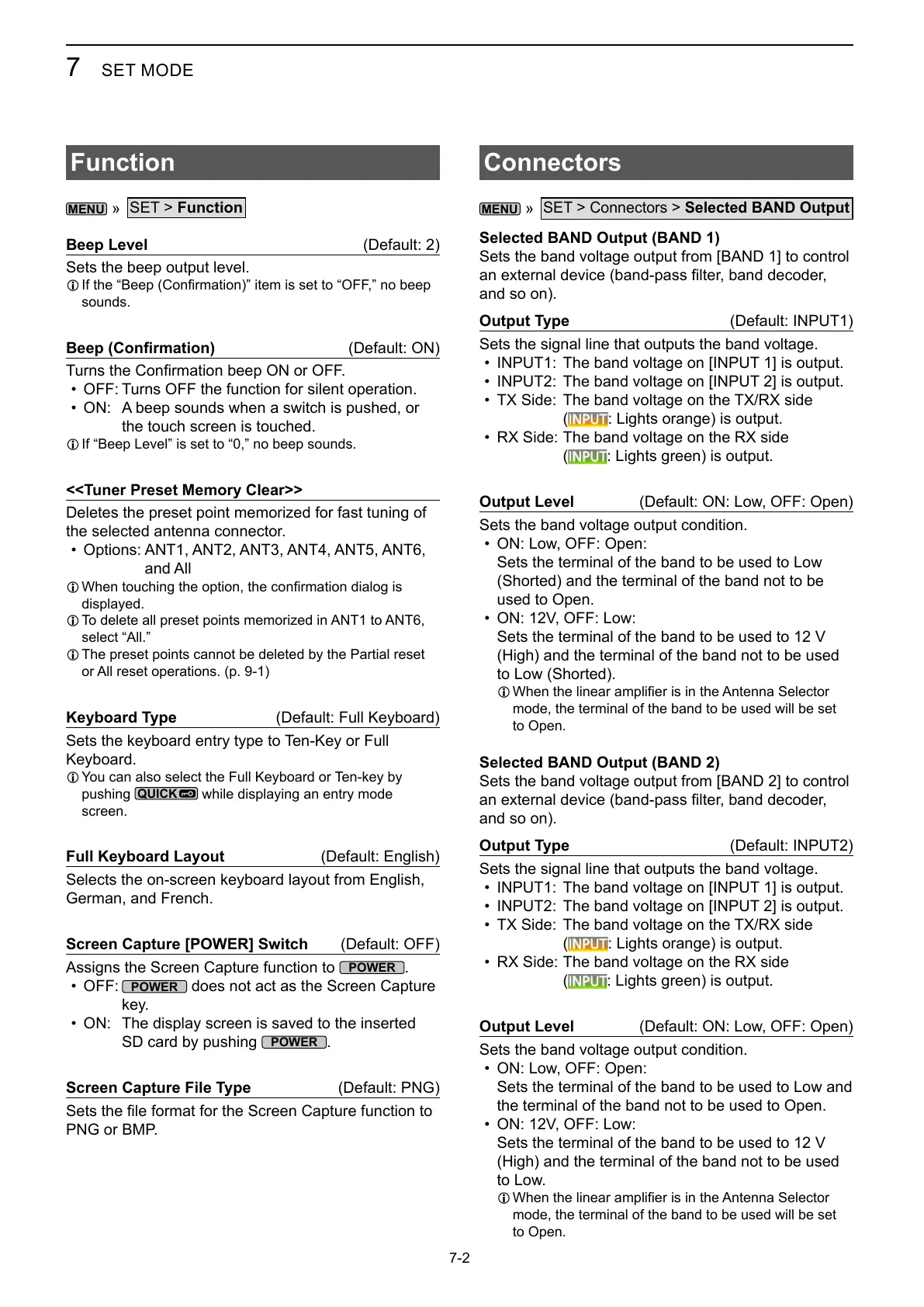

7
SET MODE
7-2
Function
»
SET > Function
Beep Level (Default: 2)
Sets the beep output level.
L
sounds.
Beep (Conrmation) (Default: ON)
•
• ON: A beep sounds when a switch is pushed, or
the touch screen is touched.
L If “Beep Level” is set to “0,” no beep sounds.
<<Tuner Preset Memory Clear>>
Deletes the preset point memorized for fast tuning of
the selected antenna connector.
• Options: ANT1, ANT2, ANT3, ANT4, ANT5, ANT6,
and All
L
displayed.
L To delete all preset points memorized in ANT1 to ANT6,
select “All.”
L The preset points cannot be deleted by the Partial reset
or All reset operations. (p. 9-1)
Keyboard Type
Keyboard.
L
pushing
while displaying an entry mode
screen.
Full Keyboard Layout (Default: English)
Selects the on-screen keyboard layout from English,
Screen Capture [POWER] Switch
Assigns the Screen Capture function to
.
•
does not act as the Screen Capture
key.
• ON: The display screen is saved to the inserted
SD card by pushing
.
Screen Capture File Type (Default: PNG)
PNG or BMP.
Connectors
»
SET > Connectors > Selected BAND Output
Selected BAND Output (BAND 1)
Sets the band voltage output from [BAND 1] to control
and so on).
Output Type (Default: INPUT1)
Sets the signal line that outputs the band voltage.
• INPUT1: The band voltage on [INPUT 1] is output.
• INPUT2: The band voltage on [INPUT 2] is output.
• TX Side: The band voltage on the TX/RX side
(
: Lights orange) is output.
• RX Side: The band voltage on the RX side
( : Lights green) is output.
Output Level
Sets the band voltage output condition.
•
Sets the terminal of the band to be used to Low
(Shorted) and the terminal of the band not to be
used to Open.
•
Sets the terminal of the band to be used to 12 V
(High) and the terminal of the band not to be used
to Low (Shorted).
L
mode, the terminal of the band to be used will be set
to Open.
Selected BAND Output (BAND 2)
Sets the band voltage output from [BAND 2] to control
and so on).
Output Type (Default: INPUT2)
Sets the signal line that outputs the band voltage.
• INPUT1: The band voltage on [INPUT 1] is output.
• INPUT2: The band voltage on [INPUT 2] is output.
• TX Side: The band voltage on the TX/RX side
(
: Lights orange) is output.
• RX Side: The band voltage on the RX side
( : Lights green) is output.
Output Level
Sets the band voltage output condition.
•
Sets the terminal of the band to be used to Low and
the terminal of the band not to be used to Open.
•
Sets the terminal of the band to be used to 12 V
(High) and the terminal of the band not to be used
to Low.
L
mode, the terminal of the band to be used will be set
to Open.
