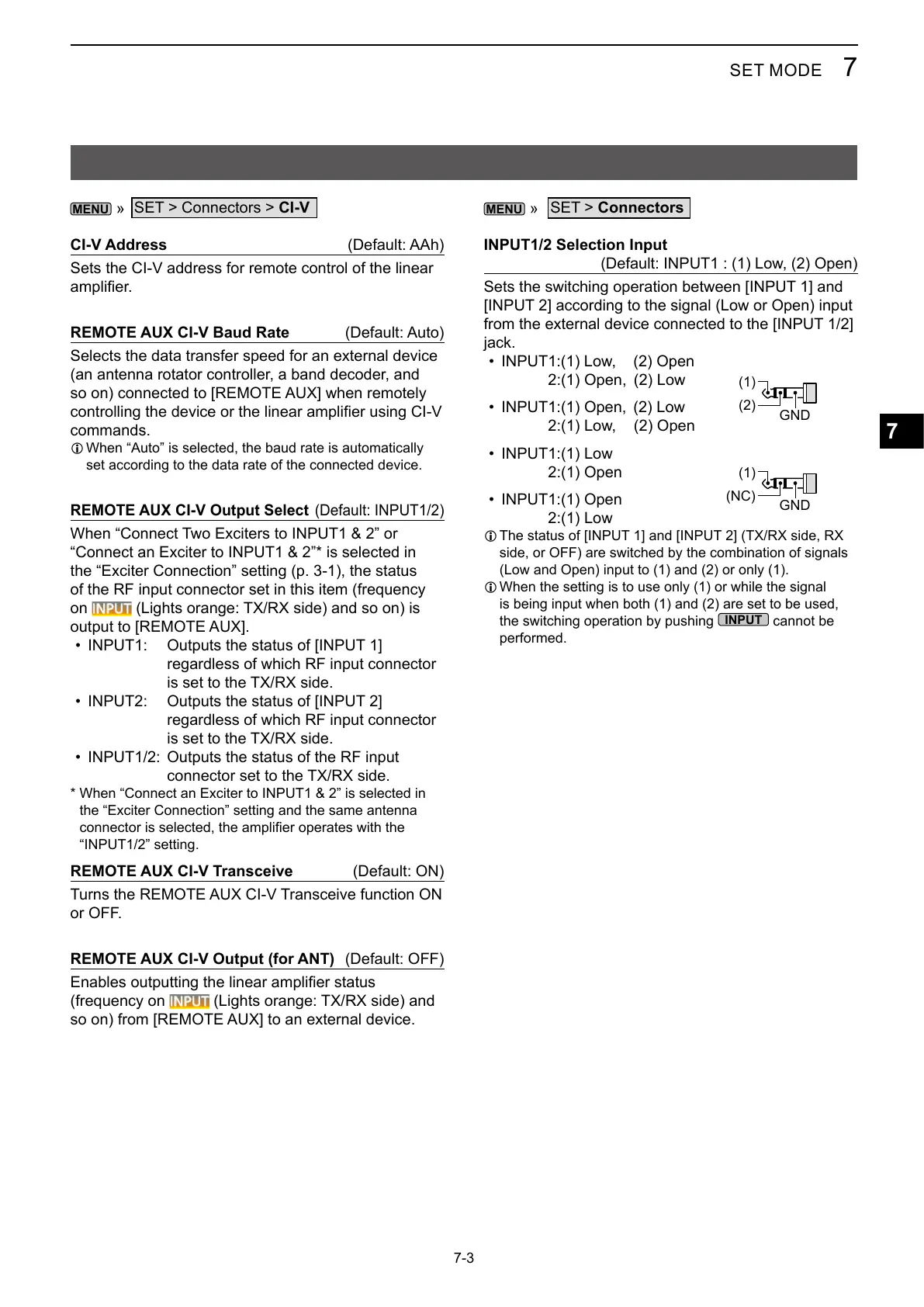

SET MODE
7
7
7-3
»
SET > Connectors
INPUT1/2 Selection Input
(Default: INPUT1 : (1) Low, (2) Open)
Sets the switching operation between [INPUT 1] and
[INPUT 2] according to the signal (Low or Open) input
from the external device connected to the [INPUT 1/2]
jack.
• INPUT1:(1) Low, (2) Open
2:(1) Open, (2) Low
• INPUT1:(1) Open, (2) Low
2:(1) Low, (2) Open
• INPUT1:(1) Low
2:(1) Open
• INPUT1:(1) Open
2:(1) Low
L The status of [INPUT 1] and [INPUT 2] (TX/RX side, RX
(Low and Open) input to (1) and (2) or only (1).
L When the setting is to use only (1) or while the signal
is being input when both (1) and (2) are set to be used,
the switching operation by pushing
cannot be
performed.
GND
(1)
(NC)
(1)
(2)
GND
»
SET > Connectors > CI-V
CI-V Address (Default: AAh)
Sets the CI-V address for remote control of the linear
REMOTE AUX CI-V Baud Rate (Default: Auto)
Selects the data transfer speed for an external device
(an antenna rotator controller, a band decoder, and
so on) connected to [REMOTE AUX] when remotely
commands.
L When “Auto” is selected, the baud rate is automatically
set according to the data rate of the connected device.
REMOTE AUX CI-V Output Select
(Default: INPUT1/2)
When “Connect Two Exciters to INPUT1 & 2” or
“Connect an Exciter to INPUT1 & 2”* is selected in
the “Exciter Connection” setting (p. 3-1), the status
on (Lights orange: TX/RX side) and so on) is
output to [REMOTE AUX].
• INPUT1: Outputs the status of [INPUT 1]
is set to the TX/RX side.
• INPUT2: Outputs the status of [INPUT 2]
is set to the TX/RX side.
•
connector set to the TX/RX side.
* When “Connect an Exciter to INPUT1 & 2” is selected in
the “Exciter Connection” setting and the same antenna
“INPUT1/2” setting.
REMOTE AUX CI-V Transceive (Default: ON)
Turns the REMOTE AUX CI-V Transceive function ON
REMOTE AUX CI-V Output (for ANT)
(frequency on
(Lights orange: TX/RX side) and
so on) from [REMOTE AUX] to an external device.
To Next Page
