Icom ID-51A Basic Instructions

63
6
D-STAR OPERATION
New2001 New2001
Hold down q
for 1 sec-
ond.

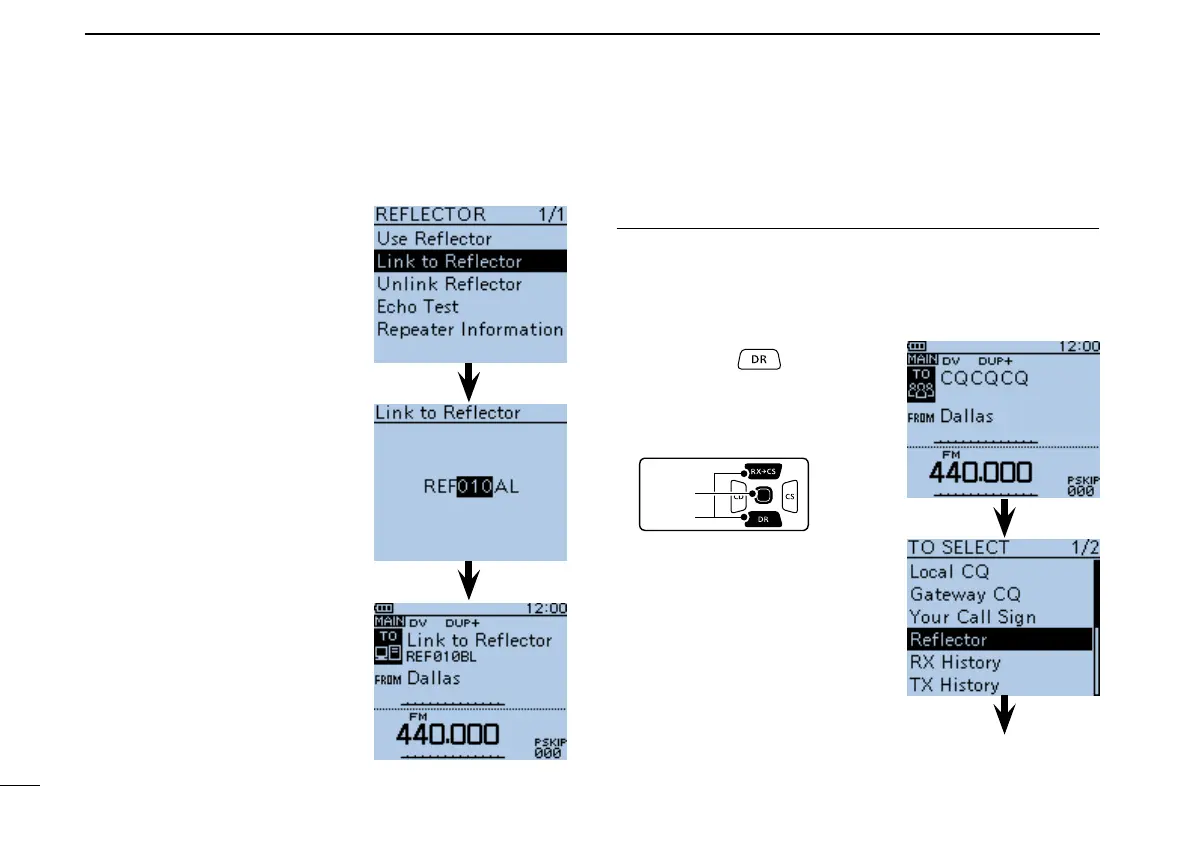

Push D-pad( w ) to select “TO,”
and then push D-pad(Ent).
Push D-pad( e ) to select
“Reflector,” and then push D-
pad(Ent).
 •The“REFLECTOR”screenap-
pears.
Push D-pad( r ) to select
“Link to Reflector,” and then
push D-pad(Ent).
Push D-pad( t ) to select “Di-
rect Input,” and then push D-
pad(Ent).
Push D-pad( y ) to select the
reflector number.
(Example: 010)
Push D-pad( u ) to move the
cursor.
Push D-pad( i ) to select
module letter. (Example: B).
Push D-pad(Ent). o
 •The transceiver returns to the
DR screen.
 •“Link to Reector” and “REF-
010BL” are displayed in “TO.”
!0Holddown[PTT]tolinktothe
reflector.
 •TheTX/RXindicatorlightsred.
D-pad
(�)
(Ent)
Go to step r
UsingtheTXHistory
The TX History stores the up to 5 reflectors that your access
repeater linked to before.
Example: Select the “REF002AL” in the TX History.
Reflector operation ■
Linking to a reflector (Continued) D

Icom ID-51A Specifications

General

Frequency Range	144-148 MHz, 430-450 MHz
Antenna Connector	SMA
GPS Receiver	Yes
Waterproof	IPX7
Modes	FM, DV
Weight	255 g
Memory Channels	1304 channels
Output Power	5W (High), 2.5W (Middle), 0.5W (Low)
