9 Specifications
Subsampling
Mode
Horizontal
*4)
+ Vertical
*4)
Method
H + V: Color subsampling
Frame rate w/ 2x subsampling, 800 x 600
pixels
fps
71
71
85
Frame rate w/ 4x subsampling, 400 x 300
pixels
fps
252
231
250
Frame rate w/ 8x subsampling, 200 x 150
pixels
fps
627
575
627
Frame rate w/ 16x subsampling, 100 x 74
pixels
fps
870
797
869
Hardware trigger
Mode
Asynchronous
Asynchronous
Asynchronous
Trigger delay with rising edge
µs
19.7 ±0.25
< 5
< 5
Trigger delay with falling edge
µs
38.0 ±0.25
< 5
< 5
Additive trigger delay (optional)
µs
15 µs-4 s
15 µs-4 s
15 µs-4 s
Sensor delay to exposure start
µs
< 200
*2)
< 200
*2)
< 200
*2)
Connected load
*5)
USB uEye
GigE uEye SE
GigE uEye HE
W
0.5-1.1
2.4-3.4
3.0-4.3
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate.
*5)
The connected load depends on the sensor model and the pixel clock setting.
Relative sensor sensitivity
Color

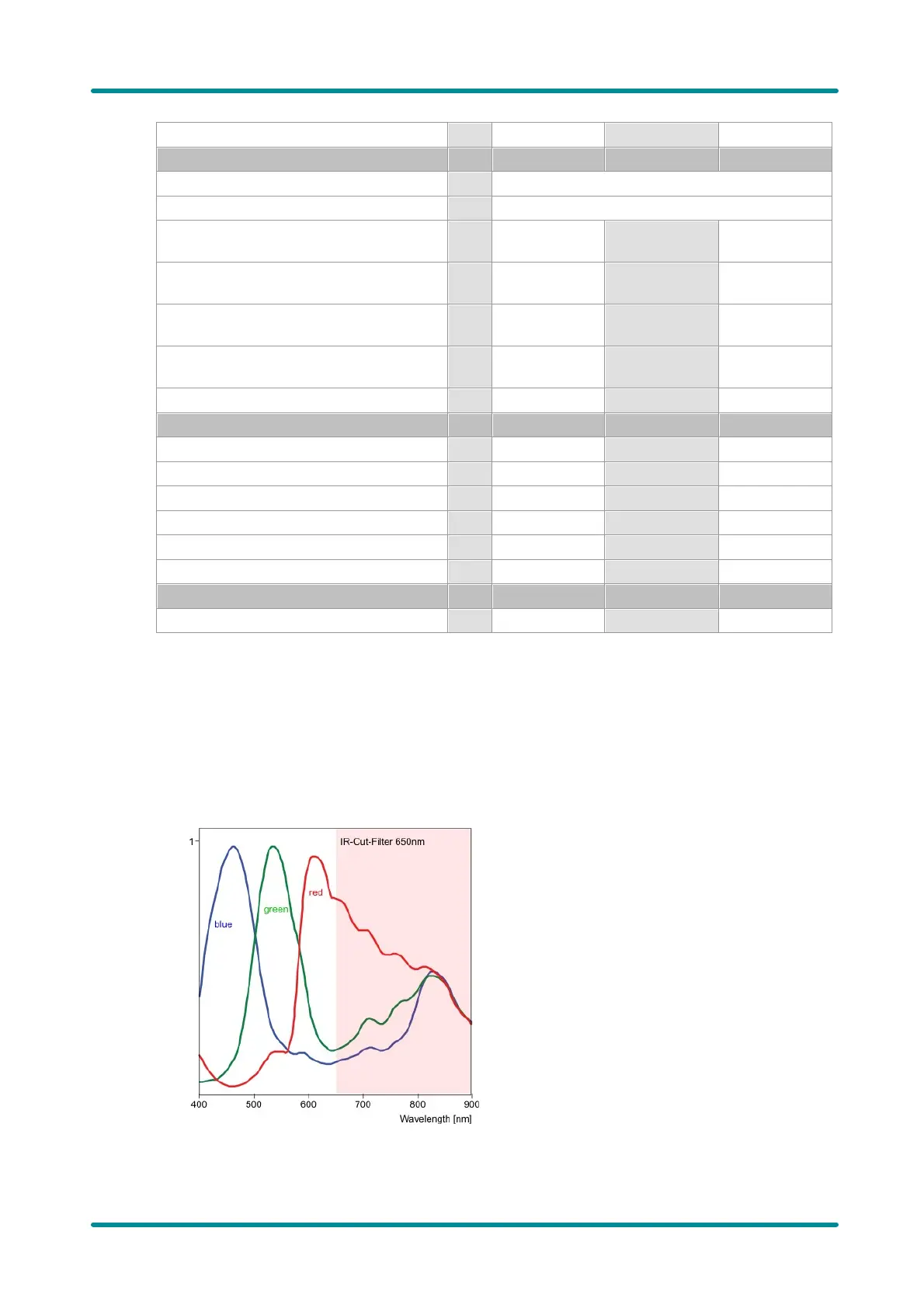

Figure 96: Sensor sensitivity of the UI-155x / UI-555x

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
