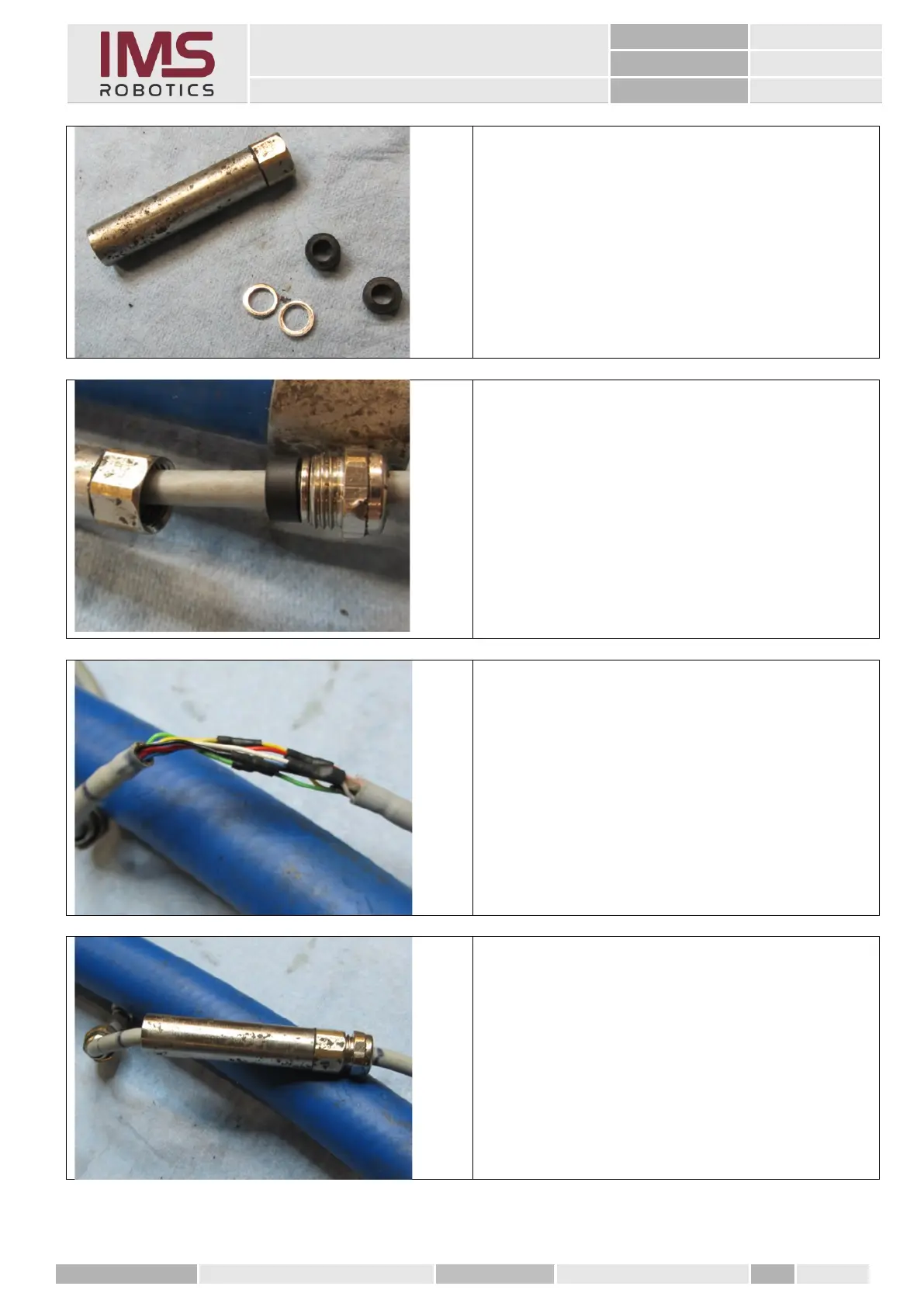

Two new crimp rubber rings and new separating
washers must be used for mounting the cable sleeve
12. Slide the crimp rubber rings and separating
washers onto the cable
13. Cut 6 pieces of heat shrink tubes approx. 10
mm long and slide them onto the wires
14. Solder the wires as per the colour
15. Slide the heat shrink tube over the solder joints
and shrink it
16. Push the sleeve over the soldered joint and
screw the cover of the mounted cable entry
tightly
The position of the sleeve on the cable is now fixed
