IMS ROBOTICS MICRO S - Page 77

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
77 of 113

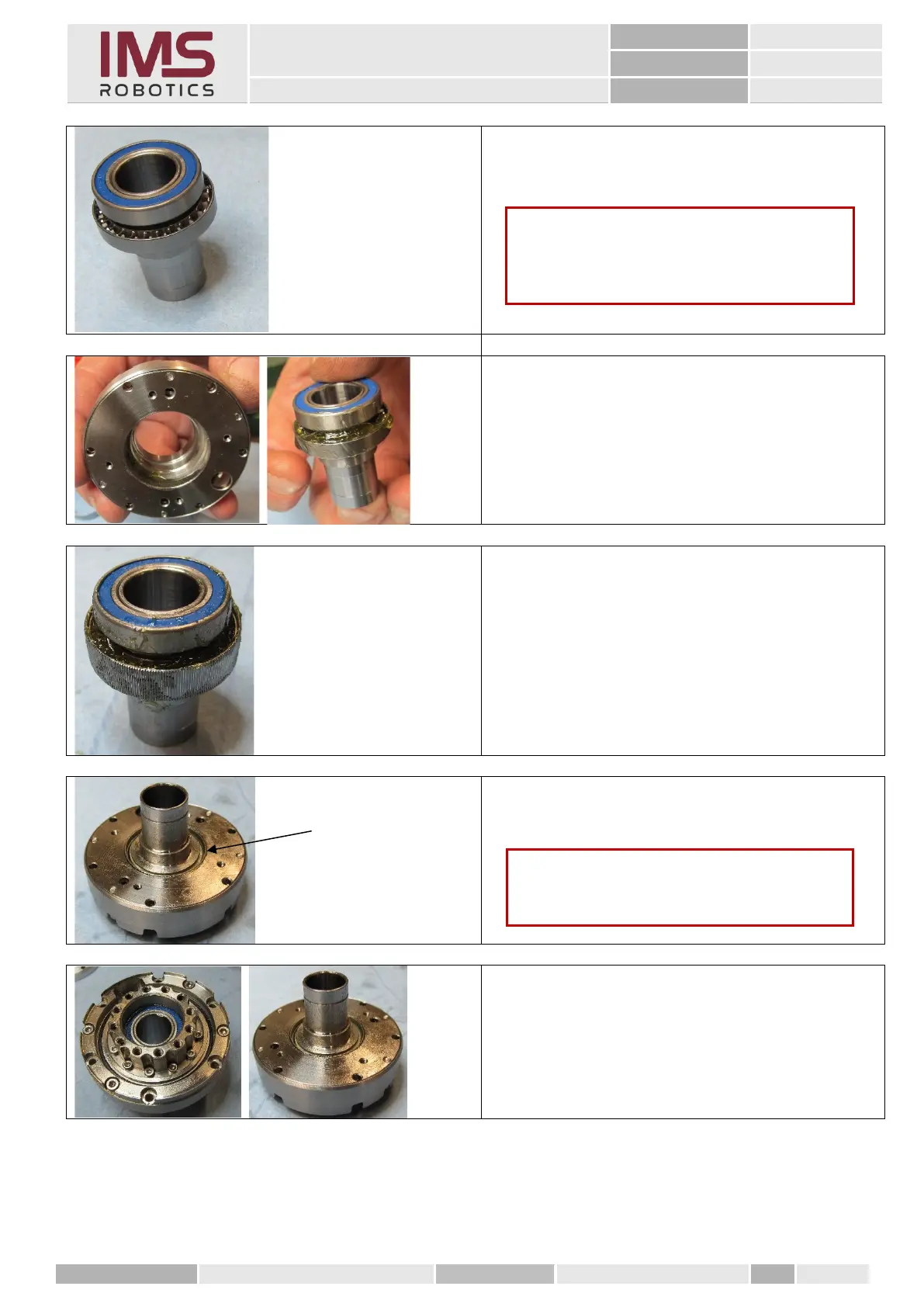

1. Slide the grooved ball bearing onto the
gear shaft.
2. Apply special "SK2" grease properly to
the grooves of the gear parts and ball
bearings of the gear shaft.
3. Slide the grooved ring over the ball
bearing of the gear shaft.
4. Insert the shaft prepared in this way
into the gearbox adapter.
Front and rear view of the finished gear part
Caution
The ball bearing has to be pushed evenly as
far as it goes on the shaft.
Do not tilt!
Caution
The grooved ring has to be flush with the
gearbox cover.
