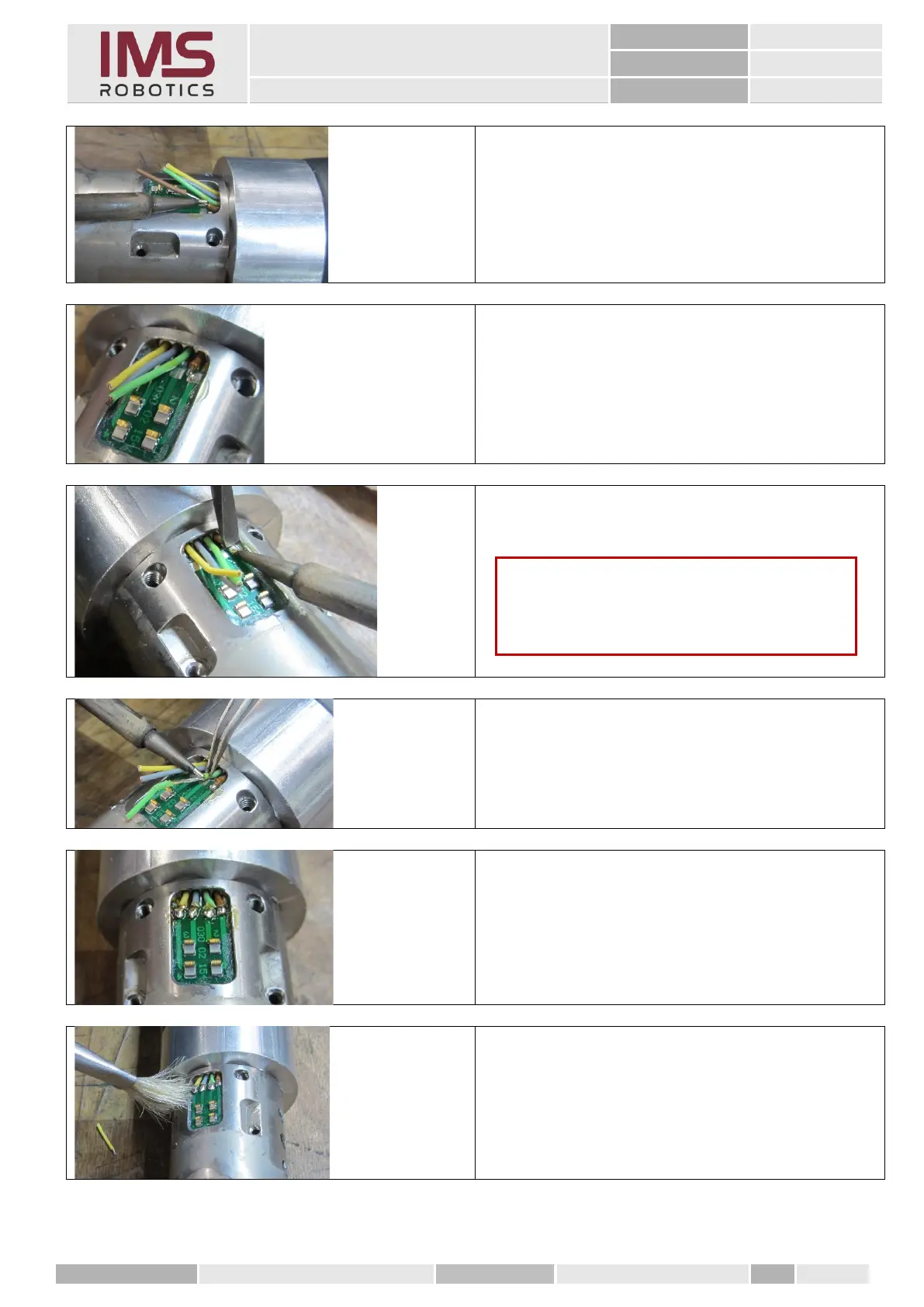

3. Tin the stripped section,
4. cut it to the correct length and
5. solder it carefully.
6. Repeat the same steps for the other
wires.
7. When soldering make sure that the tin
does not run too much and that the
contacts are connected by it.
8. Finally, clean the spring contact PCB
using spirit and remove the excess flux.
Caution
Use a slotted screwdriver as shown to fix the
wire and to protect the insulation from
excessive heat.
