4 - 4
IPN 074-505-P1E
IC6 Operating Manual
4.2 Source Set-Up Introduction
The IC6 provides the capability to configure the six source control channels. Each
source control channel is treated as an individual device.
Source Set-Up is initiated by moving the cursor to the Source heading on the Main
Menu and pressing MENU. You may return to the Main Menu display by pressing
MENU again.
4.2.1 Source Navigation
The Source Overview page shows the current configuration of all six sources.

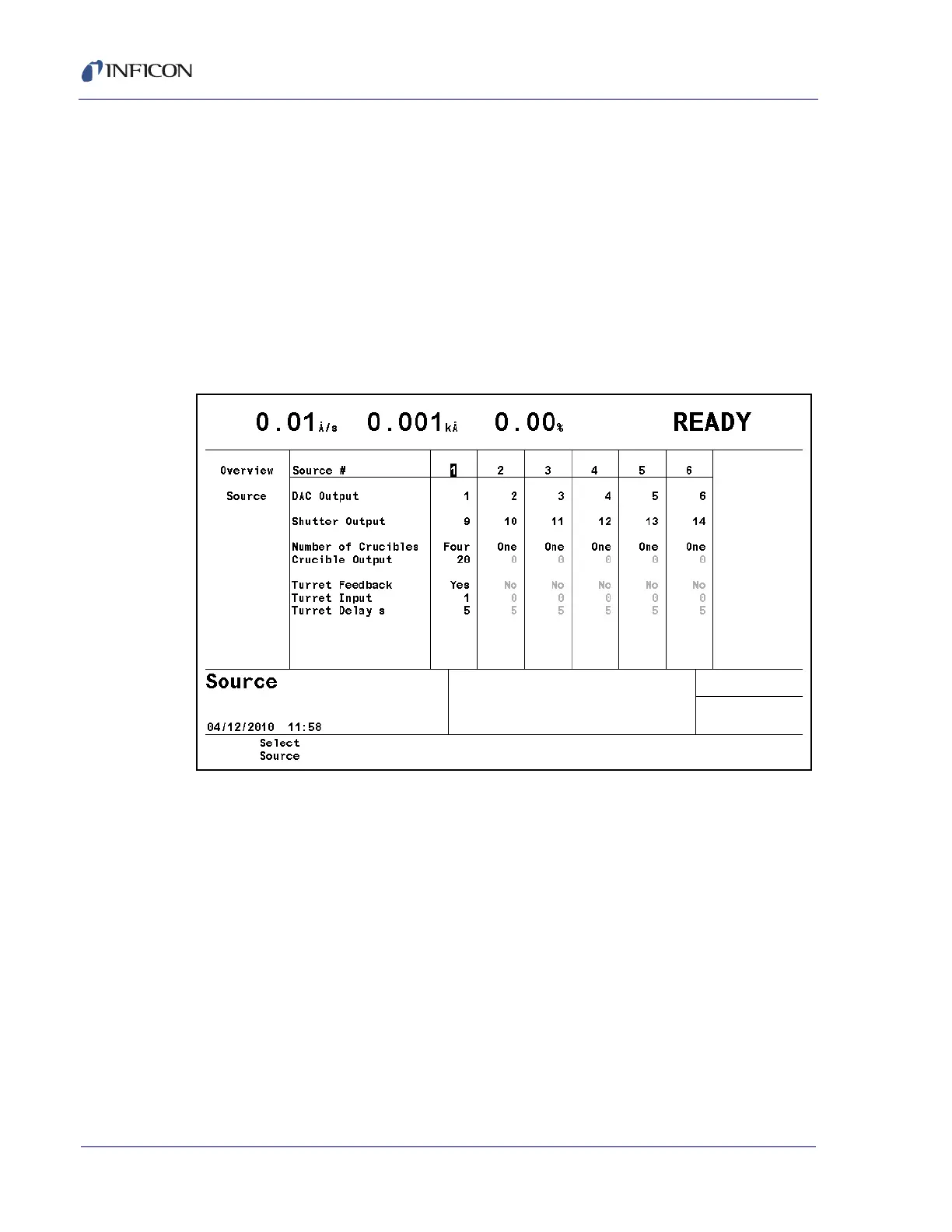

Figure 4-3 Source overview page
To make changes, use the left/right cursor to move to the appropriate source, then
press F1 Select Source to display that source’s screen
To Next Page
