8 - 1
IPN 074-505-P1E
IC6 Operating Manual
Chapter 8
Digital I/O
8.1 Digital I/O Screen
The Digital I/O screen is selected by moving the cursor on the Main Menu screen
to Digital I/O and pressing Menu. The I/O Map display for board 1 is shown in
Figure 8-3. Upon entry the cursor will be placed at the last referenced output or
input number.
8.2 All Input Page

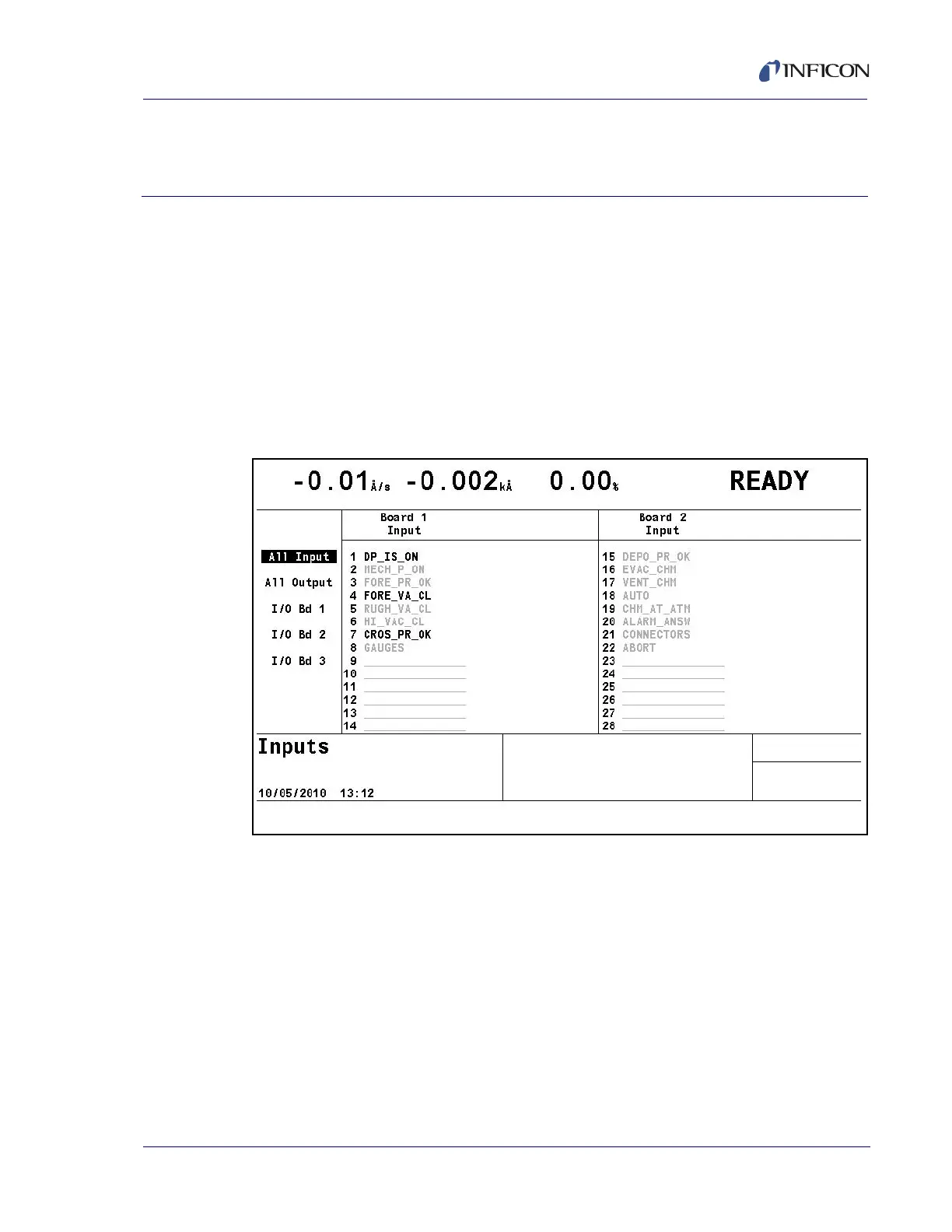

Figure 8-1 All input page
All input names assigned by the IC6 or by the user are shown to facilitate system
diagnosis. Darker font color designates inputs that are currently active.
